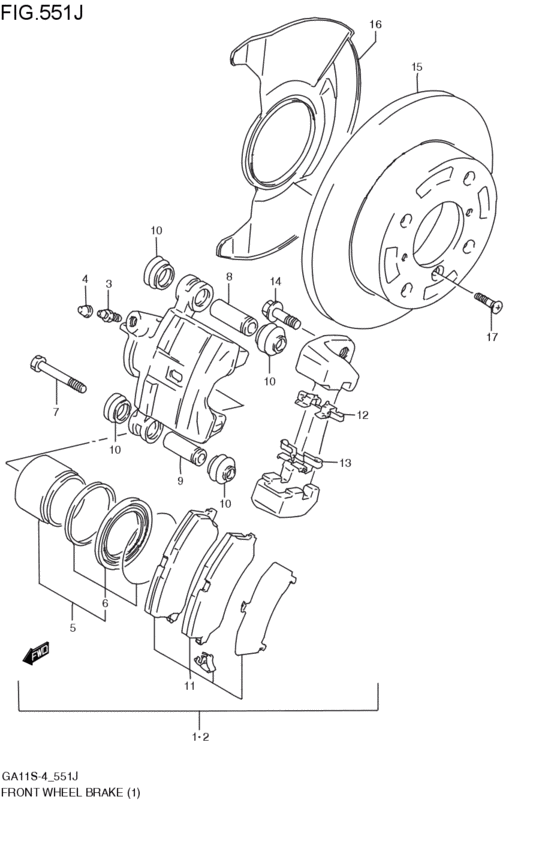

front wheel brakes (G13B:ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- FS1
- number of the gears
- 3AT
- air bag
- AB-N
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-60G01-000
キャリパアッシ,フロントブレーキ,ライト
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55101-60G01-000 |
— | ||
| replacements | |||||
|
1
|
1
55800-60G01-000 PAD SET,DISC BRAKEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55800-60G01-000 |
US $135.06 |
||
|
1
|
1
55101-60G03-999 CALIPER,FR BRAKE,RABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55101-60G03-999 |
US $277.84 |
||
|
2
|
2
55102-60G01-000
キャリパアッシ,フロントブレーキ,レフト
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55102-60G01-000 |
— | ||
| replacements | |||||
|
2
|
2
55800-60G01-000 PAD SET,DISC BRAKEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55800-60G01-000 |
US $135.06 |
||
|
2
|
2
55102-60G03-999
CALIPER,FR BRAKE,L
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55102-60G03-999 |
— | ||
|
3
|
3
55473-82030-000
Plug, bleeder
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
3
|
3
55151-78451-000 PLUG,BLEEDERABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55151-78451-000 |
from US $3.94 |
||
|
4
|
4
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55156-66310-000 |
from US $1.98 |
||
|
5
|
5
55840-60B10-000
Piston/seal set
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55840-60B10-000 |
— | ||
| replacements | |||||
|
5
|
5
55840-60B12-000
PISTON / SEAL SET
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55840-60B12-000 |
— | ||
|
5
|
5
55840-60B13-000 Piston / Seal SetABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55840-60B13-000 |
US $34.22 |
||
|
6
|
6
55830-60B10-000
Seal set,piston
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55830-60B10-000 |
— | ||
| replacements | |||||
|
6
|
6
55830-60B12-000
SEAL SET,PISTON
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55830-60B12-000 |
— | ||
|
6
|
6
55830-60B13-000 Seal Set,pistonABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55830-60B13-000 |
US $9.05 |
||
|
7
|
7
55164-86040-000 BOLT,BRAKE CALIPERABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55164-86040-000 |
US $3.90 |
||
|
8
|
8
55191-61G50-000 BUSH,CYLINDER SLIDEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55191-61G50-000 |
US $11.56 |
||
|
9
|
9
55191-61G00-000 BUSH,CYLINDER SLIDEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55191-61G00-000 |
US $10.05 |
||
|
10
|
10
55201-86040-000 BOOT,BUSH DUSTABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55201-86040-000 |
from US $2.40 |
||
|
11
|
11
55800-60G00-000
パッドセット,ブレーキ
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55800-60G00-000 |
— | ||
| replacement | |||||
|
11
|
11
55800-60G01-000 PAD SET,DISC BRAKEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55800-60G01-000 |
US $135.06 |
||
|
12
|
12
55234-60B00-000 PLATE,PAD SUPPORT NO.1ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55234-60B00-000 |
US $5.45 |
||
| replacement | |||||
|
12
|
12
55234-78R00-000 F/Disc pad shimABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55234-78R00-000 |
from US $6.26 |
||
|
13
|
13
55235-60B00-000 PLATE,PAD SUPPORT NO.2ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55235-60B00-000 |
US $6.19 |
||
| replacement | |||||
|
13
|
13
55235-78R00-000 Plate, pad support No.2ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55235-78R00-000 |
from US $6.28 |
||
|
14
|
14
09117-12006-000 BOLT(12X27)ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
09117-12006-000 |
US $1.92 |
||
|
15
|
15
55311-60G01-000 DISC,FR BRAKEABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55311-60G01-000 |
US $110.40 |
||
|
16
|
16
55321-60B40-000 COVER,BRAKE DISC DUSTABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
55321-60B40-000 |
US $80.80 |
||
|
17
|
17
02122-06163-000
Screw
ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
02122-0616B-000 SCREWScrew, intake pipe ABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
02122-0616B-000 |
from US $0.80 |
||
|
17
|
17
02122-0616A-000 SCREWABSミセッテイ; G13B:ABS-N; 1998-05-01~2000-02-01 |
02122-0616A-000 |
from US $0.76 |
||
