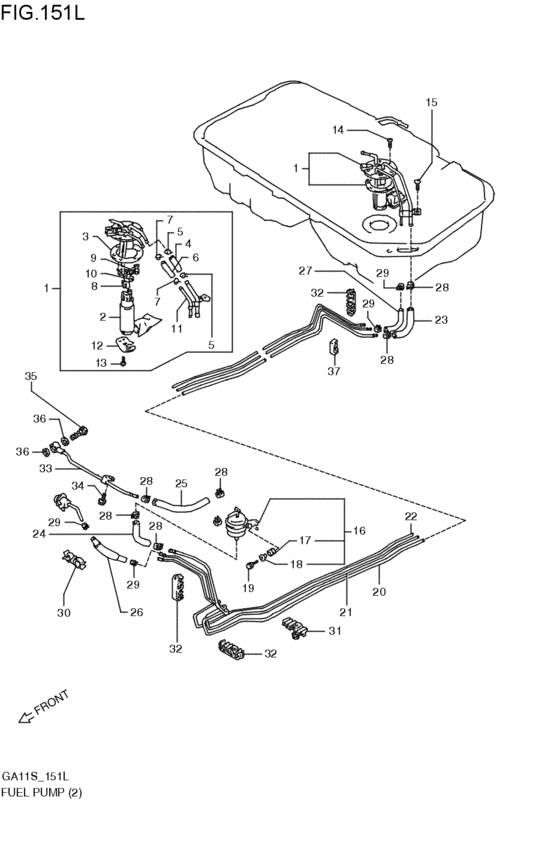

Fuel Pump (4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-60G10-000
ポンプアッシ,フューエル
4WD; 1994-12-01~1996-03-01 |
15100-60G10-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-60G11-000
PUMP ASSY,FUEL
4WD; 1994-12-01~1996-03-01 |
15100-60G11-000 |
— | ||
|
2
|
2
15110-61GT0-000
PUMP SET,FUEL
4WD; 1994-12-01~1996-03-01 |
15110-61GT0-000 |
— | ||
|
3
|
3
15111-56F00-000 GASKET,FUEL PUMP4WD; 1994-12-01~1996-03-01 |
15111-56F00-000 |
US $85.33 |
||
|
4
|
4
15143-60G10-000
Hose,fuel
4WD; 1994-12-01~1996-03-01 |
15143-60G10-000 |
— | ||
|
5
|
5
15144-60G00-000
CLIP
4WD; 1994-12-01~1996-03-01 |
15144-60G00-000 |
— | ||
|
6
|
6
15145-60G10-000
HOSE,FUEL
4WD; 1994-12-01~1996-03-01 |
15145-60G10-000 |
— | ||
|
7
|
7
15144-60G10-000
CLIP
4WD; 1994-12-01~1996-03-01 |
15144-60G10-000 |
— | ||
|
8
|
8
15141-60G10-000
ワイヤ
4WD; 1994-12-01~1996-03-01 |
15141-60G10-000 |
— | ||
|
9
|
9
15147-61B00-000
NUT
4WD; 1994-12-01~1996-03-01 |
15147-61B00-000 |
— | ||
|
10
|
10
15148-82400-000
NUT,LEAD WIRE
4WD; 1994-12-01~1996-03-01 |
15148-82400-000 |
— | ||
|
11
|
11
15146-60G10-000
TUBE
4WD; 1994-12-01~1996-03-01 |
15146-60G10-000 |
— | ||
|
12
|
12
15142-60G00-000 BRACKET4WD; 1994-12-01~1996-03-01 |
15142-60G00-000 |
US $3.86 |
||
|
13
|
13
02112-05083-000
Screw
4WD; 1994-12-01~1996-03-01 |
02112-05083-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0508A-000 SCREW4WD; 1994-12-01~1996-03-01 |
02112-0508A-000 |
from US $0.80 |
||
|
14
|
14
09136-05045-000 SCREW(5X10)4WD; 1994-12-01~1996-03-01 |
09136-05045-000 |
US $0.96 |
||
|
15
|
15
02142-05103-000
Screw 5x10
4WD; 1994-12-01~1996-03-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0510B-000 SCREWBolt 4WD; 1994-12-01~1996-03-01 |
02142-0510B-000 |
from US $0.76 |
||
|
16
|
16
15410-60G00-000
フィルタアッシ,フューエル
4WD; 1994-12-01~1996-03-01 |
15410-60G00-000 |
— | ||
| replacement | |||||
|
16
|
16
15410-62G00-000 FILTER ASSY,FUEL4WD; 1994-12-01~1996-03-01 |
15410-62G00-000 |
US $62.32 |
||
|
17
|
17
13878-51A00-000 CUSHION,ISC BRACKET4WD; 1994-12-01~1996-03-01 |
13878-51A00-000 |
US $3.09 |
||
|
18
|
18
09169-06067-000 WASHER4WD; 1994-12-01~1996-03-01 |
09169-06067-000 |
from US $5.36 |
||
|
19
|
19
01550-06203-000
Bolt
4WD; 1994-12-01~1996-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0620B-000 BOLTBolt, inspection cap 4WD; 1994-12-01~1996-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
15811-61G00-000
Pipe,fuel main
4WD:3DR; 1994-12-01~1996-03-01 |
15811-61G00-000 |
— | ||
|
21
|
21
89482-61G00-000
PIPE,EVAPORATOR MAIN
4WD:3DR; 1994-12-01~1996-03-01 |
89482-61G00-000 |
— | ||
|
22
|
22
15861-61G00-000
パイプ,フューエルリターン
4WD:3DR; 1994-12-01~1996-03-01 |
15861-61G00-000 |
— | ||
| replacement | |||||
|
22
|
22
15861-61G01-000
PIPE,FUEL RTN
4WD:3DR; 1994-12-01~1996-03-01 |
15861-61G01-000 |
— | ||
|
23
|
23
15817-60G00-000 HOSE,FUEL TANK TO FLOORタンク ツ- フロア; 4WD; 1994-12-01~1996-03-01 |
15817-60G00-000 |
US $34.59 |
||
|
24
|
24
15816-60G00-000
ホース,フューエル(パイプツーフィルタ)
パイプツ-フィルタ; 4WD; 1994-12-01~1996-03-01 |
15816-60G00-000 |
— | ||
| replacement | |||||
|
24
|
24
15816-60G01-000 HOSE,FUELパイプツ-フィルタ; 4WD; 1994-12-01~1996-03-01 |
15816-60G01-000 |
US $40.48 |
||
|
25
|
25
15815-60G00-000
ホース,フューエルメイン(エンジンルーム)
エンジンル-ム; 4WD; 1994-12-01~1996-03-01 |
15815-60G00-000 |
— | ||
| replacement | |||||
|
25
|
25
15815-62G00-000 HOSE,FUEL MAIN ENG ROOMエンジンル-ム; 4WD; 1994-12-01~1996-03-01 |
15815-62G00-000 |
US $28.70 |
||
|
26
|
26
15856-60G00-000
ホース,フューエルリターン(エンジンルーム)
エンジンル-ム; 4WD; 1994-12-01~1996-03-01 |
15856-60G00-000 |
— | ||
| replacement | |||||
|
26
|
26
15856-64GV0-000 HOSE,FUEL PIPE TO PUMPエンジンル-ム; 4WD; 1994-12-01~1996-03-01 |
15856-64GV0-000 |
US $39.38 |
||
|
27
|
27
15818-60G00-000 HOSE,FUEL RTN FLOOR TO TANKフロアツ-タンク; 4WD; 1994-12-01~1996-03-01 |
15818-60G00-000 |
US $43.06 |
||
|
28
|
28
09401-13410-000
Clip
4WD; 1994-12-01~1996-03-01 |
09401-13410-000 |
— | ||
| replacement | |||||
|
28
|
28
09401-12414-000 CLIP4WD; 1994-12-01~1996-03-01 |
09401-12414-000 |
from US $1.60 |
||
|
29
|
29
09401-11411-000 CLIP4WD; 1994-12-01~1996-03-01 |
09401-11411-000 |
from US $6.38 |
||
|
30
|
30
09408-00174-000 CLAMP4WD; 1994-12-01~1996-03-01 |
09408-00174-000 |
US $1.98 |
||
|
31
|
31
15881-60G00-000 CLAMP,FUEL PIPE FL4WD; 1994-12-01~1996-03-01 |
15881-60G00-000 |
US $4.27 |
||
|
32
|
32
15882-60G00-000
クランプ
4WD; 1994-12-01~1996-03-01 |
15882-60G00-000 |
— | ||
| replacement | |||||
|
32
|
32
15882-65G00-000 CLAMP,FUEL PIPE DASH4WD; 1994-12-01~1996-03-01 |
15882-65G00-000 |
US $2.94 |
||
|
33
|
33
15830-60G00-000
JOINT,FUEL MAIN
4WD; 1994-12-01~1996-03-01 |
15830-60G00-000 |
— | ||
|
34
|
34
09128-06078-000
ボルト,6X12
4WD; 1994-12-01~1996-03-01 |
09128-06078-000 |
— | ||
| replacement | |||||
|
34
|
34
09122-86002-000 SCREW(6X12)4WD; 1994-12-01~1996-03-01 |
09122-86002-000 |
US $11.80 |
||
|
35
|
35
09360-14012-000 BOLT,14X27Bolt, union (14x27) 4WD; 1994-12-01~1996-03-01 |
09360-14012-000 |
from US $6.88 |
||
|
36
|
36
15762-61B00-000
Gasket,union(14x19x0.84)
4WD; 1994-12-01~1996-03-01 |
15762-61B00-000 |
— | ||
| replacement | |||||
|
36
|
36
15762-61B01-000 GASKET,UNION(14X19X0.84)4WD; 1994-12-01~1996-03-01 |
15762-61B01-000 |
US $1.52 |
||
|
37
|
37
15888-63E00-000 RETAINER,34WD; 1994-12-01~1996-03-01 |
15888-63E00-000 |
US $2.65 |
||
