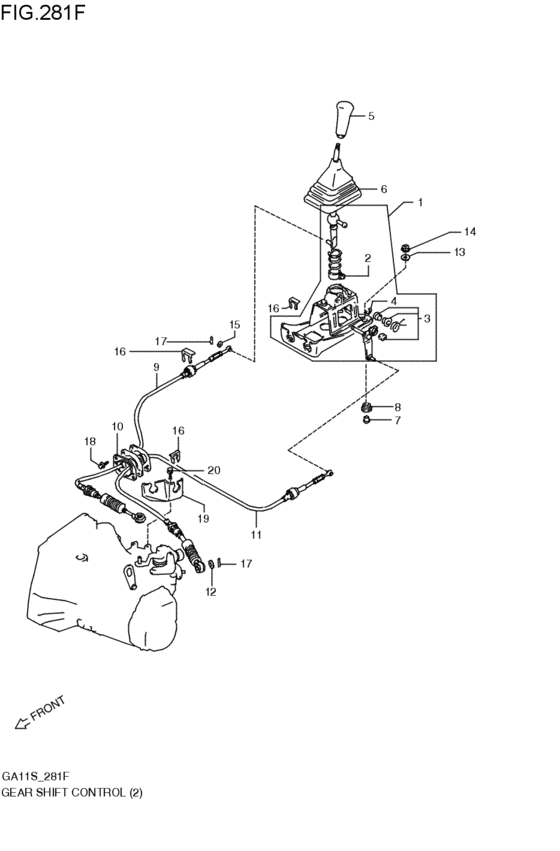

gearlever control (MT:4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-64E20-000
LEVER ASSY,GR SHF
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28101-64E20-000 |
— | ||
|
2
|
2
28169-70C00-000
SEAT SET,SHF LEVER
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28169-70C00-000 |
— | ||
|
3
|
3
28159-70C00-000
BUSH SET,SHF LEVER
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28159-70C00-000 |
— | ||
|
4
|
4
28154-70C00-000
Eリング,セレクトアーム
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28154-70C00-000 |
— | ||
|
5
|
5
28113-50E60-5ES KNOB,GEAR SHF CONT LVRブラック; MT:4WD; 1994-12-01~1996-03-01 |
28113-50E60-5ES |
US $73.60 |
||
|
6
|
6
28136-50F00-5FE
Boot,gear shf cont lever
ブラック; MT:4WD; 1994-12-01~1996-03-01 |
28136-50F00-5FE |
— | ||
|
7
|
7
28367-70C00-000
SPACER,GEAR CONT GUIDE CUSHION
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28367-70C00-000 |
— | ||
|
8
|
8
28368-70C00-000
Cushion
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28368-70C00-000 |
— | ||
|
9
|
9
28370-60G60-000
ケーブルアッシ,ギヤシフトコントロール
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28370-60G60-000 |
— | ||
| replacement | |||||
|
9
|
9
28370-60G61-000
CABLE ASSY,GEAR SHIFT CONTROL
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28370-60G61-000 |
— | ||
|
10
|
10
28375-70C00-000
COVER,T/A CONT CABLE GROMMET
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28375-70C00-000 |
— | ||
|
11
|
11
28380-60G60-000
ケーブルアッシ,ギヤセレクトコントロール
CHKK; MT:4WD; 1994-12-01~1996-03-01 |
28380-60G60-000 |
— | ||
| replacement | |||||
|
11
|
11
28380-60G61-000 CABLE ASSY,GEAR SHIFT CONTROLCHKK; MT:4WD; 1994-12-01~1996-03-01 |
28380-60G61-000 |
US $133.58 |
||
|
12
|
12
09160-08085-000
Washer
MT:4WD; 1994-12-01~1996-03-01 |
09160-08085-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:4WD; 1994-12-01~1996-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
13
|
13
09160-08085-000
Washer
MT:4WD; 1994-12-01~1996-03-01 |
09160-08085-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:4WD; 1994-12-01~1996-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
14
|
14
08316-10083-000
Nut
MT:4WD; 1994-12-01~1996-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUTMT:4WD; 1994-12-01~1996-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
09160-08097-000 WASHER(8.5X16X1.6)MT:4WD; 1994-12-01~1996-03-01 |
09160-08097-000 |
US $14 |
||
|
16
|
16
09383-19001-000 E RINGClip CHKK; MT:4WD; 1994-12-01~1996-03-01 |
09383-19001-000 |
from US $2.72 |
||
|
17
|
17
09385-08004-000 PIN,SNAPMT:4WD; 1994-12-01~1996-03-01 |
09385-08004-000 |
from US $1.28 |
||
|
18
|
18
01570-06163-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
18
|
18
01570-0616B-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01570-0616B-000 |
from US $0.80 |
||
|
18
|
18
01570-0616A-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01570-0616A-000 |
from US $0.80 |
||
|
19
|
19
28391-74C00-000
ブラケット,コントロールケーブル
MT:4WD; 1994-12-01~1996-03-01 |
28391-74C00-000 |
— | ||
| replacement | |||||
|
19
|
19
28390-54G61-000
Bracket,t/m cont cable
MT:4WD; 1994-12-01~1996-03-01 |
28390-54G61-000 |
— | ||
|
20
|
20
01570-10253-000
ボルト
MT:4WD; 1994-12-01~1996-03-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
20
|
20
01570-1025A-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01570-1025A-000 |
US $1.12 |
||
