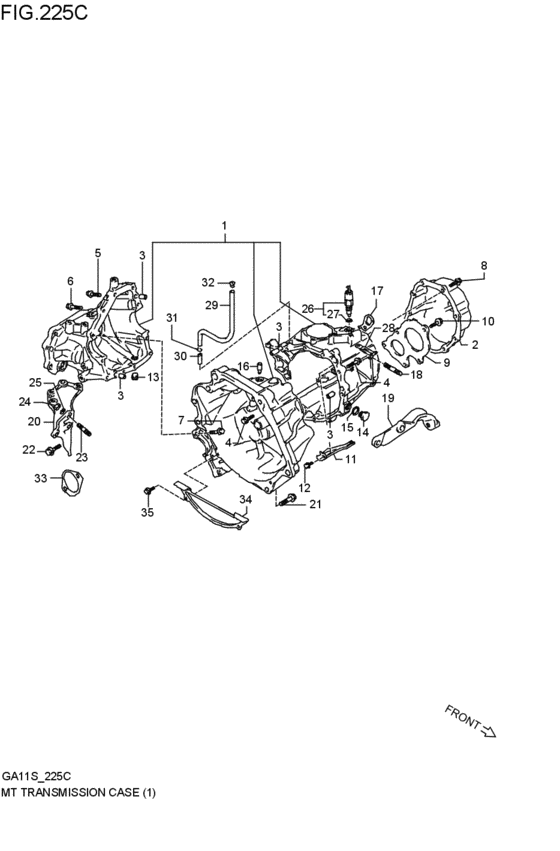

mt - transmission case (MT:4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-74C02-000
ケースアッシ,トランスアクスル
MT:4WD; 1994-12-01~1996-03-01 |
24700-74C02-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-74821-000
CASE SET,TRANSAXLE
MT:4WD; 1994-12-01~1996-03-01 |
24700-74821-000 |
— | ||
|
2
|
2
24730-70C01-000
カバー,トランスミッション,サイド
MT:4WD; 1994-12-01~1996-03-01 |
24730-70C01-000 |
— | ||
| replacement | |||||
|
2
|
2
24730-70C03-000
COVER,TRANSAXLE SIDE
MT:4WD; 1994-12-01~1996-03-01 |
24730-70C03-000 |
— | ||
|
3
|
3
09206-10014-000 PIN(6.4X10X20)MT:4WD; 1994-12-01~1996-03-01 |
09206-10014-000 |
US $21 |
||
|
4
|
4
01550-08403-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0840B-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01550-0840A-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
01550-08403-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0840B-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
5
|
5
01550-0840A-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
6
|
6
01550-08353-000
Bolt, rear
MT:4WD; 1994-12-01~1996-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
6
|
6
01550-0835A-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
01550-08303-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830B-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01550-0830B-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover MT:4WD; 1994-12-01~1996-03-01 |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
09135-06022-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
8
|
8
09135-06027-000 BOLT(6X12)MT:4WD; 1994-12-01~1996-03-01 |
09135-06027-000 |
from US $1.12 |
||
|
9
|
9
24725-70C01-000
プレート,レフトケース
MT:4WD; 1994-12-01~1996-03-01 |
24725-70C01-000 |
— | ||
| replacement | |||||
|
9
|
9
24725-59J20-000 PLATE,LEFT CASEMT:4WD; 1994-12-01~1996-03-01 |
24725-59J20-000 |
US $26.68 |
||
|
10
|
10
09117-08050-000 BOLT(8X20)MT:4WD; 1994-12-01~1996-03-01 |
09117-08050-000 |
US $2.24 |
||
|
11
|
11
24810-70C00-000 GUTTER,INPUT OILMT:4WD; 1994-12-01~1996-03-01 |
24810-70C00-000 |
US $5.30 |
||
|
12
|
12
09103-06083-000
Bolt (6x12)
MT:4WD; 1994-12-01~1996-03-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-06285-000 BOLT(6X12)Bolt (6x12) MT:4WD; 1994-12-01~1996-03-01 |
09103-06285-000 |
from US $1.28 |
||
|
13
|
13
09246-16010-000 PLUGマグネットツキ; MT:4WD; 1994-12-01~1996-03-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
13
|
13
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; MT:4WD; 1994-12-01~1996-03-01 |
09246-16021-000 |
from US $4.01 |
||
|
14
|
14
09247-18003-000 PLUGMT:4WD; 1994-12-01~1996-03-01 |
09247-18003-000 |
US $1.76 |
||
|
15
|
15
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) MT:4WD; 1994-12-01~1996-03-01 |
09160-18018-000 |
US $0.96 |
||
|
16
|
16
24821-09001-000 PLUG,T/M BREATHERPlug, breather MT:4WD; 1994-12-01~1996-03-01 |
24821-09001-000 |
from US $3.04 |
||
|
17
|
17
11851-62B00-000 HOOKMT:4WD; 1994-12-01~1996-03-01 |
11851-62B00-000 |
US $5.02 |
||
|
18
|
18
09108-10106-000 BOLT,STUDMT:4WD; 1994-12-01~1996-03-01 |
09108-10106-000 |
from US $6.38 |
||
|
19
|
19
24791-70C00-000
STIFFENER,TRANSAXLE CASE LWR
MT:4WD; 1994-12-01~1996-03-01 |
24791-70C00-000 |
— | ||
|
20
|
20
24792-74C00-000
スチフナ,トランスミッションケース,ライト
MT:4WD; 1994-12-01~1996-03-01 |
24792-74C00-000 |
— | ||
|
21
|
21
01550-10403-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1040B-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-1040B-000 |
from US $3.74 |
||
|
21
|
21
01550-1040A-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-1040A-000 |
from US $1.12 |
||
|
22
|
22
01570-10303-000
Bolt
MT:4WD; 1994-12-01~1996-03-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
22
|
22
01570-1030A-000 BoltMT:4WD; 1994-12-01~1996-03-01 |
01570-1030A-000 |
from US $1.12 |
||
|
23
|
23
01421-10253-000
Stud bolt
MT:4WD; 1994-12-01~1996-03-01 |
01421-10253-000 |
— | ||
| replacement | |||||
|
23
|
23
01421-1025B-000 BOLT,STUDMT:4WD; 1994-12-01~1996-03-01 |
01421-1025B-000 |
from US $5.07 |
||
|
24
|
24
08310-00103-000
Nut
MT:4WD; 1994-12-01~1996-03-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUTMT:4WD; 1994-12-01~1996-03-01 |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUTMT:4WD; 1994-12-01~1996-03-01 |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
08321-01103-000
Washer
MT:4WD; 1994-12-01~1996-03-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT:4WD; 1994-12-01~1996-03-01 |
08321-0110B-000 |
from US $0.80 |
||
|
25
|
25
08321-0110A-000 WASHER,LOCKMT:4WD; 1994-12-01~1996-03-01 |
08321-0110A-000 |
from US $0.80 |
||
|
26
|
26
37610-70B11-000 SWITCH ASSY,BACK UP LAMPMT:4WD; 1994-12-01~1996-03-01 |
37610-70B11-000 |
from US $28.94 |
||
|
27
|
27
09280-11002-000 O RING(D:1.9,ID:11.4)MT:4WD; 1994-12-01~1996-03-01 |
09280-11002-000 |
from US $0.88 |
||
|
28
|
28
09404-08419-000 CLAMP(L:80)MT:4WD; 1994-12-01~1996-03-01 |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
28
|
28
09404-08422-000 Clamp,wiring HarnessMT:4WD; 1994-12-01~1996-03-01 |
09404-08422-000 |
from US $3.62 |
||
|
29
|
29
24825-74C00-000 HOSE,BREATHERMT:4WD; 1994-12-01~1996-03-01 |
24825-74C00-000 |
US $5.70 |
||
|
30
|
30
09341-06002-000 UNIONMT:4WD; 1994-12-01~1996-03-01 |
09341-06002-000 |
US $12.10 |
||
|
31
|
31
24829-60G60-000
クランプ,ブリーザホース
MT:4WD; 1994-12-01~1996-03-01 |
24829-60G60-000 |
— | ||
| replacement | |||||
|
31
|
31
09404-08206-000 CLAMP(L:65 T:0.8)Clamp MT:4WD; 1994-12-01~1996-03-01 |
09404-08206-000 |
from US $1.22 |
||
|
32
|
32
46543-60A00-000
プラグ,ブリーザ
MT:4WD; 1994-12-01~1996-03-01 |
46543-60A00-000 |
— | ||
| replacement | |||||
|
32
|
32
27991-65D01-000 PLUG,BREATHERMT:4WD; 1994-12-01~1996-03-01 |
27991-65D01-000 |
from US $1.92 |
||
|
33
|
33
11311-71C00-000 PLATE,STARTING MOTORMT:4WD; 1994-12-01~1996-03-01 |
11311-71C00-000 |
US $4.34 |
||
|
34
|
34
11321-71C01-000 PLATE,CLUTCH HSG LOWERMT:4WD; 1994-12-01~1996-03-01 |
11321-71C01-000 |
US $8.13 |
||
|
35
|
35
01550-06103-000
Bolt, front
MT:4WD; 1994-12-01~1996-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0610B-000 BoltBolt MT:4WD; 1994-12-01~1996-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
35
|
35
01550-0610A-000 BOLTMT:4WD; 1994-12-01~1996-03-01 |
01550-0610A-000 |
from US $0.80 |
||
