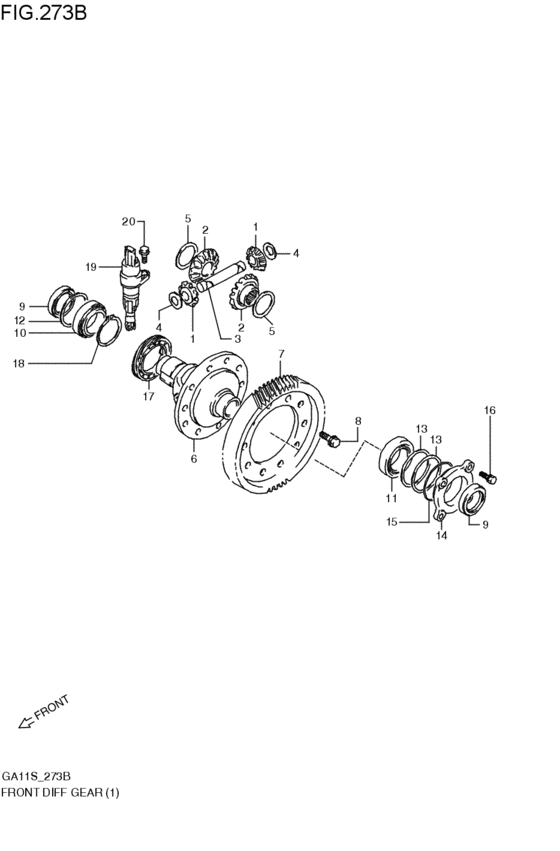

フロントデファレンシャルギヤ (5MT:4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-70C00-000 PINION,DIFFERENTIAL5MT:4WD; 1994-12-01~1996-03-01 |
27331-70C00-000 |
US $33.60 |
||
|
2
|
2
27341-70C00-000
ギヤ,ディファレンシャルサイド
5MT:4WD; 1994-12-01~1996-03-01 |
27341-70C00-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-70C01-000 GEAR,DIFF SIDE5MT:4WD; 1994-12-01~1996-03-01 |
27341-70C01-000 |
US $85.60 |
||
|
3
|
3
27351-74C02-000 SHAFT,DIFF SIDE PINION5MT:4WD; 1994-12-01~1996-03-01 |
27351-74C02-000 |
US $45.60 |
||
|
4
|
4
09164-17006-000 WASHER(17.3X32X1)5MT:4WD; 1994-12-01~1996-03-01 |
09164-17006-000 |
from US $1.60 |
||
|
5
|
5
09181-38006-000
シム,38X50X0.9
5MT:4WD; 1994-12-01~1996-03-01 |
09181-38006-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-38163-000 SHIM(38X50X0.85)Shim (t:0.85) 5MT:4WD; 1994-12-01~1996-03-01 |
09181-38163-000 |
from US $4.03 |
||
|
5
|
5
09181-38008-000
シム,38X50X1.0
5MT:4WD; 1994-12-01~1996-03-01 |
09181-38008-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-38165-000 SHIM(38X50X0.95)Shim (t:0.95) 5MT:4WD; 1994-12-01~1996-03-01 |
09181-38165-000 |
US $26.90 |
||
|
5
|
5
09181-38010-000
シム,38X50X1.1
5MT:4WD; 1994-12-01~1996-03-01 |
09181-38010-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-38169-000 SHIM(38X50X1.05)Shim (t:1.05) 5MT:4WD; 1994-12-01~1996-03-01 |
09181-38169-000 |
US $32 |
||
|
5
|
5
09181-38012-000
シム,38X50X1.2
5MT:4WD; 1994-12-01~1996-03-01 |
09181-38012-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-38174-000 SHIM(38X50X1.15)Shim (t:1.15) 5MT:4WD; 1994-12-01~1996-03-01 |
09181-38174-000 |
US $29.10 |
||
|
6
|
6
27411-74C01-000
CASE,FR DIFF
5MT:4WD; 1994-12-01~1996-03-01 |
27411-74C01-000 |
— | ||
|
7
|
7
27511-74C10-000
Gear,final
5MT:4WD; 1994-12-01~1996-03-01 |
27511-74C10-000 |
— | ||
| replacement | |||||
|
7
|
7
27511-74C11-000 GEAR,FINAL5MT:4WD; 1994-12-01~1996-03-01 |
27511-74C11-000 |
US $176.64 |
||
|
8
|
8
09103-10184-000 BOLT(10X25)5MT:4WD; 1994-12-01~1996-03-01 |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
8
|
8
09103-10253-000
Bolt,10x28
5MT:4WD; 1994-12-01~1996-03-01 |
09103-10253-000 |
— | ||
|
9
|
9
27432-70C00-000 SEAL,DIFF SIDE OIL5MT:4WD; 1994-12-01~1996-03-01 |
27432-70C00-000 |
from US $9.45 |
||
|
10
|
10
09265-38001-000 BEARING(38X63X17)5MT:4WD; 1994-12-01~1996-03-01 |
09265-38001-000 |
from US $37.24 |
||
|
11
|
11
09265-40002-000 BEARING(40X68X19)5MT:4WD; 1994-12-01~1996-03-01 |
09265-40002-000 |
US $40 |
||
|
12
|
12
29541-74C00-000 SHIM,DIFF SIDE BRG T:0.60CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-74C00-000 |
US $4.56 |
||
|
12
|
12
29541-74C20-000 SHIM,DIFF SIDE BRG T:0.66CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-74C20-000 |
US $4.56 |
||
|
12
|
12
29541-74C40-000 SHIM,DIFF SIDE BRG T:0.72CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-74C40-000 |
US $4.56 |
||
|
12
|
12
29541-74C60-000 SHIM,DIFF SIDE BRG T:0.78CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-74C60-000 |
US $4.56 |
||
|
12
|
12
29541-74C80-000 SHIM,DIFF SIDE BRG T:0.84CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-74C80-000 |
US $4.56 |
||
|
12
|
12
29541-75C00-000 SHIM,DIFF SIDE BRG T:0.30CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-75C00-000 |
from US $2.21 |
||
|
13
|
13
29541-76C00-000 SHIM,DIFF SIDE L BRG T:0.60CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-76C00-000 |
US $9.64 |
||
|
13
|
13
29541-76C20-000 SHIM,DIFF SIDE L BRG T:0.66CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-76C20-000 |
US $9.64 |
||
|
13
|
13
29541-76C40-000 SHIM,DIFF SIDE L BRG T:0.72CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-76C40-000 |
US $9.64 |
||
|
13
|
13
29541-76C60-000 SHIM,DIFF SIDE L BRG T:0.78CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-76C60-000 |
US $9.64 |
||
|
13
|
13
29541-76C80-000 SHIM,DIFF SIDE L BRG T:0.84CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-76C80-000 |
US $9.64 |
||
|
13
|
13
29541-77C00-000 SHIM,DIFF SIDE L BRG T:0.30CHKK; 5MT:4WD; 1994-12-01~1996-03-01 |
29541-77C00-000 |
US $9.64 |
||
|
14
|
14
27421-74C01-000 RETAINER,DIFF SIDE BRG5MT:4WD; 1994-12-01~1996-03-01 |
27421-74C01-000 |
US $36.80 |
||
|
15
|
15
09280-63004-000 O RING(D:2.4,ID:62.6)O ring (d:2.4,id:62.6) 5MT:4WD; 1994-12-01~1996-03-01 |
09280-63004-000 |
from US $5.92 |
||
|
16
|
16
01550-08203-000
Bolt
5MT:4WD; 1994-12-01~1996-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 Bolt5MT:4WD; 1994-12-01~1996-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BOLTBolt, funnel bracket 5MT:4WD; 1994-12-01~1996-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
26121-74C00-000
GEAR,SPDOM DRIVE
5MT:4WD; 1994-12-01~1996-03-01 |
26121-74C00-000 |
— | ||
|
18
|
18
08331-31506-000
Circlip
5MT:4WD; 1994-12-01~1996-03-01 |
08331-31506-000 |
— | ||
| replacement | |||||
|
18
|
18
08331-31509-000 CIRCLIP5MT:4WD; 1994-12-01~1996-03-01 |
08331-31509-000 |
from US $2.54 |
||
|
19
|
19
26130-60G40-000
GEAR,SPDOM DRIVEN
5MT:4WD; 1994-12-01~1996-03-01 |
26130-60G40-000 |
— | ||
|
20
|
20
01550-06163-000
Bolt
5MT:4WD; 1994-12-01~1996-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0616B-000 BOLT5MT:4WD; 1994-12-01~1996-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
20
|
20
01550-0616A-000 BOLT5MT:4WD; 1994-12-01~1996-03-01 |
01550-0616A-000 |
from US $0.76 |
||
