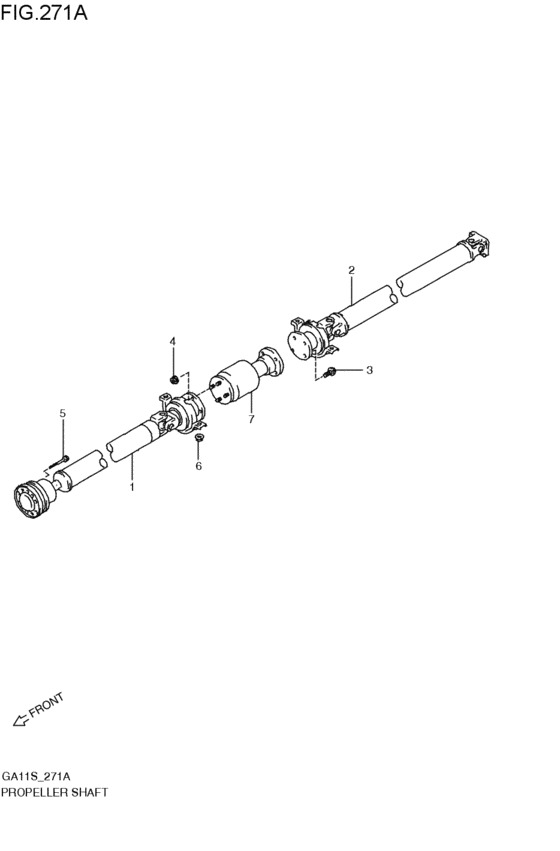

propeller shaft (4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-60G00-000
シャフトアッシ,プロペラ,NO.1
4WD; 1994-12-01~1996-03-01 |
27101-60G00-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-60G03-000 SHAFT ASSY,PROPELLER NO.14WD; 1994-12-01~1996-03-01 |
27101-60G03-000 |
US $763.84 |
||
|
2
|
2
27102-60G10-000
シャフトアッシ,プロペラ,NO.2
4WD:3DR; 1994-12-01~1996-03-01 |
27102-60G10-000 |
— | ||
|
3
|
3
09117-08095-000
Bolt (8x20)
4WD; 1994-12-01~1996-03-01 |
09117-08095-000 |
— | ||
| replacement | |||||
|
3
|
3
09117-08103-000 BOLT(8X18)4WD; 1994-12-01~1996-03-01 |
09117-08103-000 |
from US $1.69 |
||
|
4
|
4
09159-08075-000 NUT4WD; 1994-12-01~1996-03-01 |
09159-08075-000 |
US $0.91 |
||
|
5
|
5
07130-08503-000
Bolt
4WD; 1994-12-01~1996-03-01 |
07130-08503-000 |
— | ||
| replacement | |||||
|
5
|
5
07130-0850A-000 BOLT4WD; 1994-12-01~1996-03-01 |
07130-0850A-000 |
from US $1.60 |
||
|
6
|
6
08316-10103-000
Nut
4WD; 1994-12-01~1996-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1010B-000 NUT4WD; 1994-12-01~1996-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
7
|
7
27610-60G00-000
カップリング,RBC
4WD; 1994-12-01~1996-03-01 |
27610-60G00-000 |
— | ||
| replacement | |||||
|
7
|
7
27610-60G0V-000 COUPLING4WD; 1994-12-01~1996-03-01 |
27610-60G0V-000 |
US $851.84 |
||
