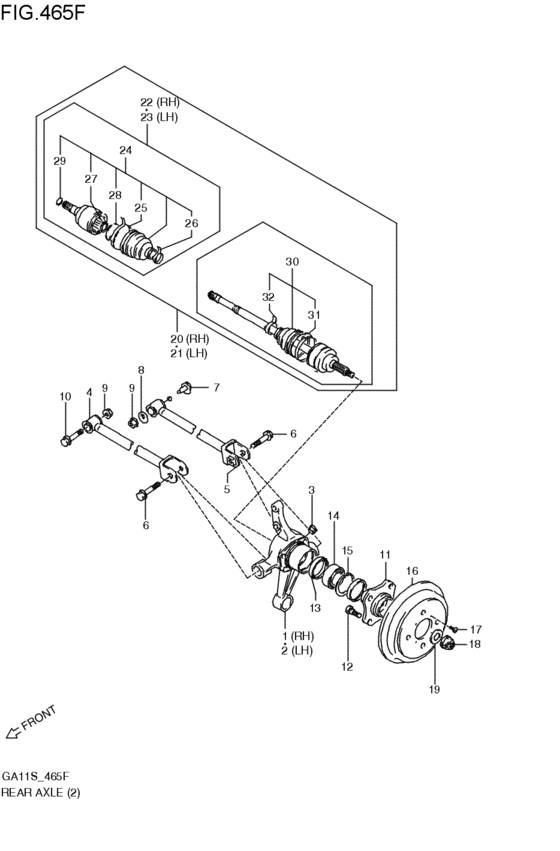

rear axle (4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-60G30-000
ナックルアッシ,リヤサスペンション,ライト
4WD; 1994-12-01~1996-03-01 |
46110-60G30-000 |
— | ||
| replacement | |||||
|
1
|
1
46110-60G31-000
KNUCKLE ASSY,RR SPNSN,R
4WD; 1994-12-01~1996-03-01 |
46110-60G31-000 |
— | ||
|
2
|
2
46150-60G30-000
ナックルアッシ,リヤサスペンション,レフト
4WD; 1994-12-01~1996-03-01 |
46150-60G30-000 |
— | ||
| replacement | |||||
|
2
|
2
46150-60G31-000
KNUCKLE ASSY,RR SPNSN,L
4WD; 1994-12-01~1996-03-01 |
46150-60G31-000 |
— | ||
|
3
|
3
09250-19001-000 CAP(OD:20.5)4WD; 1994-12-01~1996-03-01 |
09250-19001-000 |
US $27.20 |
||
|
4
|
4
46300-60G10-000
ロッドアッシ,リヤコントロール
4WD; 1994-12-01~1996-03-01 |
46300-60G10-000 |
— | ||
| replacement | |||||
|
4
|
4
46300-60G21-000 ROD ASSY,REAR CONTROL4WD; 1994-12-01~1996-03-01 |
46300-60G21-000 |
US $113.60 |
||
|
5
|
5
46300-60G10-000
ロッドアッシ,リヤコントロール
ABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
46300-60G10-000 |
— | ||
| replacement | |||||
|
5
|
5
46300-60G21-000 ROD ASSY,REAR CONTROLABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
46300-60G21-000 |
US $113.60 |
||
|
5
|
5
46300-60G20-000
ロッドアッシ,リヤコントロール
ABSシヨウ; 4WD; 1994-12-01~1996-03-01 |
46300-60G20-000 |
— | ||
| replacement | |||||
|
5
|
5
46300-60G21-000 ROD ASSY,REAR CONTROLABSシヨウ; 4WD; 1994-12-01~1996-03-01 |
46300-60G21-000 |
US $113.60 |
||
|
6
|
6
46333-60G00-000
ボルト,リヤトレーリングロッド,リヤ
4WD; 1994-12-01~1996-03-01 |
46333-60G00-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-12065-000 BOLT(12X62)4WD; 1994-12-01~1996-03-01 |
09103-12065-000 |
from US $2.40 |
||
|
7
|
7
46330-60E00-000
ボルト,リヤコントロールロッド
4WD; 1994-12-01~1996-03-01 |
46330-60E00-000 |
— | ||
| replacement | |||||
|
7
|
7
46330-60E01-000 BOLT,RR CONTROL ROD4WD; 1994-12-01~1996-03-01 |
46330-60E01-000 |
from US $8.16 |
||
|
8
|
8
46333-60E00-000 WASHER,CONTROL ROD INR4WD; 1994-12-01~1996-03-01 |
46333-60E00-000 |
from US $1.92 |
||
|
9
|
9
08316-10123-000
Nut
4WD; 1994-12-01~1996-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1012A-000 NUT4WD; 1994-12-01~1996-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
10
|
10
09100-12057-000 BOLT(12X61)4WD; 1994-12-01~1996-03-01 |
09100-12057-000 |
from US $2.72 |
||
|
11
|
11
43421-60G40-000
ハブ,リヤホイール
4WD; 1994-12-01~1996-03-01 |
43421-60G40-000 |
— | ||
| replacement | |||||
|
11
|
11
43420-60812-000 HUB,RR WHL4WD; 1994-12-01~1996-03-01 |
43420-60812-000 |
from US $141.46 |
||
|
12
|
12
09119-12012-000 BOLT(12X38)4WD; 1994-12-01~1996-03-01 |
09119-12012-000 |
US $2.72 |
||
|
13
|
13
43431-60B20-000 SEAL,FR WHL BRG INNER OIL4WD; 1994-12-01~1996-03-01 |
43431-60B20-000 |
from US $14.67 |
||
|
14
|
14
09267-35003-000 BEARING(35X61X31)4WD; 1994-12-01~1996-03-01 |
09267-35003-000 |
from US $95.76 |
||
|
15
|
15
08331-41626-000
Ring 62mm
4WD; 1994-12-01~1996-03-01 |
08331-41626-000 |
— | ||
| replacement | |||||
|
15
|
15
08331-4162A-000 CIRCLIP4WD; 1994-12-01~1996-03-01 |
08331-4162A-000 |
from US $2.05 |
||
|
16
|
16
43511-60G00-000
ドラム,リヤブレーキ
4WD; 1994-12-01~1996-03-01 |
43511-60G00-000 |
— | ||
| replacement | |||||
|
16
|
16
43511-60G10-000 DRUM,RR BRAKE4WD; 1994-12-01~1996-03-01 |
43511-60G10-000 |
US $135.42 |
||
|
17
|
17
02122-06163-000
Screw
4WD; 1994-12-01~1996-03-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
02122-0616B-000 SCREWScrew, intake pipe 4WD; 1994-12-01~1996-03-01 |
02122-0616B-000 |
from US $0.80 |
||
|
17
|
17
02122-0616A-000 SCREW4WD; 1994-12-01~1996-03-01 |
02122-0616A-000 |
from US $0.76 |
||
|
18
|
18
09159-18008-000 NUT4WD; 1994-12-01~1996-03-01 |
09159-18008-000 |
from US $4.10 |
||
|
19
|
19
09160-18017-000 WASHER(18X35X4)4WD; 1994-12-01~1996-03-01 |
09160-18017-000 |
from US $0.91 |
||
|
20
|
20
44105-60GE0-000
シャフトアッシ,リヤドライブ,ライト
ABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
44105-60GE0-000 |
— | ||
| replacement | |||||
|
20
|
20
44105-60G60-000
SHAFT ASSY,REAR DRIVE,R
ABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
44105-60G60-000 |
— | ||
|
20
|
20
44105-60G60-000
SHAFT ASSY,REAR DRIVE,R
ABSシヨウ; 4WD; 1994-12-01~1996-03-01 |
44105-60G60-000 |
— | ||
|
21
|
21
44106-60GE0-000
シャフトアッシ,リヤドライブ,レフト
ABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
44106-60GE0-000 |
— | ||
| replacement | |||||
|
21
|
21
44106-60G60-000
SHAFT ASSY,REAR DRIVE,L
ABSミセッテイ; 4WD; 1994-12-01~1996-03-01 |
44106-60G60-000 |
— | ||
|
21
|
21
44106-60G60-000
SHAFT ASSY,REAR DRIVE,L
ABSシヨウ; 4WD; 1994-12-01~1996-03-01 |
44106-60G60-000 |
— | ||
|
22
|
22
44114-61G60-000
ジョイントアッシ,ディファレンシャルサイド,ライト
4WD; 1994-12-01~1996-03-01 |
44114-61G60-000 |
— | ||
| replacement | |||||
|
22
|
22
44114-61G61-000
JOINT ASSY,DIFF SIDE,R
4WD; 1994-12-01~1996-03-01 |
44114-61G61-000 |
— | ||
|
23
|
23
44115-61G60-000
ジョイントアッシ,ディファレンシャルサイド,レフト
4WD; 1994-12-01~1996-03-01 |
44115-61G60-000 |
— | ||
| replacement | |||||
|
23
|
23
44115-61G61-000
JOINT ASSY,DIFF SIDE,L
4WD; 1994-12-01~1996-03-01 |
44115-61G61-000 |
— | ||
|
24
|
24
44119-63B90-000 BOOT SET,DIFF SIDE4WD; 1994-12-01~1996-03-01 |
44119-63B90-000 |
US $88.93 |
||
|
25
|
25
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 1994-12-01~1996-03-01 |
44122-86010-000 |
from US $9.02 |
||
|
26
|
26
44124-86011-000 BAND,BOOT4WD; 1994-12-01~1996-03-01 |
44124-86011-000 |
US $6.81 |
||
|
27
|
27
44111-78010-000 RING,SNAP4WD; 1994-12-01~1996-03-01 |
44111-78010-000 |
US $2.80 |
||
|
28
|
28
44112-78010-000 CIRCLIP4WD; 1994-12-01~1996-03-01 |
44112-78010-000 |
from US $5.26 |
||
|
29
|
29
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD; 1994-12-01~1996-03-01 |
09381-24001-000 |
from US $1.60 |
||
|
30
|
30
44118-69D01-000
BOOT SET
4WD; 1994-12-01~1996-03-01 |
44118-69D01-000 |
— | ||
| replacement | |||||
|
30
|
30
44118-69D02-000 BOOT SET4WD; 1994-12-01~1996-03-01 |
44118-69D02-000 |
US $145.92 |
||
|
31
|
31
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 1994-12-01~1996-03-01 |
44122-86010-000 |
from US $9.02 |
||
|
32
|
32
44124-86011-000 BAND,BOOT4WD; 1994-12-01~1996-03-01 |
44124-86011-000 |
US $6.81 |
||
