transfer gear (4WD; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS

Year
1994 - 1996
Sales region
Japan
Engine
G15A
drive
4WD
transmission
MT
Number of doors
3DR
grade
S
number of the gears
5MT

Difficulties in parts search?

Parts list

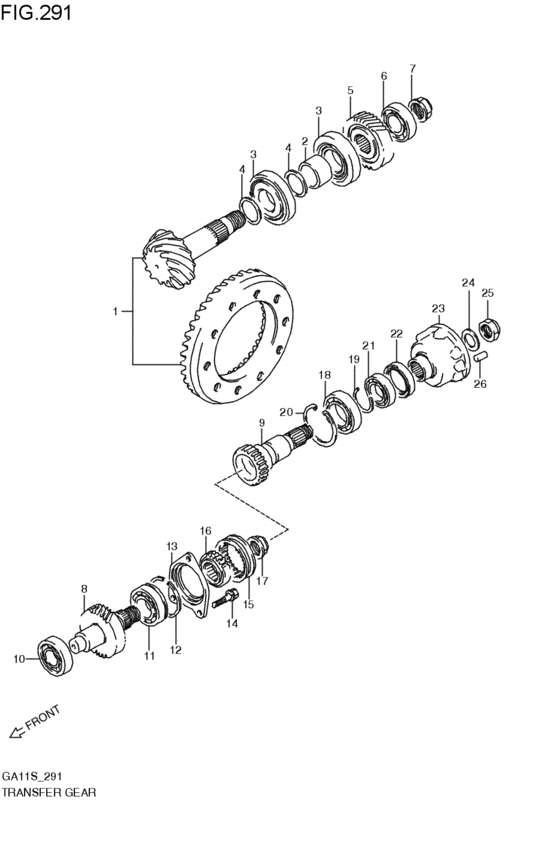

transfer gear

Difficulties in parts search?

transfer gear
Description OEM Part # Price
1
1

27300-74860-000

BEVEL GEAR SET

4WD; 1994-12-01~1996-03-01

27300-74860-000

US $626.56

2
2

27315-74C00-000

SPACER,T/F PINION

4WD; 1994-12-01~1996-03-01

27315-74C00-000

US $18.18

3
3

09265-30010-000

BEARING(30X72X20.75)

4WD; 1994-12-01~1996-03-01

09265-30010-000

US $45.60

4
4

29521-74C00-000

SHIM,BEVEL PINION T:0.60

CHKK; 4WD; 1994-12-01~1996-03-01

29521-74C00-000

US $4.31

4
4

29521-74C20-000

SHIM,T/F PINION BRG T:0.66

CHKK; 4WD; 1994-12-01~1996-03-01

29521-74C20-000

US $4.31

4
4

29521-74C40-000

SHIM,BEVEL PINION T:0.72

CHKK; 4WD; 1994-12-01~1996-03-01

29521-74C40-000

US $2.74

4
4

29521-74C60-000

SHIM,T/F PINION BRG T:0.78

CHKK; 4WD; 1994-12-01~1996-03-01

29521-74C60-000

US $2.74

4
4

29521-74C80-000

SHIM,BEVEL PINION T:0.84

CHKK; 4WD; 1994-12-01~1996-03-01

29521-74C80-000

US $2.74

4
4

29521-75C00-000

SHIM,BEVEL PINION T:0.30

CHKK; 4WD; 1994-12-01~1996-03-01

29521-75C00-000

US $3.31

5
5
29115-74C02-000
GEAR,T/F DRIVE

4WD; 1994-12-01~1996-03-01

29115-74C02-000

6
6

09262-25003-000

BEARING(25X52X15)

Bearing (25x52x15)

4WD; 1994-12-01~1996-03-01

09262-25003-000

from US $12.80

7
7

09159-24007-000

NUT

4WD; 1994-12-01~1996-03-01

09159-24007-000

US $181.80

8
8
29111-74C02-000
GEAR,T/F DRIVEN

4WD; 1994-12-01~1996-03-01

29111-74C02-000

9
9
29141-74C02-000
SHAFT,T/F OUTPUT

4WD; 1994-12-01~1996-03-01

29141-74C02-000

10
10
09262-20116-000
BEARING

4WD; 1994-12-01~1996-03-01

09262-20116-000

replacement
10
10

09262-20145-000

BEARING(20X52X15)

4WD; 1994-12-01~1996-03-01

09262-20145-000

from US $14.14

11
11

09262-28004-000

BEARING(28X58X16)

Bearing, lh

4WD; 1994-12-01~1996-03-01

09262-28004-000

from US $28.34

12
12

09380-58001-000

RING,SNAP

4WD; 1994-12-01~1996-03-01

09380-58001-000

US $26.50

13
13
29529-74C01-000
PLATE,T/F DRIVEN BRG

4WD; 1994-12-01~1996-03-01

29529-74C01-000

14
14
09117-08097-000
BOLT(10X38)

4WD; 1994-12-01~1996-03-01

09117-08097-000

15
15
29241-74C00-000
SLEEVE,T/F CLUTCH

4WD; 1994-12-01~1996-03-01

29241-74C00-000

16
16
29242-74C00-000
DOG,T/F CLUTCH

4WD; 1994-12-01~1996-03-01

29242-74C00-000

17
17

09159-24007-000

NUT

4WD; 1994-12-01~1996-03-01

09159-24007-000

US $181.80

18
18

09262-32009-000

BEARING(32X58X13)

4WD; 1994-12-01~1996-03-01

09262-32009-000

US $25.09

19
19

09380-32004-000

RING,SNAP

4WD; 1994-12-01~1996-03-01

09380-32004-000

US $25.40

20
20
08331-41586-000
Circlip

4WD; 1994-12-01~1996-03-01

08331-41586-000

replacement
20
20

08331-4158A-000

CIRCLIP

4WD; 1994-12-01~1996-03-01

08331-4158A-000

from US $2.43

21
21

08113-60050-000

BEARING

Bearing, lh

4WD; 1994-12-01~1996-03-01

08113-60050-000

from US $10.19

22
22

27431-73B20-000

OIL SEAL,DIFF SIDE

Seal, defferential side oil

4WD; 1994-12-01~1996-03-01

27431-73B20-000

from US $8.64

replacement
22
22

27431-73H30-000

SEAL,OIL

4WD; 1994-12-01~1996-03-01

27431-73H30-000

from US $9.70

23
23
29291-74B04-000
FLANGE,T/F OUTPUT

4WD; 1994-12-01~1996-03-01

29291-74B04-000

24
24

08211-20345-000

WASHER

4WD; 1994-12-01~1996-03-01

08211-20345-000

from US $1.69

25
25

09159-20009-000

NUT

4WD; 1994-12-01~1996-03-01

09159-20009-000

US $5.63

26
26

09261-08006-000

PIN(8X22.5)

4WD; 1994-12-01~1996-03-01

09261-08006-000

US $16.20

US $16.20
