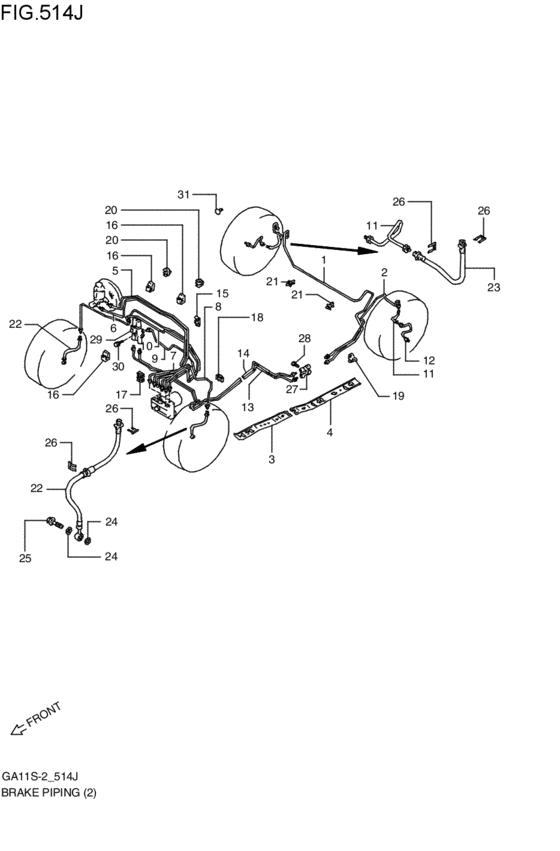

brakes piping (3ドア ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- CS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51530-60G00-000 PIPE,JOINT TO RR BK HOSE RABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51530-60G00-000 |
US $43.20 |
||
|
2
|
2
51540-60G00-000 PIPE,JOINT TO RR BK HOSE LABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51540-60G00-000 |
US $32 |
||
|
3
|
3
51711-60G00-000
COVER,BRAKE PIPE FR
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51711-60G00-000 |
— | ||
|
4
|
4
51721-61G00-000
COVER,BRAKE PIPE RR
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51721-61G00-000 |
— | ||
|
5
|
5
51410-62G00-000
パイプ,マスタプライマリツーユニット
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51410-62G00-000 |
— | ||
|
6
|
6
51420-62G00-000
パイプ,マスタセカンダリツーユニット
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51420-62G00-000 |
— | ||
|
7
|
7
51440-62G00-000
PIPE,HU TO FR BK HOSE R
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51440-62G00-000 |
— | ||
|
8
|
8
51430-62G00-000
Pipe,hu to fr bk hose,l
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51430-62G00-000 |
— | ||
|
9
|
9
51450-62G00-000
Pipe,hu to valve,r
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51450-62G00-000 |
— | ||
|
10
|
10
51460-62G00-000
PIPE,HU TO VALVE L
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51460-62G00-000 |
— | ||
|
11
|
11
51470-60G00-000 PIPE,RR BK HOSE TO WHL CYLABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51470-60G00-000 |
US $11.63 |
||
|
12
|
12
51490-60G00-000 PIPE,RR BK HOSE TO WHL CYL LABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51490-60G00-000 |
US $11.63 |
||
|
13
|
13
51510-61G00-000 PIPE,VALVE TO JOINT RABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51510-61G00-000 |
US $34.41 |
||
|
14
|
14
51520-61G00-000
PIPE,VALVE TO JOINT L
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51520-61G00-000 |
— | ||
|
15
|
15
51751-60B00-000 CLAMP,BRAKE PIPEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51751-60B00-000 |
US $1.60 |
||
|
16
|
16
51752-70B00-000 CLAMP,BK PIPEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51752-70B00-000 |
US $1.60 |
||
|
17
|
17
51753-60G00-000 CLAMP,PIPE HUABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51753-60G00-000 |
US $2.69 |
||
|
18
|
18
09408-00125-000 CLAMPABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09408-00125-000 |
US $16.20 |
||
|
19
|
19
51761-60B00-000 CLAMP,BRAKE PIPEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51761-60B00-000 |
US $1.92 |
||
|
20
|
20
51761-70F00-000 CLAMP,BK PIPE SIDE MEMBERABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51761-70F00-000 |
US $1.52 |
||
|
21
|
21
51771-60B00-000 CLAMP,BRAKE PIPEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51771-60B00-000 |
US $2.13 |
||
|
22
|
22
51580-60G00-000 HOSE,FR BRAKE FLEXIBLEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51580-60G00-000 |
US $51.15 |
||
|
23
|
23
51570-50A50-000 HOSE,RR BRAKE FLEXIBLEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51570-50A50-000 |
US $18.40 |
||
|
24
|
24
09161-10009-000 WASHER(10X15X1.5)Lock washer ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09161-10009-000 |
from US $1.06 |
||
|
25
|
25
09360-10026-000 Union boltABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09360-10026-000 |
from US $1.85 |
||
|
26
|
26
09383-13001-000 E RINGABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
26
|
26
09383-13003-000 E-RINGABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09383-13003-000 |
from US $1.60 |
||
|
27
|
27
51630-82040-000 JOINT,4WAY BRAKEABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51630-82040-000 |
US $24 |
||
|
28
|
28
02162-06253-000
Bolt
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
28
|
28
02162-0625A-000 SCREWABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
02162-0625A-000 |
from US $0.76 |
||
|
29
|
29
51910-62G00-000
VALVE ASSY,PROPORTIONING
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
51910-62G00-000 |
— | ||
|
30
|
30
01550-06303-000
Bolt (6x30)
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-0630A-000 BOLTABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
01550-0630A-000 |
from US $0.96 |
||
|
31
|
31
09250-05011-000
キャップ,OD:12
ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09250-05011-000 |
— | ||
| replacement | |||||
|
31
|
31
09250-05011-5PK CAP(OD:12)Plug ABSシヨウ; 3DR:4WD; 1996-02-01~1997-03-01 |
09250-05011-5PK |
from US $2.21 |
||
