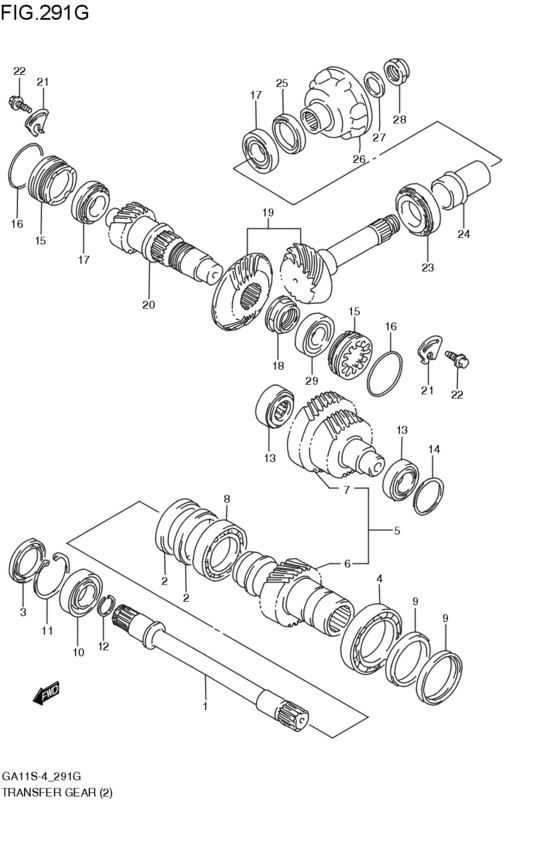

transfer gear (4WD:AT; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- FS-4
- number of the gears
- 4AT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27811-60G90-000
Shaft,drive intermediate
4WD:AT; 1998-05-01~2000-02-01 |
27811-60G90-000 |
— | ||
|
2
|
2
29171-60G90-000 OIL SEAL4WD:AT; 1998-05-01~2000-02-01 |
29171-60G90-000 |
from US $7.85 |
||
|
3
|
3
29172-60G90-000 OIL SEAL4WD:AT; 1998-05-01~2000-02-01 |
29172-60G90-000 |
from US $7.18 |
||
|
4
|
4
09262-50002-000 BEARING(50X80X16)4WD:AT; 1998-05-01~2000-02-01 |
09262-50002-000 |
US $41.95 |
||
|
5
|
5
29100-60890-000
REDUCTION GEAR SET
4WD:AT; 1998-05-01~1999-03-01 |
29100-60890-000 |
— | ||
|
6
|
6
29111-60G92-000
ギヤ,リダクションドライブ
4WD:AT; 1999-02-01~2000-02-01 |
29111-60G92-000 |
— | ||
|
7
|
7
29121-60G91-000
ギヤ,リダクションアイドラ
4WD:AT; 1999-02-01~2000-02-01 |
29121-60G91-000 |
— | ||
|
8
|
8
09262-45010-000 BEARING(45X75X16)4WD:AT; 1998-05-01~2000-02-01 |
09262-45010-000 |
from US $37.17 |
||
|
9
|
9
29181-60G90-000 SEAL4WD:AT; 1998-05-01~2000-02-01 |
29181-60G90-000 |
from US $11.09 |
||
|
10
|
10
09262-28030-000
Bearing,28x58x16
4WD:AT; 1998-05-01~2000-02-01 |
09262-28030-000 |
— | ||
| replacement | |||||
|
10
|
10
27831-68L10-000 BEARING,DRIVE INTERMEDIATE4WD:AT; 1998-05-01~2000-02-01 |
27831-68L10-000 |
from US $34.40 |
||
|
11
|
11
08331-41586-000
Circlip
4WD:AT; 1998-05-01~2000-02-01 |
08331-41586-000 |
— | ||
| replacement | |||||
|
11
|
11
08331-4158A-000 CIRCLIP4WD:AT; 1998-05-01~2000-02-01 |
08331-4158A-000 |
from US $2.56 |
||
|
12
|
12
09381-25002-000 RING,SNAP4WD:AT; 1998-05-01~2000-02-01 |
09381-25002-000 |
US $16.20 |
||
|
13
|
13
09265-25038-000 BEARING(25X47X15)4WD:AT; 1998-05-01~2000-02-01 |
09265-25038-000 |
from US $24 |
||
|
14
|
14
09181-40013-000 SHIM(40X46.8X1.05)4WD:AT; 1998-05-01~2000-02-01 |
09181-40013-000 |
US $1.46 |
||
|
14
|
14
09181-40014-000 SHIM(40X46.8X1.1)4WD:AT; 1998-05-01~2000-02-01 |
09181-40014-000 |
US $24.30 |
||
|
14
|
14
09181-40015-000 SHIM(40X46.8X1.15)4WD:AT; 1998-05-01~2000-02-01 |
09181-40015-000 |
from US $1.01 |
||
|
14
|
14
09181-40018-000 SHIM(40X46.8X0.55)4WD:AT; 1998-05-01~2000-02-01 |
09181-40018-000 |
US $1.46 |
||
|
14
|
14
09181-40004-000 SHIM(40X46.8X0.6)4WD:AT; 1998-05-01~2000-02-01 |
09181-40004-000 |
from US $0.81 |
||
|
14
|
14
09181-40005-000 SHIM(40X46.8X0.65)4WD:AT; 1998-05-01~2000-02-01 |
09181-40005-000 |
from US $1.28 |
||
|
14
|
14
09181-40006-000 SHIM(40X46.8X0.7)4WD:AT; 1998-05-01~2000-02-01 |
09181-40006-000 |
from US $0.81 |
||
|
14
|
14
09181-40007-000 SHIM(40X46.8X0.75)4WD:AT; 1998-05-01~2000-02-01 |
09181-40007-000 |
US $1.46 |
||
|
14
|
14
09181-40008-000 SHIM(40X46.8X0.8)4WD:AT; 1998-05-01~2000-02-01 |
09181-40008-000 |
US $1.46 |
||
|
14
|
14
09181-40009-000 SHIM(40X46.8X085)4WD:AT; 1998-05-01~2000-02-01 |
09181-40009-000 |
US $1.46 |
||
|
14
|
14
09181-40010-000 SHIM(40X46.8X0.9)4WD:AT; 1998-05-01~2000-02-01 |
09181-40010-000 |
from US $1.42 |
||
|
14
|
14
09181-40011-000 SHIM(40X46.8X0.95)4WD:AT; 1998-05-01~2000-02-01 |
09181-40011-000 |
US $1.46 |
||
|
14
|
14
09181-40012-000 SHIM(40X46.8X1)4WD:AT; 1998-05-01~2000-02-01 |
09181-40012-000 |
US $1.46 |
||
|
15
|
15
29151-60G90-000
ADJUSTER,INPUT BEVEL
4WD:AT; 1998-05-01~2000-02-01 |
29151-60G90-000 |
— | ||
|
16
|
16
29153-60G90-000 O-RING4WD:AT; 1998-05-01~2000-02-01 |
29153-60G90-000 |
US $5.85 |
||
|
17
|
17
09265-25033-000 BEARING(25X52X15)4WD:AT; 1998-05-01~2000-02-01 |
09265-25033-000 |
US $77.60 |
||
|
18
|
18
29161-60G90-000
ナット
4WD:AT; 1998-05-01~2000-02-01 |
29161-60G90-000 |
— | ||
|
19
|
19
27300-60G80-000
ギヤセット,ベベル
4WD:AT; 1998-05-01~2000-02-01 |
27300-60G80-000 |
— | ||
|
20
|
20
29131-60G90-000
ギヤ,リダクションドリブン
4WD:AT; 1998-05-01~2000-02-01 |
29131-60G90-000 |
— | ||
|
21
|
21
29152-60G90-000
Plate,adjuster
4WD:AT; 1998-05-01~2000-02-01 |
29152-60G90-000 |
— | ||
|
22
|
22
29154-60G90-000
Bolt,adjuster plate
4WD:AT; 1998-05-01~2000-02-01 |
29154-60G90-000 |
— | ||
|
23
|
23
09265-30016-000 BEARING(30X62X17.25)4WD:AT; 1998-05-01~2000-02-01 |
09265-30016-000 |
US $54.83 |
||
|
24
|
24
27315-80001-000
SPACER,DRIVE BEVEL PINION
4WD:AT; 1998-05-01~2000-02-01 |
27315-80001-000 |
— | ||
| replacement | |||||
|
24
|
24
27315-64P00-000 SPACER,DRIVE BEVEL PINION4WD:AT; 1998-05-01~2000-02-01 |
27315-64P00-000 |
from US $10.04 |
||
|
25
|
25
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 4WD:AT; 1998-05-01~2000-02-01 |
27431-73B20-000 |
from US $12.96 |
||
| replacement | |||||
|
25
|
25
27431-73H30-000 SEAL,OIL4WD:AT; 1998-05-01~2000-02-01 |
27431-73H30-000 |
from US $12.38 |
||
|
26
|
26
29291-74B04-000
FLANGE,T/F OUTPUT
4WD:AT; 1998-05-01~2000-02-01 |
29291-74B04-000 |
— | ||
|
27
|
27
08211-20345-000 WASHER4WD:AT; 1998-05-01~2000-02-01 |
08211-20345-000 |
from US $1.53 |
||
|
28
|
28
09159-20009-000 NUT4WD:AT; 1998-05-01~2000-02-01 |
09159-20009-000 |
from US $5.42 |
||
|
29
|
29
27390-53F00-000
Bearing assy, pinion rear
4WD:AT; 1998-05-01~2000-02-01 |
27390-53F00-000 |
— | ||
| replacement | |||||
|
29
|
29
27390-70H01-000 BEARING ASSY,T/F OUTPUT4WD:AT; 1998-05-01~2000-02-01 |
27390-70H01-000 |
US $66.40 |
||
