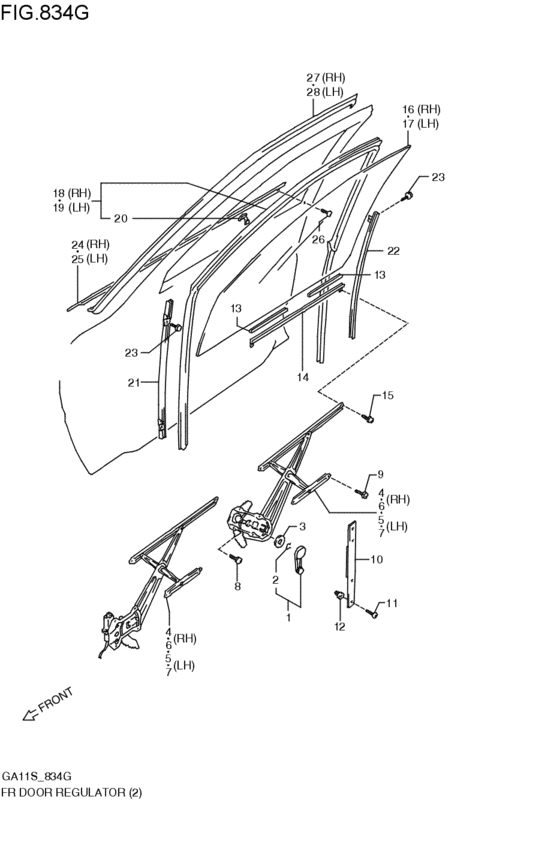

front door regulator (4DR; 1994-12-01~) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- A
- number of the gears
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82960-70B01-5ES
ハンドル,ウィンドレギュレータ(ブラック)
ブラック; 4DR:A; 1994-12-01~1996-03-01 |
82960-70B01-5ES |
— | ||
| replacement | |||||
|
1
|
1
82960-60G00-5ES
HANDLE,DR WINDOW RGLTR(BLACK)
ブラック; 4DR:A; 1994-12-01~1996-03-01 |
82960-60G00-5ES |
— | ||
|
2
|
2
78463-78000-000 SNAP4DR:A; 1994-12-01~1996-03-01 |
78463-78000-000 |
US $1.60 |
||
|
3
|
3
82972-60G00-5ES
ESCUTCHEON,WINDOW RGLTR HDL
ブラック; 4DR:A; 1994-12-01~1996-03-01 |
82972-60G00-5ES |
— | ||
|
4
|
4
83410-60G00-000
レギュレータアッシ,フロントウィンド,ライト
4DR:A; 1994-12-01~1996-03-01 |
83410-60G00-000 |
— | ||
| replacement | |||||
|
4
|
4
83410-60G01-000 REGULATOR ASSY,FR WINDOW,R4DR:A; 1994-12-01~1996-03-01 |
83410-60G01-000 |
US $86.11 |
||
|
5
|
5
83440-60G00-000
レギュレータアッシ,フロントウィンド,レフト
4DR:A; 1994-12-01~1996-03-01 |
83440-60G00-000 |
— | ||
| replacement | |||||
|
5
|
5
83440-60G01-000 REGULATOR ASSY,FR WINDOW,L4DR:A; 1994-12-01~1996-03-01 |
83440-60G01-000 |
US $86.11 |
||
|
8
|
8
02112-76123-000
Screw
4DR; 1994-12-01~1996-03-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREW4DR; 1994-12-01~1996-03-01 |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
02112-76123-000
Screw
4DR; 1994-12-01~1996-03-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-7612B-000 SCREW4DR; 1994-12-01~1996-03-01 |
02112-7612B-000 |
from US $0.96 |
||
|
13
|
13
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNELL:250>180; 4DR; 1994-12-01~1996-03-01 |
83691-60A00-000 |
US $2.56 |
||
|
14
|
14
83610-62B00-000 CHANNEL,FR GLASS BOTTOM4DR; 1994-12-01~1996-03-01 |
83610-62B00-000 |
from US $15.12 |
||
|
15
|
15
02112-76103-000
Screw
4DR; 1994-12-01~1996-03-01 |
02112-76103-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7610A-000 SCREW4DR; 1994-12-01~1996-03-01 |
02112-7610A-000 |
from US $3.59 |
||
|
16
|
16
84531-60G00-000
ガラス,フロントドアウィンド,ライト(クリア)
クリア CENTRAL; 4DR:(A,SA); 1994-12-01~1996-03-01 |
84531-60G00-000 |
— | ||
| replacement | |||||
|
16
|
16
84531-60G30-000 GLASS,FR DR WDO,Rクリア CENTRAL; 4DR:(A,SA); 1994-12-01~1996-03-01 |
84531-60G30-000 |
US $152.35 |
||
|
17
|
17
84536-60G00-000
ガラス,フロントドアウィンド,レフト(クリア)
クリア CENTRAL; 4DR:(A,SA); 1994-12-01~1996-03-01 |
84536-60G00-000 |
— | ||
| replacement | |||||
|
17
|
17
84536-60G30-000 GLASS,FR DR WDO,Lクリア CENTRAL; 4DR:(A,SA); 1994-12-01~1996-03-01 |
84536-60G30-000 |
US $152.35 |
||
|
18
|
18
83661-60G00-000
ラン,フロントドアガラス,ライト
4DR; 1994-12-01~1996-03-01 |
83661-60G00-000 |
— | ||
| replacement | |||||
|
18
|
18
83661-60G01-000 RUN,FR DOOR GLASS,R4DR; 1994-12-01~1996-03-01 |
83661-60G01-000 |
US $143.15 |
||
|
19
|
19
83665-60G00-000
ラン,フロントドアガラス,レフト
4DR; 1994-12-01~1996-03-01 |
83665-60G00-000 |
— | ||
| replacement | |||||
|
19
|
19
83665-60G01-000
RUN,FR DOOR GLASS,L
4DR; 1994-12-01~1996-03-01 |
83665-60G01-000 |
— | ||
|
20
|
20
83663-50G00-000
GUIDE,DR WINDOW GLASS
4DR; 1994-12-01~1996-03-01 |
83663-50G00-000 |
— | ||
|
21
|
21
81710-60G00-000 SASH,FR DOOR FRONT4DR; 1994-12-01~1996-03-01 |
81710-60G00-000 |
US $16.52 |
||
|
22
|
22
81730-60G00-000
サッシュ,フロントドア,リヤ
4DR; 1994-12-01~1996-03-01 |
81730-60G00-000 |
— | ||
| replacement | |||||
|
22
|
22
81730-60G01-000 SASH,FR DOOR REAR4DR; 1994-12-01~1996-03-01 |
81730-60G01-000 |
US $17.59 |
||
|
23
|
23
09136-06131-000
スクリュ
4DR; 1994-12-01~1996-03-01 |
09136-06131-000 |
— | ||
| replacement | |||||
|
23
|
23
09122-46001-000 SCREW(6X16)4DR; 1994-12-01~1996-03-01 |
09122-46001-000 |
US $9.90 |
||
|
24
|
24
83811-60G00-000 WEATHERSTRIP,FR DR OTR,R4DR; 1994-12-01~1996-03-01 |
83811-60G00-000 |
US $154.40 |
||
|
25
|
25
83821-60G00-000
WEATHERSTRIP,FR DR OTR,L
4DR; 1994-12-01~1996-03-01 |
83821-60G00-000 |
— | ||
|
26
|
26
09136-05058-000 SCREW(5X16)4DR; 1994-12-01~1996-03-01 |
09136-05058-000 |
US $16.90 |
||
|
27
|
27
83662-60G00-000 MOLDING,FR DR FRAME,R4DR; 1994-12-01~1996-03-01 |
83662-60G00-000 |
US $72.50 |
||
|
28
|
28
83666-60G00-000 MOLDING,FR DR FRAME,L4DR; 1994-12-01~1996-03-01 |
83666-60G00-000 |
US $72.50 |
||
