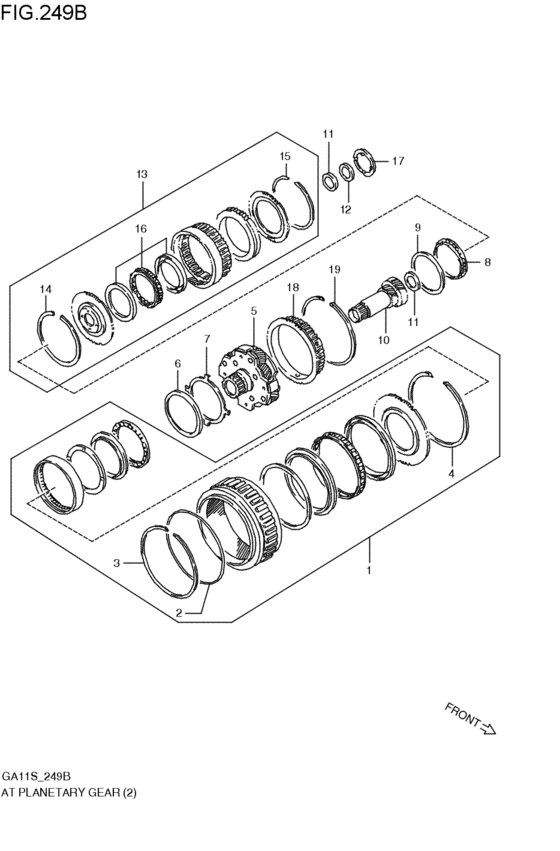

at - plastic material re-gear (4AT; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- C
- number of the gears
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24921-60GT0-000
ギヤセット,フロントプラネタリリング
4AT; 1994-12-01~1996-03-01 |
24921-60GT0-000 |
— | ||
|
2
|
2
24991-60G10-000
O-RING,FRONT PLNTY RING GEAR
4AT; 1994-12-01~1996-03-01 |
24991-60G10-000 |
— | ||
|
3
|
3
24992-60G10-000 RING,FR PLNTY RING GEAR SNAP4AT; 1994-12-01~1996-03-01 |
24992-60G10-000 |
US $9.46 |
||
|
4
|
4
26874-60G10-000
RING,1ST ONE WAY BRAKE SNAP
4AT; 1994-12-01~1996-03-01 |
26874-60G10-000 |
— | ||
|
5
|
5
24910-60G10-000
キャリア,プラネタリ
4AT; 1994-12-01~1996-03-01 |
24910-60G10-000 |
— | ||
| replacement | |||||
|
5
|
5
24910-54G71-000 CARRIER,PLANETARY4AT; 1994-12-01~1996-03-01 |
24910-54G71-000 |
US $1,168.64 |
||
|
6
|
6
24912-60G10-000 BEARING,CARRIER THRUST,FR4AT; 1994-12-01~1996-03-01 |
24912-60G10-000 |
US $36.80 |
||
|
7
|
7
24913-60G10-000 RACE,CARRIER FR THRUST BRG4AT; 1994-12-01~1996-03-01 |
24913-60G10-000 |
US $19.87 |
||
|
8
|
8
24915-60G10-000 BEARING,CARRIER THRUST,RR4AT; 1994-12-01~1996-03-01 |
24915-60G10-000 |
US $39.74 |
||
|
9
|
9
24916-60G10-000 RACE,CARRIER RR THRUST BRG4AT; 1994-12-01~1996-03-01 |
24916-60G10-000 |
US $15.46 |
||
|
10
|
10
24931-60G10-000
ギヤ,プラネタリサン
4AT; 1994-12-01~1996-03-01 |
24931-60G10-000 |
— | ||
| replacements | |||||
|
10
|
10
24931-54G70-000
GEAR,PLNTY SUN
4AT; 1994-12-01~1996-03-01 |
24931-54G70-000 |
— | ||
|
10
|
10
24931-54G71-000 GEAR,PLNTY SUN4AT; 1994-12-01~1996-03-01 |
24931-54G71-000 |
US $556.16 |
||
|
11
|
11
24935-60G10-000 BEARING,SUN GEAR THRUST4AT; 1994-12-01~1996-03-01 |
24935-60G10-000 |
US $30.73 |
||
|
12
|
12
24936-60G10-000 RACE,SUN GEAR THRUST BRG4AT; 1994-12-01~1996-03-01 |
24936-60G10-000 |
US $9.46 |
||
|
13
|
13
24951-60GT0-000
GEAR SET,RR PLANETARY RING
4AT; 1994-12-01~1996-03-01 |
24951-60GT0-000 |
— | ||
| replacement | |||||
|
13
|
13
24951-60GT1-000 GEAR SET,RR PLANETARY RING4AT; 1994-12-01~1996-03-01 |
24951-60GT1-000 |
US $728.64 |
||
|
14
|
14
24993-60G10-000 RING,RR PLNTY RING GEAR SNAP4AT; 1994-12-01~1996-03-01 |
24993-60G10-000 |
US $8.98 |
||
|
15
|
15
26675-60G10-000 RING,FWD ONE WAY CLUTCH SNAP4AT; 1994-12-01~1996-03-01 |
26675-60G10-000 |
US $5.96 |
||
|
16
|
16
26672-60GT0-000
CLUTCH ASSY,FWD ONE WAY
4AT; 1994-12-01~1996-03-01 |
26672-60GT0-000 |
— | ||
| replacement | |||||
|
16
|
16
26672-60GT1-000 CLUTCH ASSY,FWD ONE WAY4AT; 1994-12-01~1996-03-01 |
26672-60GT1-000 |
US $322 |
||
|
17
|
17
24955-60G10-000 RACE,RR RING GEAR THR BRG4AT; 1994-12-01~1996-03-01 |
24955-60G10-000 |
US $10.82 |
||
|
18
|
18
26933-60G10-000 HUB,3RD&4TH CLUTCH4AT; 1994-12-01~1996-03-01 |
26933-60G10-000 |
US $168.18 |
||
|
19
|
19
24992-60G10-000 RING,FR PLNTY RING GEAR SNAP4AT; 1994-12-01~1996-03-01 |
24992-60G10-000 |
US $9.46 |
||
