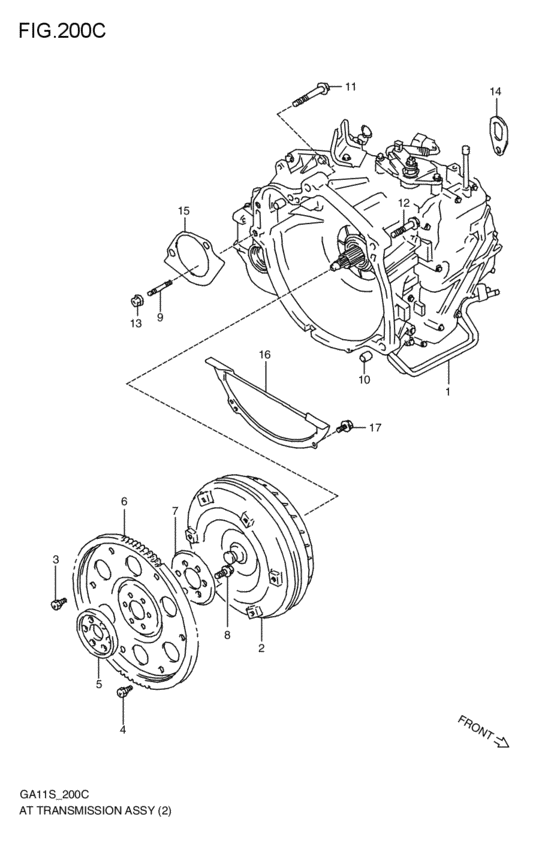

at - transmission assy (4AT; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- C
- number of the gears
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-60G10-000
トランスミッションアッシ,オートマチック
4AT; 1994-12-01~1996-03-01 |
20002-60G10-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-65G30-REM
Automatic transmission assembl,y
4AT; 1994-12-01~1996-03-01 |
20002-65G30-REM |
— | ||
|
1
|
1
20002-60G10-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT; 1994-12-01~1996-03-01 |
20002-60G10-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-60G12-111
トランスミッションアッシ,オートマチック
リビルト; 4AT; 1994-12-01~1996-03-01 |
20002-60G12-111 |
— | ||
|
2
|
2
22710-60G10-000 CONVERTER,TORQUE4AT; 1994-12-01~1996-03-01 |
22710-60G10-000 |
US $1,077.12 |
||
|
3
|
3
09103-08516-000 BOLT(8X9.5)4AT; 1994-12-01~1996-03-01 |
09103-08516-000 |
from US $1.12 |
||
|
4
|
4
09103-08517-000 BOLT(8X9.5)4AT; 1994-12-01~1996-03-01 |
09103-08517-000 |
from US $3.65 |
||
|
5
|
5
22611-60G10-000
FLANGE,DRIVE PLATE FR
4AT; 1994-12-01~1996-03-01 |
22611-60G10-000 |
— | ||
|
6
|
6
22620-60G11-000 PLATE,TC DRIVE4AT; 1994-12-01~1996-03-01 |
22620-60G11-000 |
US $147.94 |
||
|
7
|
7
22631-61A00-000 FLANGE,T/C DRIVE PLATE RR4AT; 1994-12-01~1996-03-01 |
22631-61A00-000 |
US $23.20 |
||
|
8
|
8
09100-10275-000 BOLT(10X18.5)4AT; 1994-12-01~1996-03-01 |
09100-10275-000 |
US $1.44 |
||
|
9
|
9
09108-12004-000 BOLT,STUD4AT; 1994-12-01~1996-03-01 |
09108-12004-000 |
US $30.20 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17)4AT; 1994-12-01~1996-03-01 |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
01550-12553-000
ボルト
4AT; 1994-12-01~1996-03-01 |
01550-12553-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1255A-000 Bolt4AT; 1994-12-01~1996-03-01 |
01550-1255A-000 |
US $21.70 |
||
|
12
|
12
01550-12753-000
ボルト
4AT; 1994-12-01~1996-03-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1275A-000 BOLT4AT; 1994-12-01~1996-03-01 |
01550-1275A-000 |
US $1.92 |
||
|
13
|
13
08316-10123-000
Nut
4AT; 1994-12-01~1996-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUT4AT; 1994-12-01~1996-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
14
|
14
11851-62B00-000 HOOK4AT; 1994-12-01~1996-03-01 |
11851-62B00-000 |
US $5.02 |
||
|
15
|
15
11311-71C00-000 PLATE,STARTING MOTOR4AT; 1994-12-01~1996-03-01 |
11311-71C00-000 |
US $4.34 |
||
|
16
|
16
11321-71C01-000 PLATE,CLUTCH HSG LOWER4AT; 1994-12-01~1996-03-01 |
11321-71C01-000 |
US $8.13 |
||
|
17
|
17
01550-06103-000
Bolt, front
4AT; 1994-12-01~1996-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610B-000 BoltBolt 4AT; 1994-12-01~1996-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
01550-0610A-000 BOLT4AT; 1994-12-01~1996-03-01 |
01550-0610A-000 |
from US $0.80 |
||
