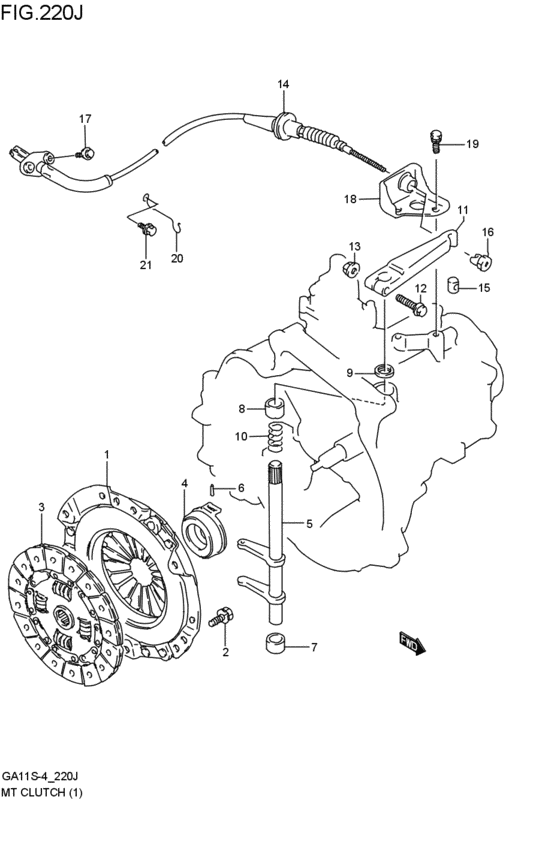

mt - clutch (MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 4DR
- grade
- FS1
- number of the gears
- 5MT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-60G20-000 COVER ASSY,CLUTCHMT:2WD:G15A; 1998-05-01~2000-02-01 |
22100-60G20-000 |
US $114.82 |
||
|
2
|
2
09117-08096-000 BOLT(8X16)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09117-08096-000 |
US $1.28 |
||
|
3
|
3
22400-64G20-000
ディスク,クラッチ
MT:2WD:G15A; 1998-05-01~2000-02-01 |
22400-64G20-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-64G80-000 DISC,CLUTCHMT:2WD:G15A; 1998-05-01~2000-02-01 |
22400-64G80-000 |
US $96.42 |
||
|
4
|
4
23265-65G00-000 BEARING,CLUTCH RELEASEMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23265-65G00-000 |
US $87.20 |
||
|
5
|
5
23260-60B01-000
シャフト,クラッチレリーズ
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23260-60B01-000 |
— | ||
| replacements | |||||
|
5
|
5
23260-83E00-000 SHAFT,CLUTCH RELEASEMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23260-83E00-000 |
US $71.44 |
||
|
5
|
5
09385-10005-000 CLIPClip MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09385-10005-000 |
from US $2.28 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09300-16010-000 BUSH(16X24X19)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09300-16010-000 |
US $4.80 |
||
|
8
|
8
09300-16009-000 BUSH(16X20X20)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09300-16009-000 |
US $2.72 |
||
|
9
|
9
09284-16004-000 SEAL,OIL(16X24X5)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09284-16004-000 |
US $2.72 |
||
|
10
|
10
23269-60B00-000 SPRING,RELEASE SHAFT RETURNMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23269-60B00-000 |
US $4.27 |
||
|
11
|
11
23266-60B10-000 ARM,CLUTCH RELEASEMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23266-60B10-000 |
US $40.85 |
||
|
12
|
12
01550-08403-000
Bolt
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0840B-000 BoltMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
01550-0840B-000 |
from US $1.12 |
||
|
12
|
12
01550-0840A-000 BOLTMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
01550-0840A-000 |
from US $1.12 |
||
|
13
|
13
08316-10083-000
Nut
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUTMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
23710-60G01-000 CABLE ASSY,CLUTCHMT:2WD:G15A; 1998-05-01~2000-02-01 |
23710-60G01-000 |
US $64.77 |
||
|
15
|
15
09209-13014-000 PINMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09209-13014-000 |
US $64.80 |
||
|
16
|
16
09150-06014-000
Nut
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09150-06014-000 |
— | ||
| replacement | |||||
|
16
|
16
09150-06010-000 NUTMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09150-06010-000 |
from US $1.82 |
||
|
17
|
17
09119-06051-000 BOLT(6X21)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09119-06051-000 |
US $11 |
||
|
18
|
18
23910-60B10-000
BRACKET,CLUTCH CABLE
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23910-60B10-000 |
— | ||
|
19
|
19
09103-08334-000 BOLT(8X16)MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
09103-08334-000 |
from US $6.56 |
||
|
20
|
20
23915-60B01-000 CLAMP,CLUTCH CABLEMT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
23915-60B01-000 |
US $2.98 |
||
|
21
|
21
02162-06123-000
Bolt (6x12)
MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket MT:2WD:(G13B,G15A); 1998-05-01~2000-02-01 |
02162-0612A-000 |
from US $0.80 |
||
