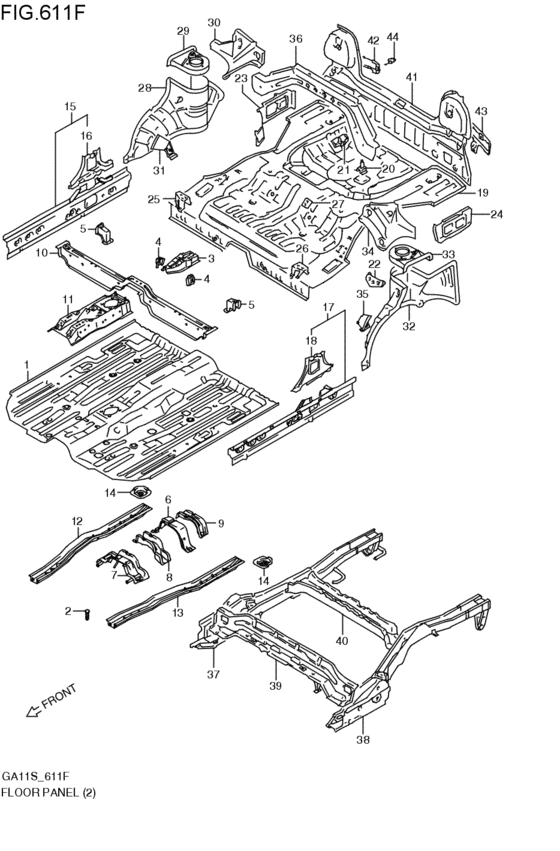

floor panel (4DR; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- X
- number of the gears
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-65G00-000
Panel,main floor
4DR; 1994-12-01~1996-03-01 |
61111-65G00-000 |
— | ||
|
2
|
2
09119-05018-000 BOLT(8X35)4DR; 1994-12-01~1996-03-01 |
09119-05018-000 |
US $9.60 |
||
|
3
|
3
61120-60B00-000
ブラケット,パーキングレバー
4DR; 1994-12-01~1996-03-01 |
61120-60B00-000 |
— | ||
|
4
|
4
61131-60G00-000
Bracket,front seat inside
4DR; 1994-12-01~1996-03-01 |
61131-60G00-000 |
— | ||
|
5
|
5
61141-60B00-000
Bracket,fr seat outside
4DR; 1994-12-01~1996-03-01 |
61141-60B00-000 |
— | ||
|
6
|
6
61151-60G00-000
リンフォースメント,フロントシートインサイド
4DR; 1994-12-01~1996-03-01 |
61151-60G00-000 |
— | ||
|
7
|
7
61160-60G01-000
ブラケット,マフラセンタ
4DR; 1994-12-01~1996-03-01 |
61160-60G01-000 |
— | ||
|
9
|
9
61191-54G00-000 BRACKET,VIS REAR4DR; 1994-12-01~1996-03-01 |
61191-54G00-000 |
US $25.21 |
||
|
10
|
10
61210-60G01-000
CROSSMEMBER,FL PAN UPPER
4DR; 1994-12-01~1996-03-01 |
61210-60G01-000 |
— | ||
|
11
|
11
61221-60G03-000
REINFORCEMENT,FL PANEL UPR
4DR:2WD; 1994-12-01~1996-03-01 |
61221-60G03-000 |
— | ||
|
12
|
12
61351-60G01-000
Member,floor side,r
4DR; 1994-12-01~1996-03-01 |
61351-60G01-000 |
— | ||
|
13
|
13
61356-60G01-000
Member,floor side,l
4DR; 1994-12-01~1996-03-01 |
61356-60G01-000 |
— | ||
|
14
|
14
61353-65G00-000
BRACKET,BODY MTG
4DR; 1994-12-01~1996-03-01 |
61353-65G00-000 |
— | ||
|
15
|
15
61310-60G00-000
パネル,サイドシルインナ,ライト
4DR; 1994-12-01~1996-03-01 |
61310-60G00-000 |
— | ||
| replacement | |||||
|
15
|
15
61310-60G02-000
PANEL,SIDE SILL INNER,R
4DR; 1994-12-01~1996-03-01 |
61310-60G02-000 |
— | ||
|
16
|
16
61312-60G00-000
エクステンション,メインフロア
4DR; 1994-12-01~1996-03-01 |
61312-60G00-000 |
— | ||
| replacement | |||||
|
16
|
16
61312-60G01-000
EXTENSION,MAIN FL SIDE,R
4DR; 1994-12-01~1996-03-01 |
61312-60G01-000 |
— | ||
|
17
|
17
61320-60G00-000
パネル,サイドシルインナ,レフト
4DR; 1994-12-01~1996-03-01 |
61320-60G00-000 |
— | ||
| replacement | |||||
|
17
|
17
61320-60G02-000
PANEL,SIDE SILL INNER,L
4DR; 1994-12-01~1996-03-01 |
61320-60G02-000 |
— | ||
|
18
|
18
61317-60G00-000
エクステンション,メインフロア
4DR; 1994-12-01~1996-03-01 |
61317-60G00-000 |
— | ||
| replacement | |||||
|
18
|
18
61317-60G01-000
EXTENSION,MAIN FL SIDE,L
4DR; 1994-12-01~1996-03-01 |
61317-60G01-000 |
— | ||
|
19
|
19
61511-60G01-000
パン,リヤフロア
4DR; 1994-12-01~1996-03-01 |
61511-60G01-000 |
— | ||
| replacements | |||||
|
19
|
19
61511-60G40-000
Pan,rear floor
4DR; 1994-12-01~1996-03-01 |
61511-60G40-000 |
— | ||
|
19
|
19
09136-06004-000 SCREW(6X12)4DR; 1994-12-01~1996-03-01 |
09136-06004-000 |
from US $0.77 |
||
|
19
|
19
62716-65G10-000
REINF,RR SEAT BACK HNG CTR
4DR; 1994-12-01~1996-03-01 |
62716-65G10-000 |
— | ||
|
20
|
20
61518-60G00-000
BRACKET,SPARE TIRE
4DR; 1994-12-01~1996-03-01 |
61518-60G00-000 |
— | ||
|
21
|
21
61521-72C00-000 BRACKET,JACK4DR; 1994-12-01~1996-03-01 |
61521-72C00-000 |
US $7.21 |
||
|
22
|
22
61530-60G00-000
リンフォースメント,リヤシートベルト
4DR; 1994-12-01~1996-03-01 |
61530-60G00-000 |
— | ||
| replacement | |||||
|
22
|
22
61530-60G01-000
REINFORCEMENT,RR SEAT BELT
4DR; 1994-12-01~1996-03-01 |
61530-60G01-000 |
— | ||
|
23
|
23
61571-60G00-000
コンパートメント,リヤフロアリヤ,ライト
4DR; 1994-12-01~1996-03-01 |
61571-60G00-000 |
— | ||
| replacement | |||||
|
23
|
23
61571-60G01-000
COMPARTMENT,RR FL RR,R
4DR; 1994-12-01~1996-03-01 |
61571-60G01-000 |
— | ||
|
24
|
24
61576-60G00-000
COMPARTMENT,RR FL RR,L
4DR; 1994-12-01~1996-03-01 |
61576-60G00-000 |
— | ||
|
25
|
25
61581-60G00-000
BRACKET,SEAT SIDE,R
4DR; 1994-12-01~1996-03-01 |
61581-60G00-000 |
— | ||
|
26
|
26
61582-60G00-000
BRACKET,SEAT SIDE,L
4DR; 1994-12-01~1996-03-01 |
61582-60G00-000 |
— | ||
|
27
|
27
61761-85500-000 BRACKET,RR SEAT FR LEG4DR:((G,X):2WD); 1994-12-01~1996-03-01 |
61761-85500-000 |
US $5.92 |
||
|
28
|
28
61611-55G00-000 PANEL,RR WHEEL HOUSE INR,R4DR; 1994-12-01~1996-03-01 |
61611-55G00-000 |
US $90.53 |
||
|
29
|
29
61612-60G10-000 BRACKET,RR STRUT,R4DR; 1994-12-01~1996-03-01 |
61612-60G10-000 |
US $60.35 |
||
|
30
|
30
61623-60G00-000
EXTENSION,PARTITION SIDE,R
4DR; 1994-12-01~1996-03-01 |
61623-60G00-000 |
— | ||
|
31
|
31
61630-64G00-000
Bracket,rr seat hng,r
4DR; 1997-12-01~1996-03-01 |
61630-64G00-000 |
— | ||
|
32
|
32
61661-55G00-000
PANEL,RR WHEEL HOUSE INR,L
4DR; 1994-12-01~1996-03-01 |
61661-55G00-000 |
— | ||
|
33
|
33
61662-60G10-000 BRACKET,RR STRUT,L4DR; 1997-12-01~1996-03-01 |
61662-60G10-000 |
US $60.35 |
||
|
34
|
34
61673-60G00-000
EXTENSION,PARTITION SIDE,L
4DR; 1994-12-01~1996-03-01 |
61673-60G00-000 |
— | ||
|
35
|
35
61640-64G00-000
Bracket,rr seat hng,l
4DR; 1994-12-01~1996-03-01 |
61640-64G00-000 |
— | ||
|
36
|
36
61620-60G00-000
メンバ,パーティション,フロント
4DR; 1994-12-01~1996-03-01 |
61620-60G00-000 |
— | ||
| replacement | |||||
|
36
|
36
61620-60G01-000 MEMBER,PARTITION FR4DR; 1994-12-01~1996-03-01 |
61620-60G01-000 |
US $68.45 |
||
|
37
|
37
62110-60G10-000
メンバ,リヤフロアサイド,ライト
4DR; 1994-12-01~1996-03-01 |
62110-60G10-000 |
— | ||
| replacement | |||||
|
37
|
37
62110-60G13-000
MEMBER,RR FL SIDE,R
4DR; 1994-12-01~1996-03-01 |
62110-60G13-000 |
— | ||
|
38
|
38
62310-60G10-000
メンバ,リヤフロアサイド,レフト
4DR; 1994-12-01~1996-03-01 |
62310-60G10-000 |
— | ||
| replacement | |||||
|
38
|
38
62310-60G13-000 MEMBER,RR FL SIDE,L4DR; 1994-12-01~1996-03-01 |
62310-60G13-000 |
US $344.08 |
||
|
39
|
39
62610-60G10-000
クロスメンバ,リヤフロア,フロント
4DR; 1994-12-01~1996-03-01 |
62610-60G10-000 |
— | ||
| replacement | |||||
|
39
|
39
62610-60G11-000
CROSSMEMBER,RR FL,FR
4DR; 1994-12-01~1996-03-01 |
62610-60G11-000 |
— | ||
|
40
|
40
62710-60G20-000
CROSSMEMBER,RR FL CTR
4DR:2WD; 1994-12-01~1996-03-01 |
62710-60G20-000 |
— | ||
|
41
|
41
65500-60G00-000
パネル,バック
4DR; 1994-12-01~1996-03-01 |
65500-60G00-000 |
— | ||
| replacement | |||||
|
41
|
41
65500-60G01-000 PANEL,BACK4DR; 1994-12-01~1996-03-01 |
65500-60G01-000 |
US $241.04 |
||
|
42
|
42
65571-60G00-000 PANEL,COMB LAMP LOWER,R4DR; 1994-12-01~1996-03-01 |
65571-60G00-000 |
US $22.63 |
||
|
43
|
43
65581-60G00-000 PANEL,COMB LAMP LOWER,L4DR; 1994-12-01~1996-03-01 |
65581-60G00-000 |
US $22.63 |
||
|
44
|
44
09103-06083-000
Bolt (6x12)
4DR; 1994-12-01~1996-03-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
44
|
44
09103-06285-000 BOLT(6X12)Bolt (6x12) 4DR; 1994-12-01~1996-03-01 |
09103-06285-000 |
from US $1.28 |
||
