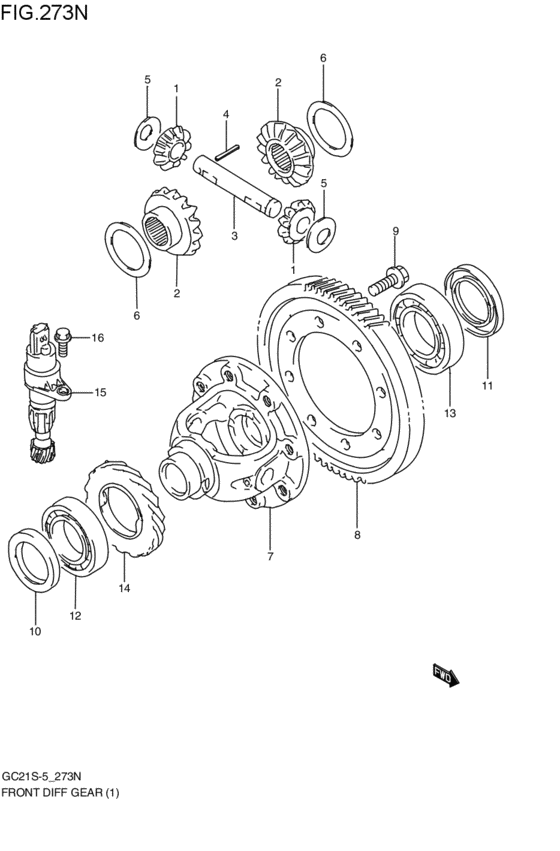

フロントデファレンシャルギヤ (MT:G15A; 2000-05-01~2001-09-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 4DR
- grade
- FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-83020-000 PINION,DIFFERENTIALMT:G15A; 2000-05-01~2001-09-01 |
27331-83020-000 |
from US $31.59 |
||
| replacements | |||||
|
1
|
1
27331-76A20-000
PINION,DIFFERENTIAL
MT:G15A; 2000-05-01~2001-09-01 |
27331-76A20-000 |
— | ||
|
1
|
1
27331-76A21-000 Pinion,differentialMT:G15A; 2000-05-01~2001-09-01 |
27331-76A21-000 |
from US $31.91 |
||
|
2
|
2
27341-76G00-000 GEAR,FR DIFFMT:G15A; 2000-05-01~2001-09-01 |
27341-76G00-000 |
from US $46.80 |
||
|
3
|
3
27351-64B20-000 SHAFT,DIFF SIDE PINIONMT:G15A; 2000-05-01~2001-09-01 |
27351-64B20-000 |
from US $15.77 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36)MT:G15A; 2000-05-01~2001-09-01 |
09205-05007-000 |
from US $1.04 |
||
|
5
|
5
09164-15006-000 WASHERMT:G15A; 2000-05-01~2001-09-01 |
09164-15006-000 |
from US $1.67 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1)MT:G15A; 2000-05-01~2001-09-01 |
09160-35002-000 |
from US $1.53 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1)MT:G15A; 2000-05-01~2001-09-01 |
09160-35003-000 |
from US $1.89 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2)MT:G15A; 2000-05-01~2001-09-01 |
09160-35004-000 |
from US $1.94 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9)MT:G15A; 2000-05-01~2001-09-01 |
09160-35006-000 |
from US $1.73 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) MT:G15A; 2000-05-01~2001-09-01 |
09160-35008-000 |
from US $4.19 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05)MT:G15A; 2000-05-01~2001-09-01 |
09160-35009-000 |
from US $4.19 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15)MT:G15A; 2000-05-01~2001-09-01 |
09160-35010-000 |
from US $4.19 |
||
|
7
|
7
27411-64B01-000
ケース,ディファレンシャル
MT:G15A; 2000-05-01~2001-09-01 |
27411-64B01-000 |
— | ||
|
8
|
8
27511-54G00-000
GEAR,FINAL
MT:G15A; 2000-05-01~2001-09-01 |
27511-54G00-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch MT:G15A; 2000-05-01~2001-09-01 |
09103-10189-000 |
from US $2.56 |
||
|
10
|
10
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil MT:G15A; 2000-05-01~2001-09-01 |
27431-73B20-000 |
from US $12.96 |
||
| replacement | |||||
|
10
|
10
27431-73H30-000 SEAL,OILMT:G15A; 2000-05-01~2001-09-01 |
27431-73H30-000 |
from US $12.38 |
||
|
11
|
11
09283-35037-000 SEAL,OIL(35X62X9.5)MT:G15A; 2000-05-01~2001-09-01 |
09283-35037-000 |
from US $11.81 |
||
|
12
|
12
09262-35070-000 BEARING(35X62X14)MT:G15A; 2000-05-01~2001-09-01 |
09262-35070-000 |
from US $24.80 |
||
|
13
|
13
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) MT:G15A; 2000-05-01~2001-09-01 |
09262-35038-000 |
from US $22.04 |
||
|
14
|
14
26121-60B00-000 GEAR,SPDOM DRIVEMT:G15A; 2000-05-01~2001-09-01 |
26121-60B00-000 |
from US $18.95 |
||
|
15
|
15
26130-60G00-000 GEAR,SPDOM DRIVENMT:G15A; 2000-05-01~2001-09-01 |
26130-60G00-000 |
from US $68.06 |
||
|
16
|
16
09135-06022-000
Bolt
MT:G15A; 2000-05-01~2001-09-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
16
|
16
09135-06027-000 BOLT(6X12)MT:G15A; 2000-05-01~2001-09-01 |
09135-06027-000 |
from US $1.12 |
||
