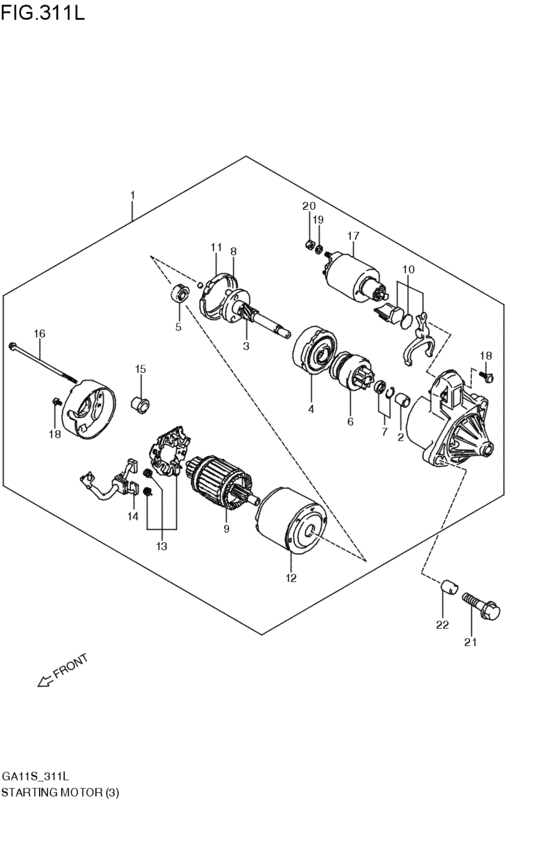

starting motor (カンレイチシヨウ:マニュアル:1カム4バルブ:1500CC; MT:G15A; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 4DR
- grade
- X
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-86032-000
モータアッシ,スターティング
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31100-86032-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-86033-REM
Starting motor
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31100-86033-REM |
— | ||
|
1
|
1
31100-86033-000 MOTOR ASSY,STARTINGカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31100-86033-000 |
US $524.48 |
||
|
2
|
2
31152-79030-000 BEARING,FRONTカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31152-79030-000 |
from US $4.68 |
||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31341-60A10-000 |
— | ||
|
4
|
4
31343-86030-000
ギヤアッシ
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31343-86030-000 |
— | ||
| replacement | |||||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTYカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31344-86030-000 |
US $27.60 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31320-86030-000 |
US $111.50 |
||
|
7
|
7
31313-86030-000
STOPPER SET
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31313-86030-000 |
— | ||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper Setカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31314-86030-000 |
from US $10.53 |
||
|
8
|
8
31345-86030-000
Packing
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKINGカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31311-86032-000
Armature
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31311-86032-000 |
— | ||
|
10
|
10
31191-86030-000
LEVER ASSY
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31191-86030-000 |
— | ||
|
11
|
11
31193-86030-000 BALLカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31193-86030-000 |
US $2.80 |
||
|
12
|
12
31110-86030-000
ヨークアッシ
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31110-86030-000 |
— | ||
| replacement | |||||
|
12
|
12
31110-86031-000
YOKE ASSY
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31110-86031-000 |
— | ||
|
13
|
13
31173-60A20-000 HOLDER ASSY,BRUSHカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31173-60A20-000 |
US $61.09 |
||
|
14
|
14
31131-86030-000 BRUSH ASSYカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31131-86030-000 |
US $10.41 |
||
|
15
|
15
31172-64B60-000 BEARING,REARカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31172-64B60-000 |
US $10.56 |
||
|
16
|
16
31261-86030-000
Bolt
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31261-86030-000 |
— | ||
|
17
|
17
31220-84030-000 SWITCH ASSYカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31220-84030-000 |
US $177.74 |
||
|
18
|
18
31136-79030-000
SCREW ASSY
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
18
|
18
31175-79030-000 Screw Setカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
31175-79030-000 |
US $8.16 |
||
|
19
|
19
08321-01083-000
Lock washer
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108B-000 WASHER,LOCKカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08321-0108B-000 |
from US $0.76 |
||
|
19
|
19
08321-0108A-000 WASHER,LOCKカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08321-0108A-000 |
from US $0.80 |
||
|
20
|
20
08310-00083-000
Nut
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0008B-000 NUTカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08310-0008B-000 |
from US $0.80 |
||
|
20
|
20
08310-0008A-000 NUTNut, bead stopper カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
21
|
21
01550-08403-000
Bolt
カンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0840B-000 Boltカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
21
|
21
01550-0840A-000 BOLTカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
22
|
22
04211-11129-000 PINカンレイチシヨウ; MT:G15A; 1994-12-01~1996-03-01 |
04211-11129-000 |
from US $0.95 |
||
