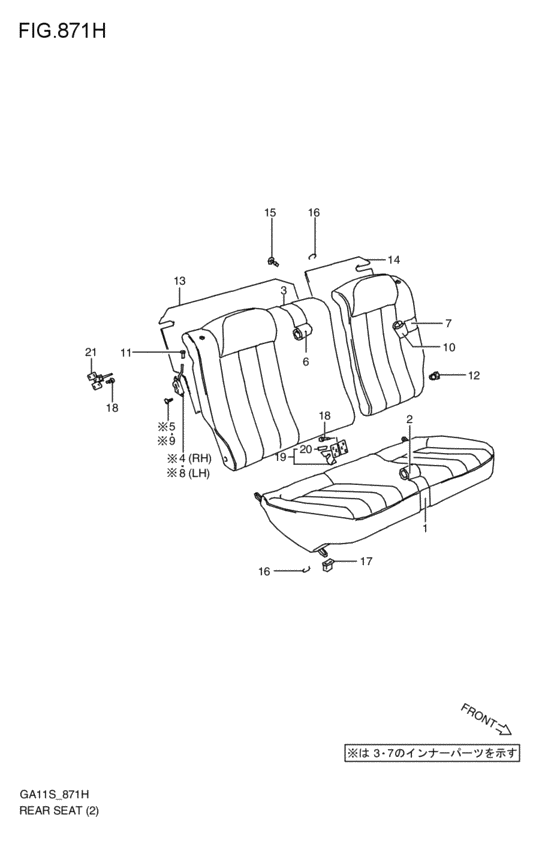

rear seat (X,4DR:G; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 4DR
- grade
- X
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87160-60G00-000
Pad comp,rear seat cushion
X,4DR:G; 1994-12-01~1996-03-01 |
87160-60G00-000 |
— | ||
|
2
|
2
87180-60G00-E5N
トリム,リヤシートクッション
グレ-/ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87180-60G00-E5N |
— | ||
|
3
|
3
87305-60G10-000
バックサブアッシ,リヤシート,ライト
X,4DR:G; 1994-12-01~1996-03-01 |
87305-60G10-000 |
— | ||
| replacement | |||||
|
3
|
3
87305-60G11-000
BACK S/ASSY,RR SEAT,R
X,4DR:G; 1994-12-01~1996-03-01 |
87305-60G11-000 |
— | ||
|
4
|
4
87840-60G00-000
Lock assy,rear seat back,r
X,4DR:G; 1994-12-01~1996-03-01 |
87840-60G00-000 |
— | ||
|
5
|
5
02142-06103-000
Screw
X,4DR:G; 1994-12-01~1996-03-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0610B-000 SCREWStopper, cl rlse cam shaft X,4DR:G; 1994-12-01~1996-03-01 |
02142-0610B-000 |
from US $0.76 |
||
|
5
|
5
02142-0610A-000 SCREWX,4DR:G; 1994-12-01~1996-03-01 |
02142-0610A-000 |
from US $0.80 |
||
|
6
|
6
87380-60G10-E5N
トリム,リヤシートバック,ライト
グレ-/ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87380-60G10-E5N |
— | ||
|
7
|
7
87705-60G10-000
バックサブアッシ,リヤシート,レフト
X,4DR:G; 1994-12-01~1996-03-01 |
87705-60G10-000 |
— | ||
| replacement | |||||
|
7
|
7
87705-60G11-000
BACK S/ASSY,RR SEAT,L
X,4DR:G; 1994-12-01~1996-03-01 |
87705-60G11-000 |
— | ||
|
8
|
8
87940-60G00-000
LOCK ASSY,RR SEAT BACK,L
X,4DR:G; 1994-12-01~1996-03-01 |
87940-60G00-000 |
— | ||
|
9
|
9
02142-06103-000
Screw
X,4DR:G; 1994-12-01~1996-03-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft X,4DR:G; 1994-12-01~1996-03-01 |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREWX,4DR:G; 1994-12-01~1996-03-01 |
02142-0610A-000 |
from US $0.80 |
||
|
10
|
10
87780-60G10-E5N
TRIM,RR SEAT BACK,L
グレ-/ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87780-60G10-E5N |
— | ||
|
11
|
11
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK)ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87846-82000-5ES |
US $1.76 |
||
|
12
|
12
87291-71C10-000 CASE,RR SEAT BACKX,4DR:G; 1994-12-01~1996-03-01 |
87291-71C10-000 |
US $3.61 |
||
|
13
|
13
87390-60G10-5ZJ
CARPET,RR SEAT BACK
ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87390-60G10-5ZJ |
— | ||
|
14
|
14
87790-60G10-5ZJ
CARPET,RR SEAT BACK,L
ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
87790-60G10-5ZJ |
— | ||
|
15
|
15
09409-10302-5PK CLIP(BLACK)ブラック; X,4DR:G; 1994-12-01~1996-03-01 |
09409-10302-5PK |
US $1.28 |
||
|
16
|
16
09387-19001-000 RINGX,4DR:G; 1994-12-01~1996-03-01 |
09387-19001-000 |
US $1.76 |
||
|
17
|
17
87810-70C00-000 HOOK,RR SEAT CUSHIONX,4DR:G; 1994-12-01~1996-03-01 |
87810-70C00-000 |
US $1.76 |
||
|
18
|
18
02142-06163-000
Screw
X,4DR:G; 1994-12-01~1996-03-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0616A-000 SCREWX,4DR:G; 1994-12-01~1996-03-01 |
02142-0616A-000 |
from US $0.76 |
||
|
19
|
19
87860-60G00-000
ヒンジ,リヤバック,センタ
X,4DR:G; 1994-12-01~1996-03-01 |
87860-60G00-000 |
— | ||
|
20
|
20
87865-60G00-000
PROTECTOR,RR SEAT BACK HINGE
X,4DR:G; 1994-12-01~1996-03-01 |
87865-60G00-000 |
— | ||
|
21
|
21
87870-60G00-000
STRIKER,RR SEAT BACK
X,4DR:G; 1994-12-01~1996-03-01 |
87870-60G00-000 |
— | ||
