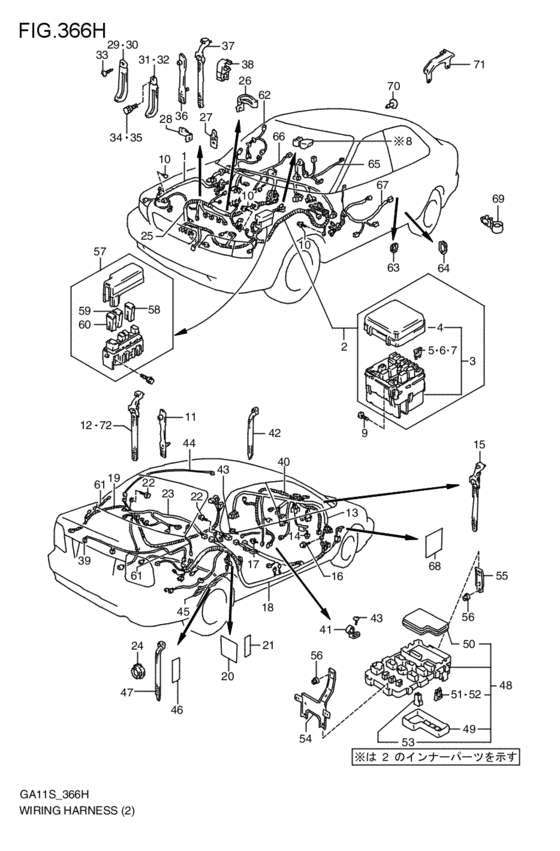

wire ring harness (4DR; 1994-12-01~1996-03-01) Diagram Suzuki CULTUS
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 4DR
- grade
- X
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-61GR0-000
ハーネスアッシ,メインNO.1
ABSナシ; 4DR:MT:X; 1994-12-01~1996-03-01 |
36610-61GR0-000 |
— | ||
|
1
|
1
36610-61GS0-000
ハーネスアッシ,メイン,NO.1
ABSシヨウ; 4DR:MT:X; 1994-12-01~1996-03-01 |
36610-61GS0-000 |
— | ||
|
2
|
2
36910-60G11-000
ハーネスアッシ,メイン,NO.2
4DR:(C,G,X,SA); 1994-12-01~1996-03-01 |
36910-60G11-000 |
— | ||
|
3
|
3
36730-60G00-000 BOX ASSY,RELAY&FUSE4DR; 1994-12-01~1996-03-01 |
36730-60G00-000 |
US $45.63 |
||
|
4
|
4
36738-60G00-000 COVER,RELAY&FUSE BOX4DR; 1994-12-01~1996-03-01 |
36738-60G00-000 |
US $9.38 |
||
|
5
|
5
09481-10101-000 FUSE(10A)4DR; 1994-12-01~1996-03-01 |
09481-10101-000 |
from US $1.28 |
||
|
6
|
6
09481-15101-000 FUSE(15A)Fuse (15a) 4DR; 1994-12-01~1996-03-01 |
09481-15101-000 |
from US $1.28 |
||
|
7
|
7
09481-20101-000 FUSE(20A)4DR; 1994-12-01~1996-03-01 |
09481-20101-000 |
from US $3.35 |
||
|
8
|
8
33553-52E00-000 FILTER,NOISE SUPPR4DR; 1994-12-01~1996-03-01 |
33553-52E00-000 |
US $57.76 |
||
|
9
|
9
02142-06163-000
Screw
4DR; 1994-12-01~1996-03-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0616A-000 SCREW4DR; 1994-12-01~1996-03-01 |
02142-0616A-000 |
from US $0.76 |
||
|
10
|
10
09115-06001-000
Bolt, lh
4DR; 1994-12-01~1996-03-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
10
|
10
09115-06005-000 BOLT(6X16)4DR; 1994-12-01~1996-03-01 |
09115-06005-000 |
US $1.28 |
||
|
11
|
11
09407-05403-000 CLAMP,L:884DR; 1994-12-01~1996-03-01 |
09407-05403-000 |
from US $0.91 |
||
|
11
|
11
09407-05406-000 CLAMP(L:118)4DR; 1994-12-01~1996-03-01 |
09407-05406-000 |
from US $1.06 |
||
|
11
|
11
09407-05408-000
Clamp
4DR; 1994-12-01~1996-03-01 |
09407-05408-000 |
— | ||
|
12
|
12
09407-12404-000 CLAMP(L:140)4DR; 1994-12-01~1996-03-01 |
09407-12404-000 |
US $2.08 |
||
|
13
|
13
36620-60G70-000
ハーネスアッシ,インストゥルメントパネル
エアバックナシ; 4DR:X; 1994-12-01~1996-03-01 |
36620-60G70-000 |
— | ||
|
13
|
13
36620-60G40-000
ハーネスアッシ,インストゥルメントパネル
エアバックツキ; 4DR:X:MT; 1995-06-01~1996-03-01 |
36620-60G40-000 |
— | ||
|
14
|
14
03541-05163-000
Screw
4DR; 1994-12-01~1996-03-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0516A-000 SCREW4DR; 1994-12-01~1996-03-01 |
03541-0516A-000 |
from US $0.76 |
||
|
15
|
15
09407-12404-000 CLAMP(L:140)4DR; 1994-12-01~1996-03-01 |
09407-12404-000 |
US $2.08 |
||
|
16
|
16
01550-08163-000
Bolt, holder
4DR; 1994-12-01~1996-03-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BOLT4DR; 1994-12-01~1996-03-01 |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BOLTBolt, rear 4DR; 1994-12-01~1996-03-01 |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
02142-06123-000
Screw
4DR; 1994-12-01~1996-03-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW4DR; 1994-12-01~1996-03-01 |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW4DR; 1994-12-01~1996-03-01 |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
36630-61GA0-000
ハーネスアッシ,フロアライト
4DR:(A,C,G,X); 1994-12-01~1995-07-01 |
36630-61GA0-000 |
— | ||
| replacement | |||||
|
18
|
18
36630-61GQ0-000
HARNESS ASSY,FLOOR,R
4DR:(A,C,G,X); 1994-12-01~1995-07-01 |
36630-61GQ0-000 |
— | ||
|
18
|
18
36630-61GA1-000
ハーネスアッシ,フロアライト
4DR:(A,C,SA,G,X); 1995-07-01~1996-03-01 |
36630-61GA1-000 |
— | ||
| replacement | |||||
|
18
|
18
36630-61GQ0-000
HARNESS ASSY,FLOOR,R
4DR:(A,C,SA,G,X); 1995-07-01~1996-03-01 |
36630-61GQ0-000 |
— | ||
|
19
|
19
36603-61GA0-000
Harness assy,floor,pass
4DR:(A,C,G,X,SA); 1994-12-01~1996-03-01 |
36603-61GA0-000 |
— | ||
|
20
|
20
36930-60G10-000 COVER4DR; 1994-12-01~1996-03-01 |
36930-60G10-000 |
US $2.13 |
||
|
21
|
21
36930-82000-000
カバー
4DR; 1994-12-01~1996-03-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
21
|
21
36930-82010-000 COVER,HARNESSCover, roof wire 4DR; 1994-12-01~1996-03-01 |
36930-82010-000 |
from US $1.73 |
||
|
22
|
22
09115-06001-000
Bolt, lh
4DR; 1994-12-01~1996-03-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
22
|
22
09115-06005-000 BOLT(6X16)4DR; 1994-12-01~1996-03-01 |
09115-06005-000 |
US $1.28 |
||
|
23
|
23
36640-60G00-000
Harness assy,partition panel
4DR; 1994-12-01~1996-03-01 |
36640-60G00-000 |
— | ||
|
24
|
24
09308-28001-000 GROMMET4DR; 1994-12-01~1996-03-01 |
09308-28001-000 |
US $21.30 |
||
|
25
|
25
36650-60G30-000
ハーネスアッシ,エンジン
4DR:MT; 1994-12-01~1996-03-01 |
36650-60G30-000 |
— | ||
|
26
|
26
36649-60G00-000
CLAMP,HARNESS
4DR; 1995-03-01~1996-03-01 |
36649-60G00-000 |
— | ||
|
27
|
27
36651-60G10-000 BRACKET,ENG HARN4DR; 1994-12-01~1996-03-01 |
36651-60G10-000 |
US $3.61 |
||
|
28
|
28
36651-60G20-000 BRACKET,ENG HARN4DR; 1994-12-01~1996-03-01 |
36651-60G20-000 |
US $5.48 |
||
|
29
|
29
09404-06433-000
CLAMP(L:80)
4DR; 1994-12-01~1996-03-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
29
|
29
09404-06434-000
CLAMP(L:80 T:1.0)
4DR; 1994-12-01~1996-03-01 |
09404-06434-000 |
— | ||
|
29
|
29
09404-06436-000 Clamp(L:80)4DR; 1994-12-01~1996-03-01 |
09404-06436-000 |
US $2.13 |
||
|
29
|
29
09404-06036-000 Clamp(L:80)4DR; 1994-12-01~1996-03-01 |
09404-06036-000 |
from US $1.82 |
||
|
30
|
30
09404-08419-000 CLAMP(L:80)4DR; 1994-12-01~1996-03-01 |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
30
|
30
09404-08422-000 Clamp,wiring Harness4DR; 1994-12-01~1996-03-01 |
09404-08422-000 |
from US $3.62 |
||
|
32
|
32
09404-10416-000
クランプ,L:82
4DR:5MT; 1994-12-01~1996-03-01 |
09404-10416-000 |
— | ||
| replacement | |||||
|
32
|
32
09404-10205-000 CLAMP(L:82)Clamp, lead 4DR:5MT; 1994-12-01~1996-03-01 |
09404-10205-000 |
US $1.28 |
||
|
33
|
33
01550-06103-000
Bolt, front
4DR; 1994-12-01~1996-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0610B-000 BoltBolt 4DR; 1994-12-01~1996-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
33
|
33
01550-0610A-000 BOLT4DR; 1994-12-01~1996-03-01 |
01550-0610A-000 |
from US $0.80 |
||
|
36
|
36
09407-05403-000 CLAMP,L:884DR; 1994-12-01~1996-03-01 |
09407-05403-000 |
from US $0.91 |
||
|
37
|
37
09407-12404-000 CLAMP(L:140)4DR; 1994-12-01~1996-03-01 |
09407-12404-000 |
US $2.08 |
||
|
38
|
38
09408-00111-000 CLAMP4DR; 1994-12-01~1996-03-01 |
09408-00111-000 |
US $2.08 |
||
|
39
|
39
36670-60G00-000
Harness assy,trunk
4DR; 1994-12-01~1996-03-01 |
36670-60G00-000 |
— | ||
|
40
|
40
36690-60G00-000
ハーネスアッシ,エアバッグ
エアバックツキ; 4DR:(S,G,X); 1994-12-01~1995-09-01 |
36690-60G00-000 |
— | ||
|
40
|
40
36690-60G01-000
HARNESS ASSY,AIR BAG
エアバックツキ; 4DR:(S,G,X); 1995-09-01~1996-03-01 |
36690-60G01-000 |
— | ||
|
41
|
41
09403-12316-000
CLAMP
エアバックツキ; 4DR:(S,G,X); 1994-12-01~1996-03-01 |
09403-12316-000 |
— | ||
| replacement | |||||
|
41
|
41
09403-12419-000 Clampエアバックツキ; 4DR:(S,G,X); 1994-12-01~1996-03-01 |
09403-12419-000 |
US $29.10 |
||
|
42
|
42
09407-18403-000
Clamp, switch wire
エアバックツキ; 4DR:(S,G,X); 1994-12-01~1996-03-01 |
09407-18403-000 |
— | ||
| replacement | |||||
|
42
|
42
09407-18402-000 CLAMP(L:165)Clamp (l:165) エアバックツキ; 4DR:(S,G,X); 1994-12-01~1996-03-01 |
09407-18402-000 |
from US $1.98 |
||
|
43
|
43
09129-06006-000 SCREW(6X18)エアバックツキ; 4DR:(S,G,X); 1994-12-01~1996-03-01 |
09129-06006-000 |
US $14 |
||
|
44
|
44
36820-60G00-000
WIRE,DOME LAMP
4DR; 1994-12-01~1996-03-01 |
36820-60G00-000 |
— | ||
|
45
|
45
36840-60G00-000
Wire comp,fuel pump
4DR:2WD; 1994-12-01~1996-03-01 |
36840-60G00-000 |
— | ||
|
46
|
46
36930-82000-000
カバー
4DR; 1994-12-01~1996-03-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
46
|
46
36930-82010-000 COVER,HARNESSCover, roof wire 4DR; 1994-12-01~1996-03-01 |
36930-82010-000 |
from US $1.73 |
||
|
47
|
47
09407-14408-000 CLAMP(L:120)4DR; 1994-12-01~1996-03-01 |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
47
|
47
09407-17402-000 CLAMP4DR; 1994-12-01~1996-03-01 |
09407-17402-000 |
from US $1.98 |
||
|
48
|
48
36710-60G00-000
ボックスアッシ,ジャンクション
4DR; 1994-12-01~1995-02-01 |
36710-60G00-000 |
— | ||
| replacement | |||||
|
48
|
48
36710-60G02-000
BOX ASSY,JUNCTION
4DR; 1994-12-01~1995-02-01 |
36710-60G02-000 |
— | ||
|
48
|
48
36710-60G01-000
ボックスアッシ,ジャンクション
4DR; 1995-03-01~1996-03-01 |
36710-60G01-000 |
— | ||
| replacement | |||||
|
48
|
48
36710-60G02-000
BOX ASSY,JUNCTION
4DR; 1995-03-01~1996-03-01 |
36710-60G02-000 |
— | ||
|
49
|
49
36717-60G00-000
カバー,フューズボックス
4DR; 1994-12-01~1996-03-01 |
36717-60G00-000 |
— | ||
| replacement | |||||
|
49
|
49
36717-60G01-000
COVER,FUSE BOX
4DR; 1994-12-01~1996-03-01 |
36717-60G01-000 |
— | ||
|
50
|
50
38590-60G00-000
BUZZER,WARNING
4DR; 1994-12-01~1996-03-01 |
38590-60G00-000 |
— | ||
|
51
|
51
09481-15101-000 FUSE(15A)Fuse (15a) 4DR; 1994-12-01~1996-03-01 |
09481-15101-000 |
from US $1.28 |
||
|
52
|
52
09481-20101-000 FUSE(20A)4DR; 1994-12-01~1996-03-01 |
09481-20101-000 |
from US $3.35 |
||
|
53
|
53
09481-30104-000
フューズ,30A
4DR; 1994-12-01~1996-03-01 |
09481-30104-000 |
— | ||
| replacement | |||||
|
53
|
53
09481-30401-000 FUSE(30A)4DR; 1994-12-01~1996-03-01 |
09481-30401-000 |
from US $9.98 |
||
|
54
|
54
36715-60G00-000
BRACKET,JUNCTION BOX NO.1
4DR; 1994-12-01~1996-03-01 |
36715-60G00-000 |
— | ||
|
55
|
55
36715-60G10-000
ブラケット,J/BNO.2
4DR; 1994-12-01~1996-03-01 |
36715-60G10-000 |
— | ||
| replacement | |||||
|
55
|
55
36715-60G11-000
BRACKET,JUNCTION BOX NO.2
4DR; 1994-12-01~1996-03-01 |
36715-60G11-000 |
— | ||
|
56
|
56
08316-10063-000
Nut
4DR; 1994-12-01~1996-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
56
|
56
08316-1006B-000 NUT4DR; 1994-12-01~1996-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
57
|
57
36740-60G00-000 BOX ASSY,MAIN FUSE4DR; 1994-12-01~1996-03-01 |
36740-60G00-000 |
US $91.63 |
||
|
58
|
58
09481-30201-000
Fuse assy,30a
4DR; 1994-12-01~1996-03-01 |
09481-30201-000 |
— | ||
| replacement | |||||
|
58
|
58
09481-30203-000 FUSE(30A)4DR; 1994-12-01~1996-03-01 |
09481-30203-000 |
US $13.92 |
||
|
59
|
59
09481-60201-000
フューズ,60A
4DR; 1994-12-01~1996-03-01 |
09481-60201-000 |
— | ||
| replacement | |||||
|
59
|
59
09481-60202-000 FUSE(60A)4DR; 1994-12-01~1996-03-01 |
09481-60202-000 |
US $13.92 |
||
|
60
|
60
09481-80301-000 FUSE(80A)4DR; 1994-12-01~1996-03-01 |
09481-80301-000 |
US $10.08 |
||
|
61
|
61
36890-60G00-000 WIRE,RR DF4DR; 1994-12-01~1996-03-01 |
36890-60G00-000 |
US $6.84 |
||
|
65
|
65
36751-60G20-000
WIRE,P/W RR
4DR:(C,G,X,S,SA); 1994-12-01~1996-03-01 |
36751-60G20-000 |
— | ||
|
66
|
66
36756-60G50-000
ワイヤ,パワーウィンド,メイン
4DR:(C,G,X,S); 1994-12-01~1995-07-01 |
36756-60G50-000 |
— | ||
| replacement | |||||
|
66
|
66
36756-60G51-000
Wire,power window,main
4DR:(C,G,X,S); 1994-12-01~1995-07-01 |
36756-60G51-000 |
— | ||
|
66
|
66
36756-60G51-000
Wire,power window,main
4DR:(C,G,X,S,SA); 1995-07-01~1996-03-01 |
36756-60G51-000 |
— | ||
|
67
|
67
36757-60G50-000
WIRE,P/W SUB
4DR:(C,G,X,S,SA); 1994-12-01~1996-03-01 |
36757-60G50-000 |
— | ||
|
68
|
68
36930-60G10-000 COVER4DR; 1994-12-01~1996-03-01 |
36930-60G10-000 |
US $2.13 |
||
|
69
|
69
34935-60D00-000
CLAMP,HARN NO.1 STRUT
4DR; 1994-12-01~1996-03-01 |
34935-60D00-000 |
— | ||
|
70
|
70
09409-10302-5PK CLIP(BLACK)ブラック; 4DR; 1994-12-01~1996-03-01 |
09409-10302-5PK |
US $1.28 |
||
|
71
|
71
36649-60G10-000 BRACKET,ENG HARN4DR; 1995-03-01~1996-03-01 |
36649-60G10-000 |
US $5.70 |
||
|
72
|
72
09407-12404-000 CLAMP(L:140)4DR; 1995-03-01~1996-03-01 |
09407-12404-000 |
US $2.08 |
||
