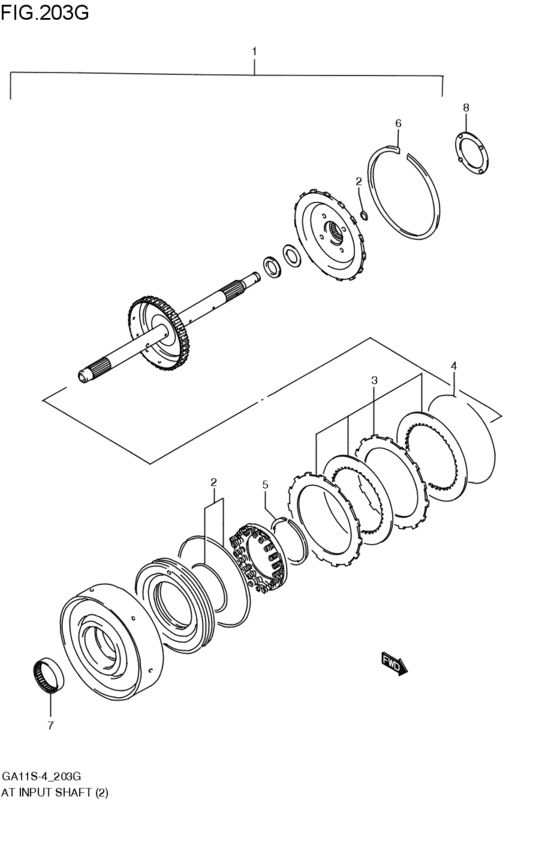

at - input shaft (4AT; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TR1
- number of the gears
- 4AT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-65GT0-000
SHAFT SET,INPUT
4AT; 1998-05-01~2000-02-01 |
24111-65GT0-000 |
— | ||
|
2
|
2
26813-65GT0-000 O-RING SET,REVERSE CLUTCH4AT; 1998-05-01~2000-02-01 |
26813-65GT0-000 |
US $28.70 |
||
|
3
|
3
26819-65GT0-000 PLATE SET,REVERSE CLUTCH4AT; 1998-05-01~2000-02-01 |
26819-65GT0-000 |
US $252.08 |
||
|
4
|
4
26817-60G10-000 RING,REVERSE CLUTCH SNAP4AT; 1998-05-01~2000-02-01 |
26817-60G10-000 |
US $4.75 |
||
|
5
|
5
26823-65G10-000 RING,REV CL RETAINING4AT; 1998-05-01~2000-02-01 |
26823-65G10-000 |
US $5.74 |
||
|
6
|
6
24192-65G10-000 RING,SUN GEAR INPUT SNAP4AT; 1998-05-01~2000-02-01 |
24192-65G10-000 |
US $17.70 |
||
|
7
|
7
24171-60G10-000
BEARING,INPUT SHAFT FR
4AT; 1998-05-01~2000-02-01 |
24171-60G10-000 |
— | ||
|
8
|
8
26825-60G10-000 WASHER,REV CL THRUST RR4AT; 1998-05-01~2000-02-01 |
26825-60G10-000 |
US $5.96 |
