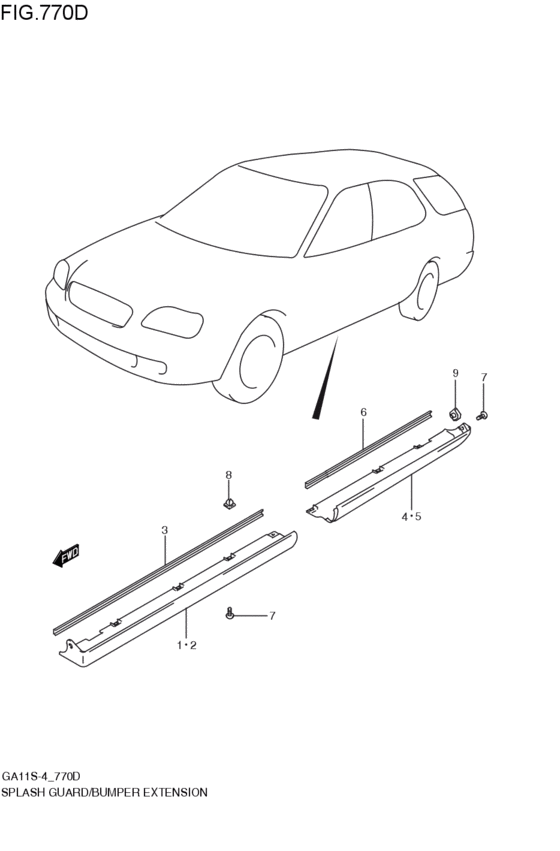

splash guard / bumper extension (5DR; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TR1
- number of the gears
- 5MT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77231-65G01-799
ガード,スプラッシュフロント,ライト(プライマリー)
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77231-65G01-799 |
— | ||
| replacement | |||||
|
1
|
1
77231-65G02-799
GUARD,SPL FR,R
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77231-65G02-799 |
— | ||
|
2
|
2
77241-65G01-799
ガード,スプラッシュフロント,レフト(プライマリー)
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77241-65G01-799 |
— | ||
| replacement | |||||
|
2
|
2
77241-65G02-799
GUARD,SPL FR,L
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77241-65G02-799 |
— | ||
|
3
|
3
77232-65G00-Z1Z
PROTECTOR,GUARD EDGE
ブルー,T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z1Z |
— | ||
|
3
|
3
77232-65G00-Z2A
Protector,guard edge
ワイン,T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z2A |
— | ||
|
3
|
3
77232-65G00-Z2S PROTECTOR,GUARD EDGEシルバ-,T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z2S |
US $21.34 |
||
|
3
|
3
77232-65G00-26U
PROTECTOR,GUARD EDGE
ホワイト,T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-26U |
— | ||
|
3
|
3
77232-65G01-Z1Z
PROTECTOR,GUARD EDGE
ブルー,T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z1Z |
— | ||
|
3
|
3
77232-65G01-Z2A
PROTECTOR,GUARD EDGE
ワイン,T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z2A |
— | ||
|
3
|
3
77232-65G01-Z2S
PROTECTOR,GUARD EDGE
シルバ-,T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z2S |
— | ||
|
3
|
3
77232-65G01-26U
PROTECTOR,GUARD EDGE
ホワイト,T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-26U |
— | ||
|
4
|
4
77251-65G01-799
ガード,スプラッシュリヤ,ライト(プライマリー)
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77251-65G01-799 |
— | ||
| replacement | |||||
|
4
|
4
77251-65G02-799
GUARD,SPL RR,R
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77251-65G02-799 |
— | ||
|
5
|
5
77261-65G01-799
ガード,スプラッシュリヤ,レフト(プライマリー)
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77261-65G01-799 |
— | ||
| replacement | |||||
|
5
|
5
77261-65G02-799
GUARD,SPL RR,L
プライマリ-; 5DR:(TR,TZ); 1998-05-01~2000-02-01 |
77261-65G02-799 |
— | ||
|
6
|
6
77232-65G00-Z1Z
PROTECTOR,GUARD EDGE
ブルー,L:1130>680 T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z1Z |
— | ||
|
6
|
6
77232-65G00-Z2A
Protector,guard edge
ワイン,L:1130>680 T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z2A |
— | ||
|
6
|
6
77232-65G00-Z2S PROTECTOR,GUARD EDGEシルバ-,L:1130>680 T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-Z2S |
US $21.34 |
||
|
6
|
6
77232-65G00-26U
PROTECTOR,GUARD EDGE
ホワイト,L:1130>680 T:2; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G00-26U |
— | ||
|
6
|
6
77232-65G01-Z1Z
PROTECTOR,GUARD EDGE
ブルー,L:1130>680 T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z1Z |
— | ||
|
6
|
6
77232-65G01-Z2A
PROTECTOR,GUARD EDGE
ワイン,L:1130>680 T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z2A |
— | ||
|
6
|
6
77232-65G01-Z2S
PROTECTOR,GUARD EDGE
シルバ-,L:1130>680 T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-Z2S |
— | ||
|
6
|
6
77232-65G01-26U
PROTECTOR,GUARD EDGE
ホワイト,L:1130>680 T:4; 5DR:(TR:(TR1,TR-4)); 1998-05-01~2000-02-01 |
77232-65G01-26U |
— | ||
|
7
|
7
03142-05203-000
Screw
5DR:(TR,TZ); 1998-05-01~2000-02-01 |
03142-05203-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW5DR:(TR,TZ); 1998-05-01~2000-02-01 |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
09148-05018-000 NUT5DR:(TR,TZ); 1998-05-01~2000-02-01 |
09148-05018-000 |
from US $0.63 |
||
|
9
|
9
09148-05028-000 NUT5DR:(TR,TZ); 1998-05-01~2000-02-01 |
09148-05028-000 |
US $1.28 |
||
