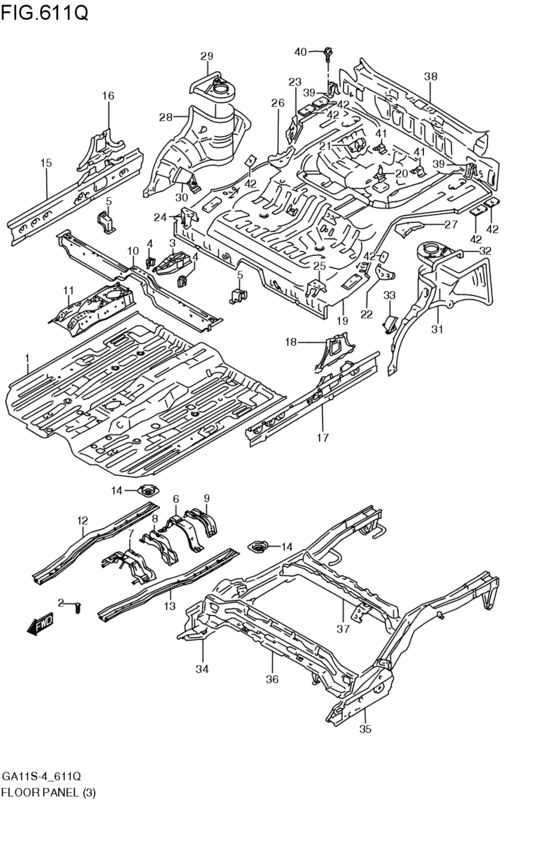

floor panel (リヤフロア パン / メインフロア パン; 5DR; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- SA4
- number of the gears
- 5MT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-65G00-000
Panel,main floor
5DR; 1998-05-01~2000-02-01 |
61111-65G00-000 |
— | ||
|
2
|
2
09119-05018-000 BOLT(8X35)5DR; 1998-05-01~2000-02-01 |
09119-05018-000 |
US $9.60 |
||
|
3
|
3
61120-60B00-000
ブラケット,パーキングレバー
5DR; 1998-05-01~2000-02-01 |
61120-60B00-000 |
— | ||
|
4
|
4
61131-60G00-000
Bracket,front seat inside
5DR; 1998-05-01~2000-02-01 |
61131-60G00-000 |
— | ||
|
5
|
5
61141-60B00-000
Bracket,fr seat outside
5DR; 1998-05-01~2000-02-01 |
61141-60B00-000 |
— | ||
|
6
|
6
61151-60G00-000
リンフォースメント,フロントシートインサイド
5DR; 1998-05-01~2000-02-01 |
61151-60G00-000 |
— | ||
|
7
|
7
61160-60G01-000
ブラケット,マフラセンタ
5DR; 1998-05-01~2000-02-01 |
61160-60G01-000 |
— | ||
|
10
|
10
61210-60G01-000
CROSSMEMBER,FL PAN UPPER
5DR; 1998-05-01~2000-02-01 |
61210-60G01-000 |
— | ||
|
11
|
11
61221-60G03-000
REINFORCEMENT,FL PANEL UPR
5DR:MT:2WD:G15A; 1998-05-01~2000-02-01 |
61221-60G03-000 |
— | ||
|
12
|
12
61351-60G01-000
Member,floor side,r
5DR; 1998-05-01~2000-02-01 |
61351-60G01-000 |
— | ||
|
13
|
13
61356-60G01-000
Member,floor side,l
5DR; 1998-05-01~2000-02-01 |
61356-60G01-000 |
— | ||
|
14
|
14
61353-65G00-000
BRACKET,BODY MTG
5DR; 1998-05-01~2000-02-01 |
61353-65G00-000 |
— | ||
|
15
|
15
61310-60G02-000
PANEL,SIDE SILL INNER,R
5DR; 1998-05-01~2000-02-01 |
61310-60G02-000 |
— | ||
|
16
|
16
61312-60G01-000
EXTENSION,MAIN FL SIDE,R
5DR; 1998-05-01~2000-02-01 |
61312-60G01-000 |
— | ||
|
17
|
17
61320-60G02-000
PANEL,SIDE SILL INNER,L
5DR; 1998-05-01~2000-02-01 |
61320-60G02-000 |
— | ||
|
18
|
18
61317-60G01-000
EXTENSION,MAIN FL SIDE,L
5DR; 1998-05-01~2000-02-01 |
61317-60G01-000 |
— | ||
|
19
|
19
61511-63GV0-000
Pan,rear floor
5DR; 1998-05-01~2000-02-01 |
61511-63GV0-000 |
— | ||
|
20
|
20
61518-60G00-000
BRACKET,SPARE TIRE
5DR; 1998-05-01~2000-02-01 |
61518-60G00-000 |
— | ||
|
21
|
21
61521-72C00-000 BRACKET,JACK5DR; 1998-05-01~2000-02-01 |
61521-72C00-000 |
US $7.21 |
||
|
22
|
22
61530-60G01-000
REINFORCEMENT,RR SEAT BELT
5DR; 1998-05-01~2000-02-01 |
61530-60G01-000 |
— | ||
|
23
|
23
61571-63G00-000
エクステンション,リヤフロアサイド,ライト
5DR; 1998-05-01~2000-02-01 |
61571-63G00-000 |
— | ||
| replacement | |||||
|
23
|
23
61571-54G00-000
EXTENSION,RR FLOOR SIDE,R
5DR; 1998-05-01~2000-02-01 |
61571-54G00-000 |
— | ||
|
24
|
24
61581-60G00-000
BRACKET,SEAT SIDE,R
5DR; 1998-05-01~2000-02-01 |
61581-60G00-000 |
— | ||
|
25
|
25
61582-60G00-000
BRACKET,SEAT SIDE,L
5DR; 1998-05-01~2000-02-01 |
61582-60G00-000 |
— | ||
|
26
|
26
61591-63G01-000
REINFORCEMENT,RR FL UPR,R
5DR; 1998-05-01~2000-02-01 |
61591-63G01-000 |
— | ||
|
27
|
27
61592-63G01-000
REINFORCEMENT,RR FL UPR,L
5DR; 1998-05-01~2000-02-01 |
61592-63G01-000 |
— | ||
|
28
|
28
61611-55G00-000 PANEL,RR WHEEL HOUSE INR,R5DR; 1998-05-01~2000-02-01 |
61611-55G00-000 |
US $90.53 |
||
|
29
|
29
61612-60G10-000 BRACKET,RR STRUT,R5DR; 1998-05-01~2000-02-01 |
61612-60G10-000 |
US $60.35 |
||
|
30
|
30
61630-64G10-000
BRACKET,RR SEAT HNG,R
5DR; 1998-05-01~2000-02-01 |
61630-64G10-000 |
— | ||
|
31
|
31
61661-55G00-000
PANEL,RR WHEEL HOUSE INR,L
5DR; 1998-05-01~2000-02-01 |
61661-55G00-000 |
— | ||
|
32
|
32
61662-60G10-000 BRACKET,RR STRUT,L5DR; 1998-05-01~2000-02-01 |
61662-60G10-000 |
US $60.35 |
||
|
33
|
33
61640-64G10-000
BRACKET,RR SEAT HNG,L
5DR; 1998-05-01~2000-02-01 |
61640-64G10-000 |
— | ||
|
34
|
34
62110-63G01-000
MEMBER,RR FL SIDE,R
5DR; 1998-05-01~2000-02-01 |
62110-63G01-000 |
— | ||
|
35
|
35
62310-63G01-000
Member comp,rear floor side,l
5DR; 1998-05-01~2000-02-01 |
62310-63G01-000 |
— | ||
|
36
|
36
62610-60G11-000
CROSSMEMBER,RR FL,FR
5DR; 1998-05-01~2000-02-01 |
62610-60G11-000 |
— | ||
|
37
|
37
62710-60G30-000
CROSSMEMBER,RR FL CTR
5DR:2WD; 1998-05-01~2000-02-01 |
62710-60G30-000 |
— | ||
|
38
|
38
65500-63G00-000 PANEL,BACK5DR; 1998-05-01~2000-02-01 |
65500-63G00-000 |
US $155.30 |
||
|
39
|
39
75425-63G00-000
BRACKET,RR FLOOR UPR PLATE
5DR; 1998-05-01~2000-02-01 |
75425-63G00-000 |
— | ||
|
40
|
40
02162-06123-000
Bolt (6x12)
5DR; 1998-05-01~2000-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
02162-0612B-000 SCREWBolt 5DR; 1998-05-01~2000-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
40
|
40
02162-0612A-000 SCREWBolt, bracket 5DR; 1998-05-01~2000-02-01 |
02162-0612A-000 |
from US $0.80 |
||
|
41
|
41
58122-83001-000
BRACKET,BACK PANERL TRIM
5DR; 1998-05-01~2000-02-01 |
58122-83001-000 |
— | ||
|
42
|
42
61117-51F00-000 PLATE,REAR FLOOR UPPER5DR; 1998-05-01~2000-02-01 |
61117-51F00-000 |
US $4.05 |
||
