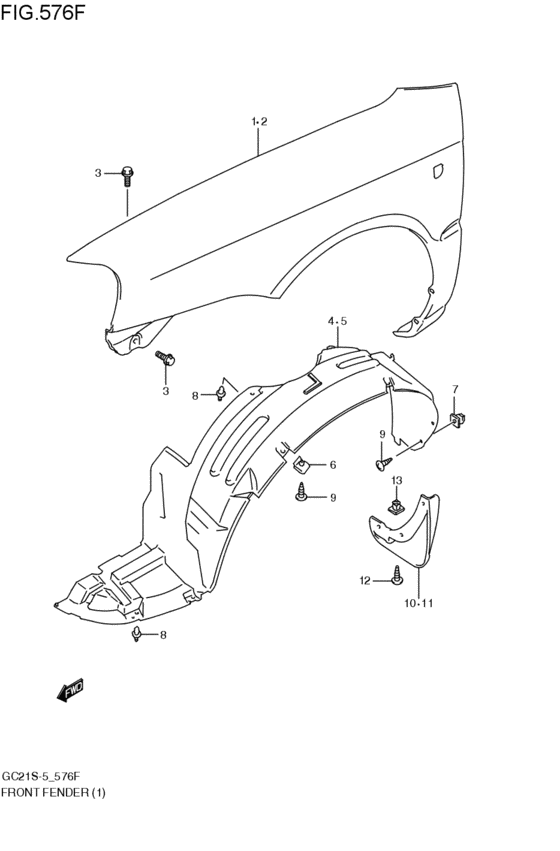

front fender (TS; 2000-05-01~2002-07-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-65G00-000
PANEL,FR FENDER,RH
TS; 2000-05-01~2002-07-01 |
57611-65G00-000 |
— | ||
|
2
|
2
57711-65G00-000 PANEL,FR FENDER,LHTS; 2000-05-01~2002-07-01 |
57711-65G00-000 |
US $608 |
||
|
3
|
3
02162-06123-000
Bolt (6x12)
TS; 2000-05-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt TS; 2000-05-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket TS; 2000-05-01~2002-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
72311-65G00-000 LINING,FR FENDER,RTS; 2000-05-01~2002-07-01 |
72311-65G00-000 |
US $233.60 |
||
|
5
|
5
72316-65G00-000 LINING,FR FENDER,LTS; 2000-05-01~2002-07-01 |
72316-65G00-000 |
US $233.60 |
||
|
6
|
6
72312-60B01-000 NUT,FR FENDER LININGTS; 2000-05-01~2002-07-01 |
72312-60B01-000 |
US $1.60 |
||
|
7
|
7
09148-05018-000 NUTTS; 2000-05-01~2002-07-01 |
09148-05018-000 |
US $0.91 |
||
|
8
|
8
09409-07308-5PK CLIP(BLACK)ブラック; TS; 2000-05-01~2002-07-01 |
09409-07308-5PK |
US $1.76 |
||
|
9
|
9
03142-05203-000
Screw
TS; 2000-05-01~2002-07-01 |
03142-05203-000 |
— | ||
| replacement | |||||
|
9
|
9
03142-0520B-000 SCREWTS; 2000-05-01~2002-07-01 |
03142-0520B-000 |
from US $0.80 |
||
|
10
|
10
72210-60G00-5PK FLAP,MUD FR,Rブラック; TS; 2000-05-01~2002-07-01 |
72210-60G00-5PK |
US $29.62 |
||
|
11
|
11
72220-60G00-5PK FLAP,MUD FR,Lブラック; TS; 2000-05-01~2002-07-01 |
72220-60G00-5PK |
US $39.38 |
||
|
12
|
12
09136-05034-000 SCREW(5X16)TS; 2000-05-01~2002-07-01 |
09136-05034-000 |
from US $1.28 |
||
|
13
|
13
09148-05018-000 NUTTS; 2000-05-01~2002-07-01 |
09148-05018-000 |
US $0.91 |
||
