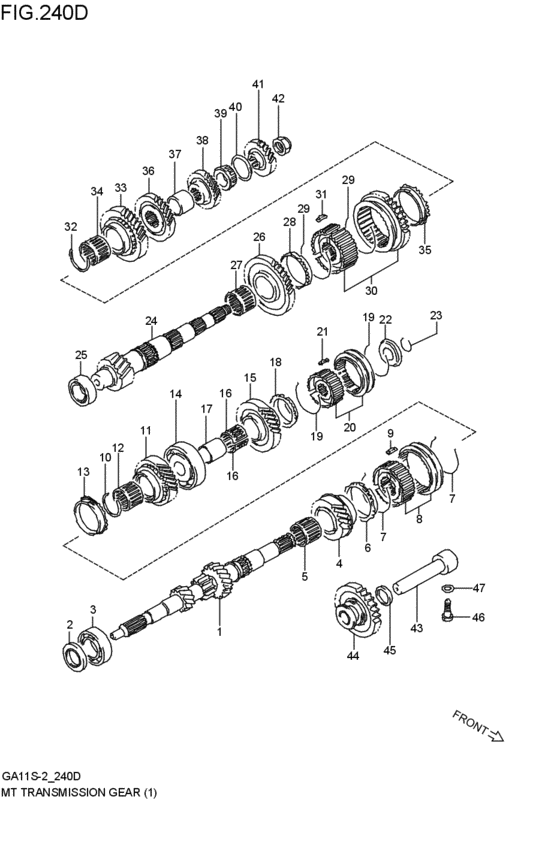

mt - transmission gear (MT:(G13B,G15A); 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- T
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-60B50-000
シャフト,トランスミッションインプット
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24111-60B50-000 |
— | ||
| replacements | |||||
|
1
|
1
24111-60B51-000 SHAFT,T/M INPUTMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24111-60B51-000 |
US $285.20 |
||
|
1
|
1
24284-60B20-000 BEARING,4TH GEAR NDLMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24284-60B20-000 |
US $14.40 |
||
|
2
|
2
24151-73B01-000 SEAL,INPUT SHAFT OILMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24151-73B01-000 |
from US $3.04 |
||
|
3
|
3
09262-20099-000 BEARING(20X47X14)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09262-20099-000 |
from US $25.04 |
||
|
4
|
4
24230-60B10-000
ギヤ,インプットシャフト,サード
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24230-60B10-000 |
— | ||
| replacement | |||||
|
4
|
4
24230-60B13-000 GEAR,INPUT SFT 3RDMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24230-60B13-000 |
US $112.48 |
||
|
5
|
5
09263-25053-000 BEARING(25X30X23.8)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09263-25053-000 |
from US $14.40 |
||
|
6
|
6
24432-60B20-000 RING,HIGH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24432-60B20-000 |
from US $20.07 |
||
|
7
|
7
24442-60B00-000 SPRING,HIGH SPEED SYNCCHKK; MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24442-60B00-000 |
from US $1.58 |
||
|
8
|
8
24410-63B20-000
ハブアッシ,ハイスピードシンクロナイザ
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24410-63B20-000 |
— | ||
| replacement | |||||
|
8
|
8
24410-72J41-000 HUB ASSY,HIGH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24410-72J41-000 |
from US $93.87 |
||
|
9
|
9
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24472-60B00-000 |
from US $1.92 |
||
|
10
|
10
24452-60B00-000 CIRCLIP,HIGH SPEED SYNC HUBMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24452-60B00-000 |
from US $1.60 |
||
|
11
|
11
24240-60B00-000 GEAR,INPUT SHAFT 4THMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24240-60B00-000 |
US $149.60 |
||
|
12
|
12
09263-25053-000 BEARING(25X30X23.8)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09263-25053-000 |
from US $14.40 |
||
|
13
|
13
24432-60B20-000 RING,HIGH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24432-60B20-000 |
from US $20.07 |
||
|
14
|
14
09262-20101-000
ベアリング,20X62X16
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09262-20101-000 |
— | ||
| replacement | |||||
|
14
|
14
24126-83E00-000 BEARING,INPUT SHAFT,LMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24126-83E00-000 |
from US $30.40 |
||
|
15
|
15
24114-60B51-000
ギヤ,インプットシャフト,フィフス
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24114-60B51-000 |
— | ||
| replacement | |||||
|
15
|
15
24114-60B52-000 GEAR,INPUT SHAFT 5THMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24114-60B52-000 |
from US $80.48 |
||
|
16
|
16
24801-60830-000
Bearing set,5th gear ndl
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24801-60830-000 |
— | ||
| replacement | |||||
|
16
|
16
24801-60831-000 BEARING SET,5TH GEAR NDLMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24801-60831-000 |
from US $8.01 |
||
|
17
|
17
24119-60B51-000 SPACER,INPUT SHAFT 5TH GEARMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24119-60B51-000 |
US $16.56 |
||
|
18
|
18
24432-84041-000 RING,5TH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24432-84041-000 |
from US $18.52 |
||
|
19
|
19
24443-60B50-000 SPRING,5TH SPEED SYNCCHKK; MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24443-60B50-000 |
from US $1.60 |
||
|
20
|
20
24420-60B51-000
ハブアッシ,フィフススピードシンクロナイザ
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24420-60B51-000 |
— | ||
| replacement | |||||
|
20
|
20
24420-72J20-000 HUB ASSY,5TH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24420-72J20-000 |
from US $79.83 |
||
|
21
|
21
24473-60B00-000
キー,フィフススピードシンクロナイザ
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24473-60B00-000 |
— | ||
| replacement | |||||
|
21
|
21
24473-72J00-000 KEY,5TH SPEED SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24473-72J00-000 |
US $1.92 |
||
|
22
|
22
24415-60B50-000
Plate,5th sync hub
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24415-60B50-000 |
— | ||
| replacement | |||||
|
22
|
22
24415-60B51-000 PLATE,5TH SYNC HUBMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24415-60B51-000 |
US $7.52 |
||
|
23
|
23
09380-19004-000 RING,SNAPMT:(G13B,G15A); 1996-02-01~1997-03-01 |
09380-19004-000 |
from US $1.64 |
||
|
24
|
24
24131-64B51-000 SHAFT,T/M COUNTERMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24131-64B51-000 |
US $263.12 |
||
|
25
|
25
09265-25036-000 BEARING(25X47X17)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09265-25036-000 |
from US $36 |
||
|
26
|
26
24311-63B00-000 GEAR,CTSHFT 1STMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24311-63B00-000 |
US $161.12 |
||
|
27
|
27
09263-30030-000 BEARING(30X35X24.8)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09263-30030-000 |
from US $10.18 |
||
|
28
|
28
24431-60B00-000 RING,1ST GEAR SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24431-60B00-000 |
from US $19.26 |
||
|
29
|
29
24441-60B00-000 SPRING,LOW SPEED SYNCCHKK; MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24441-60B00-000 |
from US $1.58 |
||
|
30
|
30
24400-63860-000
Hub set,low speed
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24400-63860-000 |
— | ||
| replacement | |||||
|
30
|
30
24400-63861-000 HUB SET,LOW SPEEDMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24400-63861-000 |
from US $174.98 |
||
|
31
|
31
24471-60B00-000 KEY,LOW SPEED SYNCHRONIZERMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24471-60B00-000 |
from US $1.92 |
||
|
32
|
32
24451-60B00-000 CIRCLIPMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24451-60B00-000 |
from US $1.60 |
||
|
33
|
33
24321-60B00-000 GEAR,CTSHFT 2NDMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24321-60B00-000 |
US $192 |
||
|
34
|
34
09263-30030-000 BEARING(30X35X24.8)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09263-30030-000 |
from US $10.18 |
||
|
35
|
35
24431-63B20-000 RING,2ND GEAR SYNCMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24431-63B20-000 |
from US $20.45 |
||
|
36
|
36
24331-60B00-000 GEAR,CTSHFT 3RDMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24331-60B00-000 |
US $96.42 |
||
|
37
|
37
24336-60B00-000 SPACER,3RD&4TH GEARMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24336-60B00-000 |
US $17.37 |
||
|
38
|
38
24341-60B00-000 GEAR,CTSHFT 4THMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24341-60B00-000 |
US $115.92 |
||
|
39
|
39
09265-20005-000 BEARING(20X42X15)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09265-20005-000 |
from US $36.70 |
||
|
40
|
40
09181-33001-000 SHIM(33.5X41.8X0.55)Washer (t:1.5) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33001-000 |
US $1.82 |
||
|
40
|
40
09181-33002-000 SHIM(33.5X41.8X0.6)Shim (t:0.6) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33002-000 |
US $1.82 |
||
|
40
|
40
09181-33003-000 SHIM(33.5X41.8X0.65)Waserh (t:0.65) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33003-000 |
US $1.82 |
||
|
40
|
40
09181-33004-000 SHIM(33.5X41.8X0.7)Shim (t:0.7) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33004-000 |
US $1.82 |
||
|
40
|
40
09181-33005-000 SHIM(33.5X41.8X0.75)Washer (t:0.75) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33005-000 |
US $1.82 |
||
|
40
|
40
09181-33006-000 SHIM(33.5X41.8X0.8)Shim (t:0.8) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33006-000 |
from US $2.03 |
||
|
40
|
40
09181-33007-000 SHIM(33.5X41.8X0.85)Washer (t:0.85) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33007-000 |
US $1.82 |
||
|
40
|
40
09181-33008-000 SHIM(33.5X41.8X0.9)Shim (t:0.9) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33008-000 |
US $1.82 |
||
|
40
|
40
09181-33009-000 SHIM(33.5X41.8X0.95)Washer (t:0.95) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09181-33009-000 |
US $22.40 |
||
|
40
|
40
09160-33003-000 WASHER(33.5X41.8X1)Washer (t:1.00) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09160-33003-000 |
US $27.20 |
||
|
40
|
40
09160-33004-000 WASHER(33.5X41.8X1.05)Washer (t:1.05) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09160-33004-000 |
US $27.20 |
||
|
40
|
40
09160-33005-000 WASHER(33.5X41.8X1.1)Washer (t:1.10) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09160-33005-000 |
US $27.20 |
||
|
40
|
40
09160-33006-000 WASHER(33.5X41.8X1.15)Washer (t:1.15) MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09160-33006-000 |
US $27.20 |
||
|
40
|
40
09170-33421-040 SHIM(33.5X41.8X0.4)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09170-33421-040 |
US $23.90 |
||
|
40
|
40
09170-33421-045 SHIM(33.5X41.8X0.45)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09170-33421-045 |
US $23.90 |
||
|
40
|
40
09170-33421-050 SHIM(33.5X41.8X0.5)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09170-33421-050 |
US $18 |
||
|
41
|
41
24351-60B51-000 GEAR,CTSHFT 5THMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24351-60B51-000 |
US $89.60 |
||
|
42
|
42
09159-16014-000 NUTMT:(G13B,G15A); 1996-02-01~1997-03-01 |
09159-16014-000 |
from US $1.97 |
||
|
43
|
43
24550-60B00-000
Shaft comp,t/m rev gear
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24550-60B00-000 |
— | ||
| replacement | |||||
|
43
|
43
24550-60B01-000 SHAFT,T/M REVERSE GEARMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24550-60B01-000 |
US $22.05 |
||
|
44
|
44
24560-63B00-000
ギヤ,リバースアイドラ
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
24560-63B00-000 |
— | ||
| replacement | |||||
|
44
|
44
24560-63B41-000 GEAR,REV IDLERMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24560-63B41-000 |
US $72.21 |
||
|
45
|
45
09161-16010-000 WASHER(16X24X3)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09161-16010-000 |
from US $1.60 |
||
|
46
|
46
24565-60B00-000 BOLT,REVERSE SHAFTMT:(G13B,G15A); 1996-02-01~1997-03-01 |
24565-60B00-000 |
from US $1.49 |
||
|
47
|
47
09168-09001-000
Gasket,9.2x17x1.6
MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09168-09001-000 |
— | ||
| replacement | |||||
|
47
|
47
09168-08030-000 GASKET(8.2X17X1)MT:(G13B,G15A); 1996-02-01~1997-03-01 |
09168-08030-000 |
from US $2.07 |
||
