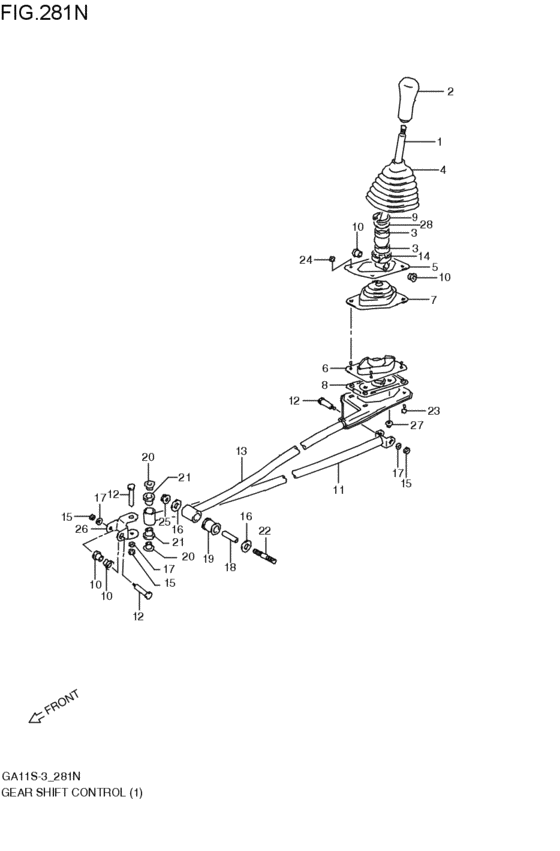

gearlever control (5MT:(G13B,G15A); 1997-05-01~1998-03-01) Diagram Suzuki CULTUS
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- VP
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-60G01-000
レバー,ギヤシフトコントロール
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28101-60G01-000 |
— | ||
| replacement | |||||
|
1
|
1
28101-64G01-000 LEVER,GEAR SHF CONT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28101-64G01-000 |
US $64.03 |
||
|
2
|
2
28113-70G40-5PK
KNOB,CONT LEVER
ブラック; 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28113-70G40-5PK |
— | ||
| replacement | |||||
|
2
|
2
28113-70G41-5PK KNOB,CONT LEVER(BLACK)ブラック; 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28113-70G41-5PK |
US $67.20 |
||
|
3
|
3
28115-82000-000 SEAT,GEAR SHIFT CONTROL LEVER5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28115-82000-000 |
US $2.56 |
||
|
4
|
4
28136-50F00-5PK BOOT,CONT LEVERブラック; 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28136-50F00-5PK |
US $28.52 |
||
|
5
|
5
28145-70G00-000 COVER,GEAR SHF CONT BOOT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28145-70G00-000 |
US $6.24 |
||
|
6
|
6
28180-60B00-000 HOUSING,GEAR SHF CONT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28180-60B00-000 |
US $85.60 |
||
|
7
|
7
28189-60B00-000 COVER,HOUSING DUST5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28189-60B00-000 |
US $20.53 |
||
|
8
|
8
28190-60B00-000 PLATE,CONT LEVER GUIDE5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28190-60B00-000 |
US $11.89 |
||
|
9
|
9
08331-41386-000
Circlip
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08331-41386-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-4138A-000 CIRCLIP5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08331-4138A-000 |
from US $1.68 |
||
|
10
|
10
28231-60B10-000 BUSH,CONT SHAFT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28231-60B10-000 |
US $9.44 |
||
|
11
|
11
28250-60G00-000
ROD,GEAR SHF CONTROL
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28250-60G00-000 |
— | ||
|
12
|
12
28256-81400-000
ボルト,コントロールシャフト
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28256-81400-000 |
— | ||
| replacement | |||||
|
12
|
12
09111-08090-000 BOLT(8X50.5)5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09111-08090-000 |
US $2.56 |
||
|
13
|
13
28260-60G00-000 ROD,EXTENSION5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28260-60G00-000 |
US $70.66 |
||
|
14
|
14
28279-81400-000 BOOT,GR SHF CONT RR5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28279-81400-000 |
US $5.63 |
||
|
15
|
15
09140-08021-000 NUT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09140-08021-000 |
from US $3.59 |
||
|
16
|
16
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09160-10129-000 |
US $1.28 |
||
| replacement | |||||
|
16
|
16
09160-10035-000 WASHER(10.5X28X2.3)Washer 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09160-10035-000 |
from US $1.28 |
||
|
17
|
17
09162-08008-000 WASHER,LOCKLock washer 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09162-08008-000 |
from US $0.80 |
||
|
18
|
18
09180-10141-000
スペーサ,10.2X14X33
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09180-10141-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-10141-XC0 SPACER(10.2X14X33)5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09180-10141-XC0 |
US $2.40 |
||
|
19
|
19
09305-14006-000 BUSH5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09305-14006-000 |
US $1.98 |
||
|
20
|
20
09306-12009-000 BUSH5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09306-12009-000 |
US $1.92 |
||
|
21
|
21
09320-14018-000 CUSHION5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09320-14018-000 |
US $2.24 |
||
|
22
|
22
01421-10503-000
Stud bolt (l:50)
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
01421-10503-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-1050A-000 BOLT,STUD5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
01421-1050A-000 |
from US $1.67 |
||
|
23
|
23
01550-06103-000
Bolt, front
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0610B-000 BoltBolt 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
23
|
23
01550-0610A-000 BOLT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
01550-0610A-000 |
from US $0.80 |
||
|
24
|
24
08316-10083-000
Nut
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1008B-000 NUT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
25
|
25
08316-10103-000
Nut
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1010B-000 NUT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
26
|
26
28271-60B01-000 JOINT,GEAR SHF CONT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
28271-60B01-000 |
US $7.40 |
||
|
27
|
27
08316-10103-000
Nut
5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1010B-000 NUT5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
28
|
28
09181-30134-000 SHIM(30X38X0.8)5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09181-30134-000 |
US $1.68 |
||
|
28
|
28
09181-30139-000 SHIM(30X38X1)Washer, rear final drive 5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09181-30139-000 |
from US $1.82 |
||
|
28
|
28
09181-30148-000 SHIM(30X38X1.2)5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09181-30148-000 |
US $1.82 |
||
|
28
|
28
09181-30154-000 SHIM(30X38X1.4)5MT:(G13B,G15A); 1997-05-01~1998-03-01 |
09181-30154-000 |
US $1.82 |
||
