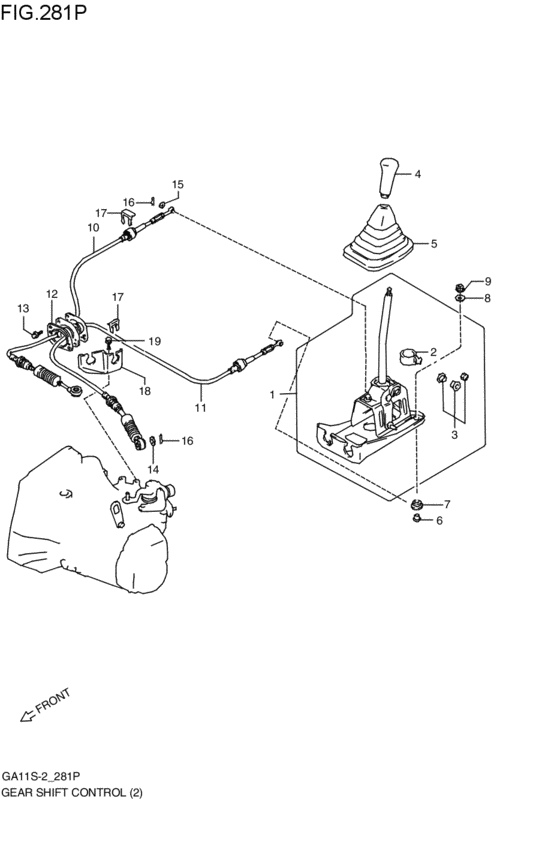

gearlever control (5ソクマニュアル:1800CC; 5MT:J18A; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- GT
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-64E20-000
LEVER ASSY,GR SHF
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28101-64E20-000 |
— | ||
|
2
|
2
28169-70C00-000
SEAT SET,SHF LEVER
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28169-70C00-000 |
— | ||
|
3
|
3
28159-70C00-000
BUSH SET,SHF LEVER
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28159-70C00-000 |
— | ||
|
4
|
4
28113-50E60-5ES KNOB,GEAR SHF CONT LVRブラック; 5MT:J18A; 1996-02-01~1997-03-01 |
28113-50E60-5ES |
from US $15.35 |
||
|
5
|
5
28136-63B00-5EE BOOT,GR SHF CONT LEVER,NO.2グレ-; 5MT:J18A; 1996-02-01~1997-03-01 |
28136-63B00-5EE |
US $33.67 |
||
|
6
|
6
28367-70C00-000
SPACER,GEAR CONT GUIDE CUSHION
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28367-70C00-000 |
— | ||
|
7
|
7
28368-70C00-000
Cushion
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28368-70C00-000 |
— | ||
|
8
|
8
09160-08133-000
Washer
5MT:J18A; 1996-02-01~1997-03-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 5MT:J18A; 1996-02-01~1997-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
9
|
9
08316-10083-000
Nut
5MT:J18A; 1996-02-01~1997-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT5MT:J18A; 1996-02-01~1997-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
28370-60G40-000
CABLE ASSY,GEAR SHIFT CONTROL
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28370-60G40-000 |
— | ||
|
11
|
11
28380-60G40-000
CABLE ASSY,GEAR SELECT CONTROL
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28380-60G40-000 |
— | ||
|
12
|
12
28375-70C00-000
COVER,T/A CONT CABLE GROMMET
CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
28375-70C00-000 |
— | ||
|
13
|
13
01570-06163-000
Bolt
5MT:J18A; 1996-02-01~1997-03-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0616B-000 Bolt5MT:J18A; 1996-02-01~1997-03-01 |
01570-0616B-000 |
from US $0.80 |
||
|
13
|
13
01570-0616A-000 Bolt5MT:J18A; 1996-02-01~1997-03-01 |
01570-0616A-000 |
from US $0.96 |
||
|
14
|
14
09160-08133-000
Washer
5MT:J18A; 1996-02-01~1997-03-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 5MT:J18A; 1996-02-01~1997-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
15
|
15
09160-08097-000 WASHER(8.5X16X1.6)5MT:J18A; 1996-02-01~1997-03-01 |
09160-08097-000 |
US $14 |
||
|
16
|
16
09385-08004-000 PIN,SNAP5MT:J18A; 1996-02-01~1997-03-01 |
09385-08004-000 |
from US $1.28 |
||
|
17
|
17
09383-19001-000 E RINGClip CHKK; 5MT:J18A; 1996-02-01~1997-03-01 |
09383-19001-000 |
from US $2.34 |
||
|
18
|
18
28391-70C01-000
ブラケット,コントロールケーブル
5MT:J18A; 1996-02-01~1997-03-01 |
28391-70C01-000 |
— | ||
| replacement | |||||
|
18
|
18
28390-54G40-000
BRACKET,T/M CONT CABLE
5MT:J18A; 1996-02-01~1997-03-01 |
28390-54G40-000 |
— | ||
|
19
|
19
01570-10253-000
ボルト
5MT:J18A; 1996-02-01~1997-03-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
19
|
19
01570-1025A-000 Bolt5MT:J18A; 1996-02-01~1997-03-01 |
01570-1025A-000 |
US $1.12 |
||
