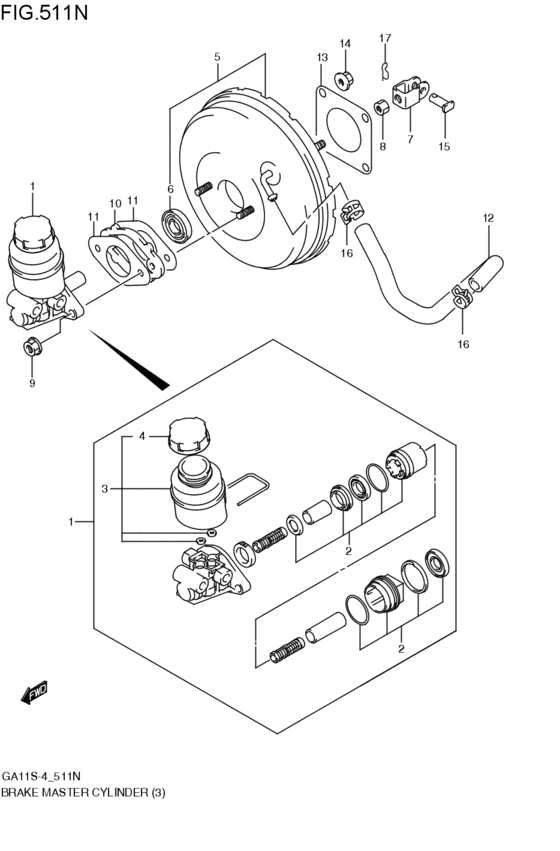

brakes master cylinder (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-65G10-000
CYLINDER ASSY,BRAKE MASTER
J18A; 1998-05-01~2000-02-01 |
51100-65G10-000 |
— | ||
|
2
|
2
51810-65G10-000
Piston set,brake master
J18A; 1998-05-01~2000-02-01 |
51810-65G10-000 |
— | ||
|
3
|
3
51200-62G50-000
RESERVOIR ASSY,BRAKE MASTER
J18A; 1998-05-01~2000-02-01 |
51200-62G50-000 |
— | ||
|
4
|
4
51290-69D00-000 CAP SET,RESERVOIRJ18A; 1998-05-01~2000-02-01 |
51290-69D00-000 |
US $202.40 |
||
|
5
|
5
51300-65GB0-000
ブースタアッシ,ブレーキマスタ
J18A; 1998-05-01~2000-02-01 |
51300-65GB0-000 |
— | ||
|
6
|
6
51311-65G10-000
SEAL
J18A; 1998-05-01~2000-02-01 |
51311-65G10-000 |
— | ||
|
7
|
7
51182-85520-000 CLEVIS,CYLINDER PUSH RODJ18A; 1998-05-01~2000-02-01 |
51182-85520-000 |
US $10.27 |
||
|
8
|
8
08316-10103-000
Nut
J18A; 1998-05-01~2000-02-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTJ18A; 1998-05-01~2000-02-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
09159-08075-000 NUTJ18A; 1998-05-01~2000-02-01 |
09159-08075-000 |
US $0.91 |
||
|
10
|
10
51134-65G10-000
SPACER,BRAKE MASTER CYLINDER
J18A; 1998-05-01~2000-02-01 |
51134-65G10-000 |
— | ||
|
11
|
11
51312-76F20-000 GASKET,BRAKE MASTER CYLINDERJ18A; 1998-05-01~2000-02-01 |
51312-76F20-000 |
US $6.11 |
||
|
12
|
12
51010-62G00-000
Hose,vacuum bstr to intk
J18A; 1998-05-01~2000-02-01 |
51010-62G00-000 |
— | ||
|
13
|
13
51132-82003-000 PACKING,BRAKE MASTER CYLINDERJ18A; 1998-05-01~2000-02-01 |
51132-82003-000 |
US $1.60 |
||
|
14
|
14
09159-08069-000
Nut
J18A; 1998-05-01~2000-02-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08135-000 NUTJ18A; 1998-05-01~2000-02-01 |
09159-08135-000 |
from US $0.77 |
||
|
15
|
15
09200-10021-000 PINJ18A; 1998-05-01~2000-02-01 |
09200-10021-000 |
US $1.28 |
||
|
16
|
16
09401-15404-000 CLIPJ18A; 1998-05-01~2000-02-01 |
09401-15404-000 |
from US $1.06 |
||
|
17
|
17
09385-10006-000 PIN,SNAPPin J18A; 1998-05-01~2000-02-01 |
09385-10006-000 |
from US $1.60 |
||
