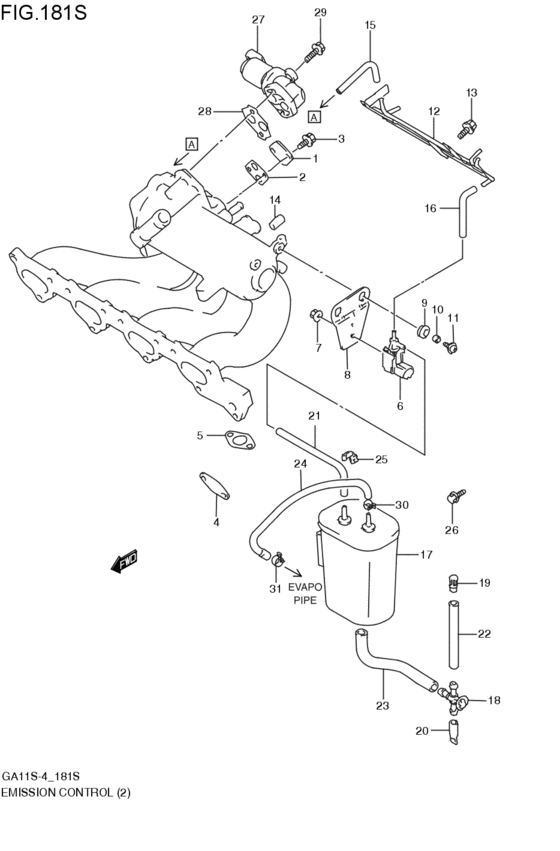

emission control (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18491-77E00-000 PLATE,EGR VALVEJ18A; 1998-05-01~2000-02-01 |
18491-77E00-000 |
US $4.16 |
||
|
2
|
2
18529-77E00-000
Gasket, egr valve
J18A; 1998-05-01~2000-02-01 |
18529-77E00-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVEJ18A; 1998-05-01~2000-02-01 |
18529-77E01-000 |
from US $2.39 |
||
|
3
|
3
01550-08163-000
Bolt, holder
J18A; 1998-05-01~2000-02-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0816B-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
01550-0816A-000 BOLTBolt, rear J18A; 1998-05-01~2000-02-01 |
01550-0816A-000 |
from US $0.91 |
||
|
4
|
4
18492-77E00-000 PLATE,EGR PIPEJ18A; 1998-05-01~2000-02-01 |
18492-77E00-000 |
US $1.60 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEJ18A; 1998-05-01~2000-02-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
18117-58B10-000 SOLENOID,DUTY FOR PURGEJ18A; 1998-05-01~2000-02-01 |
18117-58B10-000 |
US $158.08 |
||
|
7
|
7
08316-10063-000
Nut
J18A; 1998-05-01~2000-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTJ18A; 1998-05-01~2000-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
18417-58B10-000
ブラケット,デューティソレノイド
J18A; 1998-05-01~2000-02-01 |
18417-58B10-000 |
— | ||
| replacement | |||||
|
8
|
8
18417-58B1V-000
BRACKET,DUTY SOLENOID
J18A; 1998-05-01~2000-02-01 |
18417-58B1V-000 |
— | ||
|
9
|
9
09308-10004-000 GROMMETJ18A; 1998-05-01~2000-02-01 |
09308-10004-000 |
US $1.98 |
||
|
10
|
10
09180-06106-000 SPACER(6.8X10X7)J18A; 1998-05-01~2000-02-01 |
09180-06106-000 |
from US $2.08 |
||
|
11
|
11
09136-06133-000 BOLT(6X16)Screw J18A; 1998-05-01~2000-02-01 |
09136-06133-000 |
US $12.50 |
||
|
12
|
12
18340-77EA0-000
パイプ,EGRバキューム
J18A; 1998-05-01~2000-02-01 |
18340-77EA0-000 |
— | ||
|
13
|
13
01550-06123-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BOLTBolt, clamp J18A; 1998-05-01~2000-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
09250-04003-000 PLUG(OD:8)Plug (od:8) J18A; 1998-05-01~2000-02-01 |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
14
|
14
07130-0510B-000 BOLTBolt, sensor J18A; 1998-05-01~2000-02-01 |
07130-0510B-000 |
from US $0.96 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601>90; J18A; 1998-05-01~2000-02-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601>90; J18A; 1998-05-01~2000-02-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; J18A; 1998-05-01~2000-02-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:601>120; J18A; 1998-05-01~2000-02-01 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
18560-50G01-000
CANISTER
J18A; 1998-05-01~2000-02-01 |
18560-50G01-000 |
— | ||
|
18
|
18
18565-60G10-000 CONNECTOR,PURGE AIR SUCT HOSEJ18A; 1998-05-01~2000-02-01 |
18565-60G10-000 |
US $2.72 |
||
|
19
|
19
18566-60G00-000 FILTER,PURGE AIR SUCTIONJ18A; 1998-05-01~2000-02-01 |
18566-60G00-000 |
US $1.69 |
||
|
20
|
20
18568-55F00-000 HOSE,DRAINJ18A; 1998-05-01~2000-02-01 |
18568-55F00-000 |
US $2.36 |
||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
L:601>250; J18A; 1998-05-01~2000-02-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)L:601>250; J18A; 1998-05-01~2000-02-01 |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>100; J18A; 1998-05-01~2000-02-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
22
|
22
44421-12FR0-000 HOSEL:600>100; J18A; 1998-05-01~2000-02-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
23
|
23
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>200; J18A; 1998-05-01~2000-02-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
23
|
23
44421-12FR0-000 HOSEL:600>200; J18A; 1998-05-01~2000-02-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
24
|
24
09359-35751-600 HOSE(3.5X7.5X600)Hose, cstr purge L:600>350; J18A; 1998-05-01~2000-02-01 |
09359-35751-600 |
from US $11.20 |
||
|
25
|
25
09403-08311-000 CLAMPJ18A; 1998-05-01~2000-02-01 |
09403-08311-000 |
from US $0.95 |
||
|
26
|
26
01550-06123-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BOLTBolt, clamp J18A; 1998-05-01~2000-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
18137-77E00-000 VALVE,IACJ18A; 1998-05-01~2000-02-01 |
18137-77E00-000 |
from US $260.64 |
||
|
28
|
28
18134-77E00-000 GASKET,IAC VALVEJ18A; 1998-05-01~2000-02-01 |
18134-77E00-000 |
from US $1.61 |
||
|
29
|
29
01550-06123-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BOLTBolt, clamp J18A; 1998-05-01~2000-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
09401-06405-000 CLIPJ18A; 1998-05-01~2000-02-01 |
09401-06405-000 |
from US $1.12 |
||
|
31
|
31
09401-08411-000 CLIPJ18A; 1998-05-01~2000-02-01 |
09401-08411-000 |
from US $0.91 |
||
