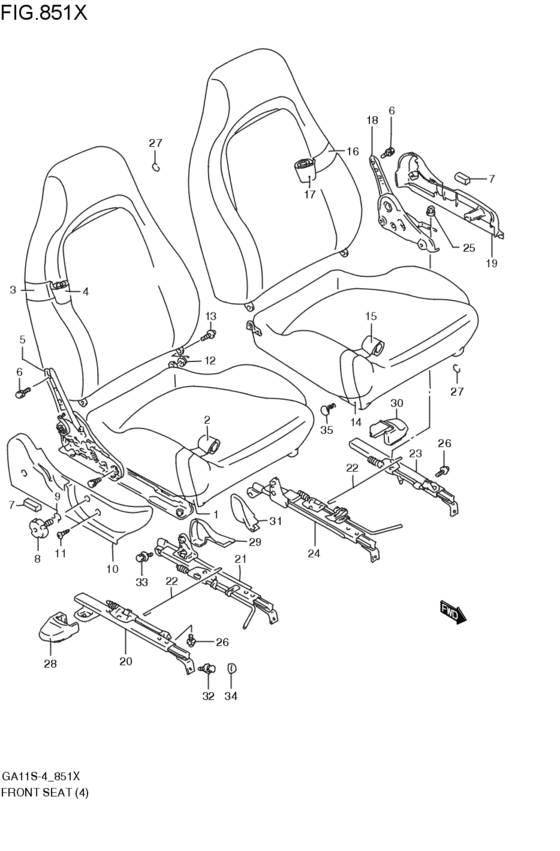

front seat (5DR:TZ; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-62G21-000
CUSHION SUB ASSY,FR SEAT,R
5DR:TZ; 1998-05-01~2000-02-01 |
85105-62G21-000 |
— | ||
|
2
|
2
85180-62G20-L7W
トリム,フロントクッション,ライト
グレー/ブラック; 5DR:TZ; 1998-05-01~2000-02-01 |
85180-62G20-L7W |
— | ||
|
3
|
3
85305-62G00-000
BACK S/ASSY,FR SEAT,R
5DR:TZ; 1998-05-01~2000-02-01 |
85305-62G00-000 |
— | ||
|
4
|
4
85380-62G00-L7W
Trim comp,front seat back,r
グレー/ブラック; 5DR:TZ; 1998-05-01~2000-02-01 |
85380-62G00-L7W |
— | ||
|
5
|
5
85210-60G10-000
RECLINING ASSY,FR SEAT,R
5DR:TZ; 1998-05-01~2000-02-01 |
85210-60G10-000 |
— | ||
|
6
|
6
01570-08163-000
Bolt
5DR:TZ; 1998-05-01~2000-02-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0816A-000 BOLT5DR:TZ; 1998-05-01~2000-02-01 |
01570-0816A-000 |
from US $0.96 |
||
|
7
|
7
85211-60B00-T01 KNOB,RECLINING FRグレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
85211-60B00-T01 |
US $4.82 |
||
|
8
|
8
85119-60G00-T01
ノブ,フロントシートリフタ(グレー)
グレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
85119-60G00-T01 |
— | ||
| replacement | |||||
|
8
|
8
85119-60G00-P4Z
Knob,front seat lifter
グレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
85119-60G00-P4Z |
— | ||
|
9
|
9
78463-78000-000 SNAP5DR:TZ; 1998-05-01~2000-02-01 |
78463-78000-000 |
US $1.60 |
||
|
10
|
10
85221-60G01-T01 COVER,RECLINING ASSY,FR,Rグレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
85221-60G01-T01 |
US $21.16 |
||
|
11
|
11
03242-05123-000
Screw, inner cover
5DR:TZ; 1998-05-01~2000-02-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW5DR:TZ; 1998-05-01~2000-02-01 |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
85319-82000-000 BUSH,FR SEAT BACK FIXING5DR:TZ; 1998-05-01~2000-02-01 |
85319-82000-000 |
US $1.92 |
||
|
13
|
13
09136-06004-000 SCREW(6X12)5DR:TZ; 1998-05-01~2000-02-01 |
09136-06004-000 |
from US $0.77 |
||
|
14
|
14
85106-62G00-000
CUSHION SUB ASSY,FR SEAT,L
5DR:TZ; 1998-05-01~2000-02-01 |
85106-62G00-000 |
— | ||
|
15
|
15
85680-62G00-L7W
TRIM,FR CUSHION,L
グレー/ブラック; 5DR:TZ; 1998-05-01~2000-02-01 |
85680-62G00-L7W |
— | ||
|
16
|
16
85306-62G00-000
BACK S/ASSY,FR SEAT,L
5DR:TZ; 1998-05-01~2000-02-01 |
85306-62G00-000 |
— | ||
|
17
|
17
85880-62G00-L7W
トリム,フロントシートバック,レフト
グレー/ブラック; 5DR:TZ; 1998-05-01~2000-02-01 |
85880-62G00-L7W |
— | ||
|
18
|
18
85710-60G00-000 RECLINING ASSY,FR SEAT,L5DR:TZ; 1998-05-01~2000-02-01 |
85710-60G00-000 |
US $128.43 |
||
|
19
|
19
85721-60B10-T01 COVER,RECLINING ASSY,FR,Lグレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
85721-60B10-T01 |
US $28.15 |
||
|
20
|
20
86630-63B21-000
ADJUSTER,FR SEAT OUTSIDE,R
ライトシート; 5DR:TZ; 1998-05-01~2000-02-01 |
86630-63B21-000 |
— | ||
|
21
|
21
86610-61G01-000
ADJUSTER,FR SEAT INSIDE,R
ライトシート; 5DR:TZ; 1998-05-01~2000-02-01 |
86610-61G01-000 |
— | ||
|
22
|
22
86620-60B00-000 ROD,FRONT SEAT ADJUSTER5DR:TZ; 1998-05-01~2000-02-01 |
86620-60B00-000 |
US $7.36 |
||
|
23
|
23
86830-60B01-000
ADJUSTER,FR SEAT OUTSIDE,L
レフトシート; 5DR:TZ; 1998-05-01~2000-02-01 |
86830-60B01-000 |
— | ||
|
24
|
24
86810-61G01-000
ADJUSTER,FR SEAT INSIDE,L
レフトシート; 5DR:TZ; 1998-05-01~2000-02-01 |
86810-61G01-000 |
— | ||
|
25
|
25
09159-08068-000
ナット
5DR:TZ; 1998-05-01~2000-02-01 |
09159-08068-000 |
— | ||
| replacement | |||||
|
25
|
25
09159-08075-000 NUT5DR:TZ; 1998-05-01~2000-02-01 |
09159-08075-000 |
US $0.91 |
||
|
26
|
26
01570-08163-000
Bolt
5DR:TZ; 1998-05-01~2000-02-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
26
|
26
01570-0816A-000 BOLT5DR:TZ; 1998-05-01~2000-02-01 |
01570-0816A-000 |
from US $0.96 |
||
|
27
|
27
09387-19001-000 RING5DR:TZ; 1998-05-01~2000-02-01 |
09387-19001-000 |
US $1.76 |
||
|
28
|
28
86745-60G00-T01
COVER,FR SEAT ADJUSTER OUTER,R
グレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
86745-60G00-T01 |
— | ||
|
29
|
29
86735-60G00-T01
COVER,FR SEAT ADJUSTER INNER,R
グレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
86735-60G00-T01 |
— | ||
|
30
|
30
86746-60G00-T01
COVER,FR SEAT ADJUSTER OUTER,L
グレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
86746-60G00-T01 |
— | ||
|
31
|
31
86736-60G00-T01 COVER,FR SEAT ADJUSTER INNER,Lグレ-; 5DR:TZ; 1998-05-01~2000-02-01 |
86736-60G00-T01 |
US $14.08 |
||
|
32
|
32
09118-08157-000 BOLT(8X20)5DR:TZ; 1998-05-01~2000-02-01 |
09118-08157-000 |
US $23.20 |
||
|
33
|
33
09103-10208-000 BOLT(10X16)5DR:TZ; 1998-05-01~2000-02-01 |
09103-10208-000 |
US $15.50 |
||
|
34
|
34
38315-60B10-000
Cap
5DR:TZ; 1998-05-01~2000-02-01 |
38315-60B10-000 |
— | ||
| replacement | |||||
|
34
|
34
38315-60B11-000 CAP,WIPER PIVOT5DR:TZ; 1998-05-01~2000-02-01 |
38315-60B11-000 |
US $1.60 |
||
|
35
|
35
85191-60G00-000
CLIP,FR SEAT CUSHION
5DR:TZ; 1998-05-01~2000-02-01 |
85191-60G00-000 |
— | ||
