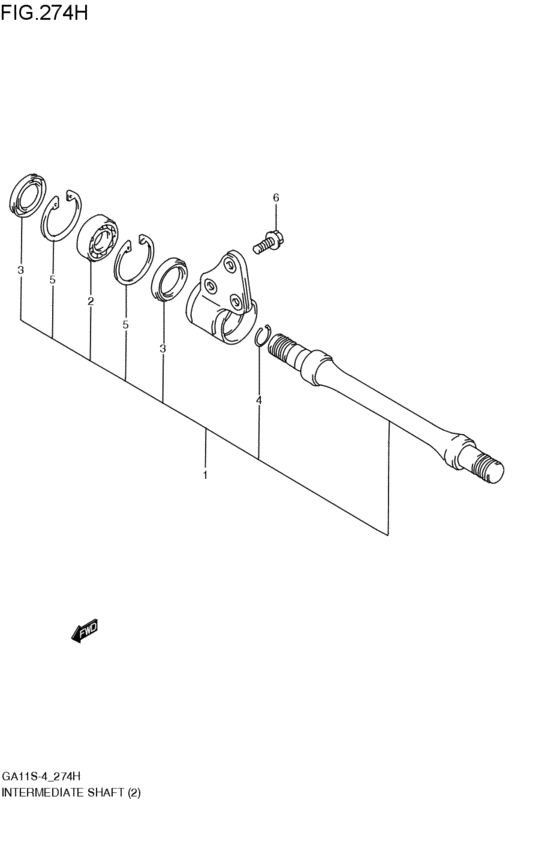

intermediate shaft (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-60G53-000
SHAFT ASSY,DRIVE INTERMEDIATE
J18A:AT; 1998-05-01~2000-02-01 |
27800-60G53-000 |
— | ||
|
2
|
2
09262-28030-000
Bearing,28x58x16
J18A; 1998-05-01~2000-02-01 |
09262-28030-000 |
— | ||
| replacement | |||||
|
2
|
2
27831-68L10-000 BEARING,DRIVE INTERMEDIATEJ18A; 1998-05-01~2000-02-01 |
27831-68L10-000 |
from US $29.61 |
||
|
3
|
3
27841-64G00-000 SEAL,DRIVE INTERMEDIATEJ18A; 1998-05-01~2000-02-01 |
27841-64G00-000 |
from US $10.19 |
||
|
4
|
4
09381-25002-000 RING,SNAPJ18A; 1998-05-01~2000-02-01 |
09381-25002-000 |
from US $1.85 |
||
|
5
|
5
08331-41586-000
Circlip
J18A; 1998-05-01~2000-02-01 |
08331-41586-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-4158A-000 CIRCLIPJ18A; 1998-05-01~2000-02-01 |
08331-4158A-000 |
from US $2.56 |
||
|
6
|
6
01550-10353-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1035A-000 BOLTBolt, fr fork upper J18A; 1998-05-01~2000-02-01 |
01550-1035A-000 |
from US $5.68 |
||
