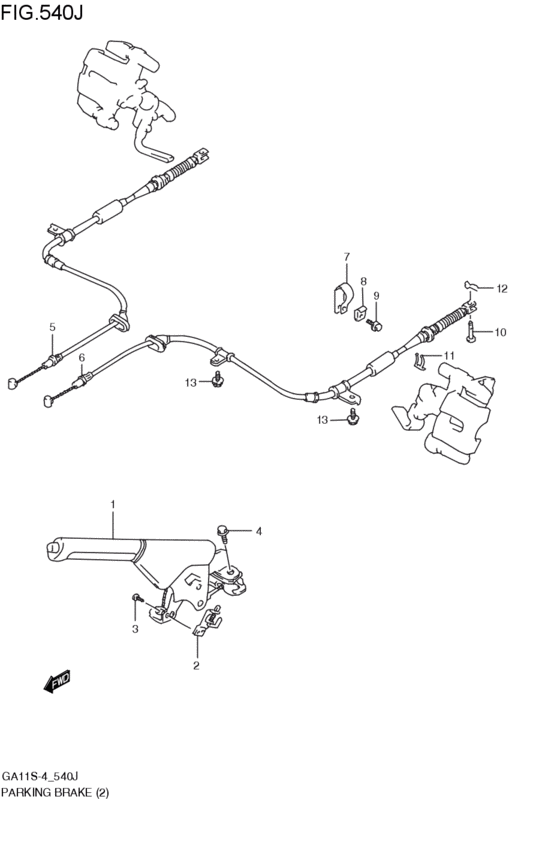

parking brakes (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-64G00-000
LEVER ASSY,PARKING BK
J18A; 1998-05-01~2000-02-01 |
54100-64G00-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-60A11-000 LEVER ASSY,PARK BKJ18A; 1998-05-01~2000-02-01 |
54100-60A11-000 |
US $236.80 |
||
|
2
|
2
37940-60A10-000 SWITCH ASSY,PARKING BRAKEJ18A; 1998-05-01~2000-02-01 |
37940-60A10-000 |
US $13.12 |
||
|
3
|
3
02142-04103-000
Screw 4x10
J18A; 1998-05-01~2000-02-01 |
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREWJ18A; 1998-05-01~2000-02-01 |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
09117-08098-000 BOLT(8X20)J18A; 1998-05-01~2000-02-01 |
09117-08098-000 |
US $15.80 |
||
|
5
|
5
54401-60G10-000 CABLE,PARKING BRAKE,RJ18A; 1998-05-01~2000-02-01 |
54401-60G10-000 |
US $61.82 |
||
|
6
|
6
54402-60G10-000
CABLE,PARKING BRAKE,L
J18A; 1998-05-01~2000-02-01 |
54402-60G10-000 |
— | ||
|
7
|
7
54491-79000-000 BAND,CABLEJ18A; 1998-05-01~2000-02-01 |
54491-79000-000 |
US $2.58 |
||
|
8
|
8
54495-60G00-000 BRACKET,PARKING CABLE BANDJ18A; 1998-05-01~2000-02-01 |
54495-60G00-000 |
US $3.02 |
||
|
9
|
9
02162-06163-000
Screw
J18A; 1998-05-01~2000-02-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust J18A; 1998-05-01~2000-02-01 |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
09200-06064-000 PINJ18A; 1998-05-01~2000-02-01 |
09200-06064-000 |
US $23.60 |
||
|
11
|
11
09383-13001-000 E RINGJ18A; 1998-05-01~2000-02-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
11
|
11
09383-13003-000 E-RINGJ18A; 1998-05-01~2000-02-01 |
09383-13003-000 |
from US $1.60 |
||
|
12
|
12
09385-06012-000 CLIPJ18A; 1998-05-01~2000-02-01 |
09385-06012-000 |
from US $1.22 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
J18A; 1998-05-01~2000-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt J18A; 1998-05-01~2000-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket J18A; 1998-05-01~2000-02-01 |
02162-0612A-000 |
from US $0.80 |
||
