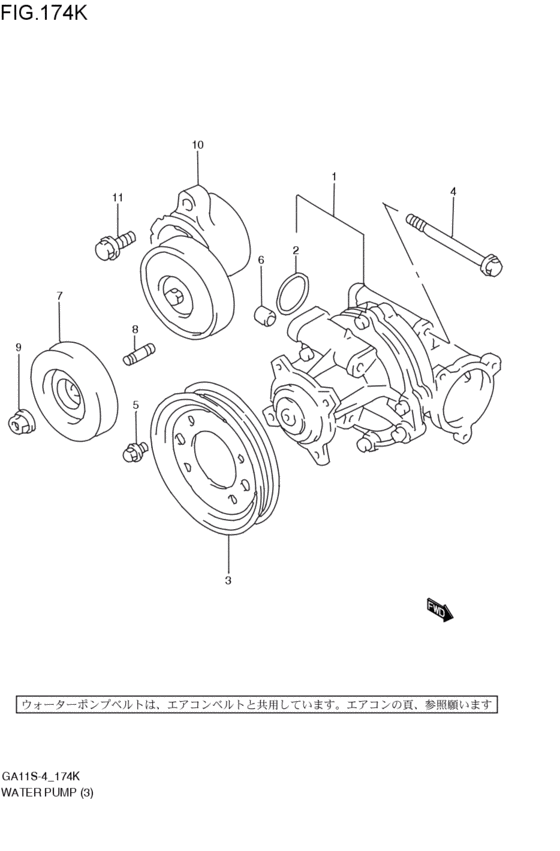

water pump (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-77810-000
ポンプセット,ウォータ
J18A; 1998-05-01~2000-02-01 |
17400-77810-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-77816-000
PUMP SET,WATER
J18A; 1998-05-01~2000-02-01 |
17400-77816-000 |
— | ||
|
2
|
2
09280-44008-000 O RING(D:2.4,ID:39.5)J18A; 1998-05-01~2000-02-01 |
09280-44008-000 |
from US $2.81 |
||
|
3
|
3
17511-77E00-000 PULLEY,WATER PUMPJ18A; 1998-05-01~2000-02-01 |
17511-77E00-000 |
from US $36.99 |
||
|
4
|
4
09103-08336-000 BOLT(8X90)J18A; 1998-05-01~2000-02-01 |
09103-08336-000 |
US $2.24 |
||
|
5
|
5
01550-06123-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp J18A; 1998-05-01~2000-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
04211-11129-000 PINJ18A; 1998-05-01~2000-02-01 |
04211-11129-000 |
from US $0.95 |
||
|
7
|
7
17530-77E00-000 PULLEY,GEN BELT IDLERJ18A; 1998-05-01~2000-02-01 |
17530-77E00-000 |
US $97.28 |
||
|
8
|
8
09108-10125-000 BOLT,STUDJ18A; 1998-05-01~2000-02-01 |
09108-10125-000 |
from US $2.24 |
||
|
9
|
9
08316-10103-000
Nut
J18A; 1998-05-01~2000-02-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTJ18A; 1998-05-01~2000-02-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
17540-77E00-000
テンショナアッシ,ジェネレータベルト
J18A; 1998-05-01~2000-02-01 |
17540-77E00-000 |
— | ||
| replacement | |||||
|
10
|
10
17540-77E10-000 TENSIONER ASSY,GEN BELTJ18A; 1998-05-01~2000-02-01 |
17540-77E10-000 |
from US $190.37 |
||
|
11
|
11
01550-08303-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 BoltJ18A; 1998-05-01~2000-02-01 |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover J18A; 1998-05-01~2000-02-01 |
01550-0830A-000 |
from US $1.12 |
||
