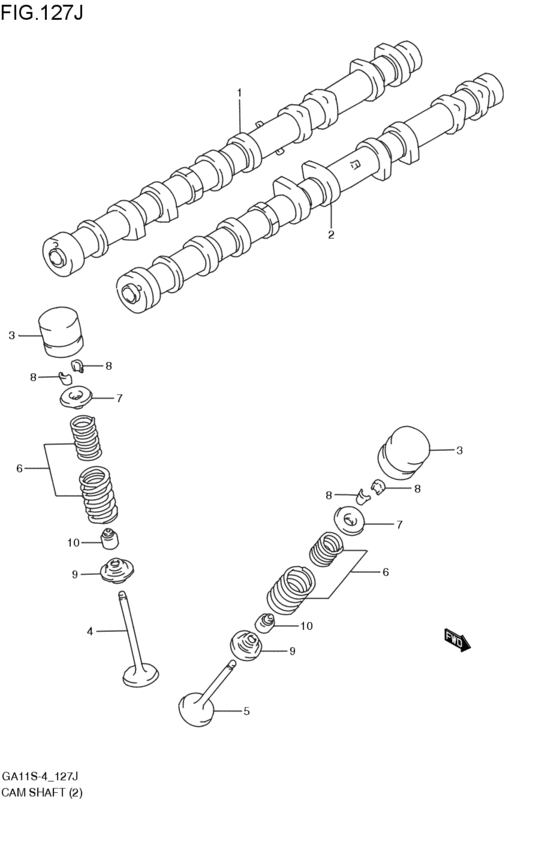

camshaft / valve (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-62G00-000
カムシャフト,インテーク
J18A; 1998-05-01~2000-02-01 |
12711-62G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12711-62G01-000 CAMSHAFT,INTAKEJ18A; 1998-05-01~2000-02-01 |
12711-62G01-000 |
from US $440.10 |
||
|
2
|
2
12721-62G00-000
カムシャフト,エキゾースト
J18A; 1998-05-01~2000-02-01 |
12721-62G00-000 |
— | ||
| replacement | |||||
|
2
|
2
12721-62G01-000 CAMSHAFT,EXHAUSTJ18A; 1998-05-01~2000-02-01 |
12721-62G01-000 |
US $865.60 |
||
|
3
|
3
12891-86512-000
アジャスタ,ハイドロリックバルブラッシュ
J18A; 1998-05-01~2000-02-01 |
12891-86512-000 |
— | ||
| replacement | |||||
|
3
|
3
12891-86521-000 ADJUSTER,HYDR VALVE LASHJ18A; 1998-05-01~2000-02-01 |
12891-86521-000 |
US $114.77 |
||
|
4
|
4
12911-86FA0-000
Valve, Intake
J18A; 1998-05-01~2000-02-01 |
12911-86FA0-000 |
— | ||
| replacements | |||||
|
4
|
4
12911-86FA1-000
Valve,intake
J18A; 1998-05-01~2000-02-01 |
12911-86FA1-000 |
— | ||
|
4
|
4
12911-86FA2-000 Valve,intakeJ18A; 1998-05-01~2000-02-01 |
12911-86FA2-000 |
from US $23.81 |
||
|
5
|
5
12915-86F50-000
Valve,exhaust
J18A; 1998-05-01~2000-02-01 |
12915-86F50-000 |
— | ||
| replacement | |||||
|
5
|
5
12915-86F51-000 Valve,exhaustJ18A; 1998-05-01~2000-02-01 |
12915-86F51-000 |
from US $36 |
||
|
6
|
6
12920-62G00-000 SPRING SET,VALVENHK; J18A; 1998-05-01~2000-02-01 |
12920-62G00-000 |
US $5.46 |
||
|
7
|
7
12931-62G00-000
リテーナ,バルブスプリング
J18A; 1998-05-01~2000-02-01 |
12931-62G00-000 |
— | ||
| replacement | |||||
|
7
|
7
12931-62G10-000 RETAINER,VALVE SPRINGJ18A; 1998-05-01~2000-02-01 |
12931-62G10-000 |
from US $4.53 |
||
|
8
|
8
12932-85FA0-000 COTTER,VALVEJ18A; 1998-05-01~2000-02-01 |
12932-85FA0-000 |
from US $1.44 |
||
|
9
|
9
12933-62G01-000 SEAT,VALVE SPRINGJ18A; 1998-05-01~2000-02-01 |
12933-62G01-000 |
US $7.04 |
||
|
10
|
10
09289-06003-000 SEAL,OIL(6X12.8X10.2)Seal, valve strm J18A; 1998-05-01~2000-02-01 |
09289-06003-000 |
from US $4.82 |
||
