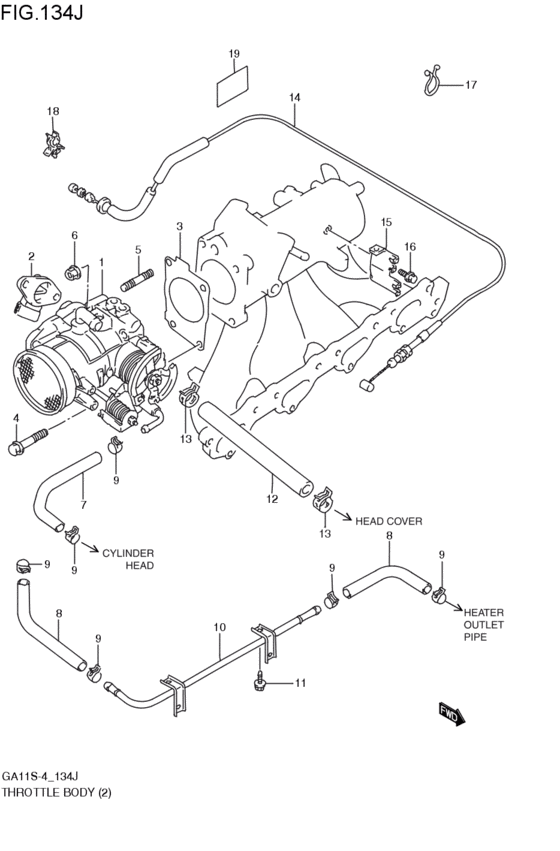

throttle body (J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 4AT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-77EV0-000 BODY ASSY,THROTTLEJ18A; 1998-05-01~2000-02-01 |
13400-77EV0-000 |
US $1,231.52 |
||
|
2
|
2
13420-77E00-000 SENSOR,THROTTLE POSITIONJ18A; 1998-05-01~2000-02-01 |
13420-77E00-000 |
US $279.68 |
||
|
3
|
3
13421-77E00-000 GASKET,THROTTLE BODYJ18A; 1998-05-01~2000-02-01 |
13421-77E00-000 |
from US $4.68 |
||
|
4
|
4
01550-08403-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0840B-000 BoltJ18A; 1998-05-01~2000-02-01 |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01550-0840A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
01421-08353-000
Bolt, stud
J18A; 1998-05-01~2000-02-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0835A-000 BOLT,STUDStud bolt (8x35) J18A; 1998-05-01~2000-02-01 |
01421-0835A-000 |
from US $1.44 |
||
|
6
|
6
08316-10083-000
Nut
J18A; 1998-05-01~2000-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTJ18A; 1998-05-01~2000-02-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
13491-62G01-000
HOSE,WATER THROTTLE BODY INLET
J18A; 1998-05-01~2000-02-01 |
13491-62G01-000 |
— | ||
|
8
|
8
09356-75141-600 HOSE(7.5X14.5X600)L:600>160; J18A; 1998-05-01~2000-02-01 |
09356-75141-600 |
from US $6.30 |
||
|
9
|
9
09401-12410-000 CLIPClip, filter outlet J18A; 1998-05-01~2000-02-01 |
09401-12410-000 |
from US $1.19 |
||
|
10
|
10
13450-77EA1-000 PIPE,WATERJ18A; 1998-05-01~2000-02-01 |
13450-77EA1-000 |
US $52 |
||
|
11
|
11
01550-06123-000
Bolt
J18A; 1998-05-01~2000-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp J18A; 1998-05-01~2000-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTJ18A; 1998-05-01~2000-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>190; J18A; 1998-05-01~2000-02-01 |
09355-13207-600 |
from US $11.63 |
||
|
13
|
13
09401-18404-000 CLIPJ18A; 1998-05-01~2000-02-01 |
09401-18404-000 |
from US $1.33 |
||
|
14
|
14
15910-62G10-000
ケーブルアッシ,アクセル
J18A; 1998-05-01~2000-02-01 |
15910-62G10-000 |
— | ||
| replacement | |||||
|
14
|
14
15910-62G1V-000
Cable,accel
J18A; 1998-05-01~2000-02-01 |
15910-62G1V-000 |
— | ||
|
15
|
15
15919-62G00-000
GUIDE,ACCEL CABLE
J18A; 1998-05-01~2000-02-01 |
15919-62G00-000 |
— | ||
|
16
|
16
09103-06092-000 BOLT(6X15)Bolt (6x15) J18A; 1998-05-01~2000-02-01 |
09103-06092-000 |
from US $1.22 |
||
|
17
|
17
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) J18A; 1998-05-01~2000-02-01 |
09408-00012-000 |
from US $3.37 |
||
|
18
|
18
09403-04307-000
CLAMP
J18A; 1998-05-01~2000-02-01 |
09403-04307-000 |
— | ||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole J18A; 1998-05-01~2000-02-01 |
84761-50X50-000 |
US $6.72 |
||
