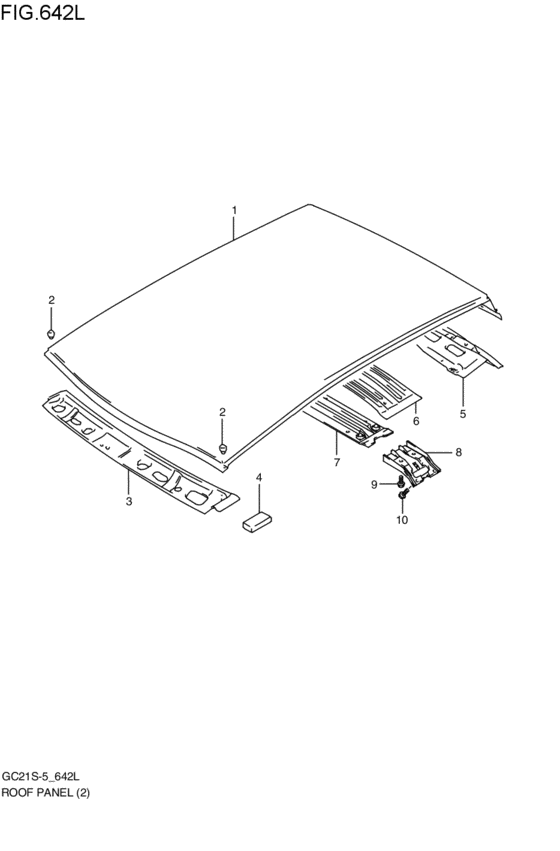

ル - フパネル (5DR; 2000-05-01~2002-07-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-63G01-000 PANEL,ROOF5DR; 2000-05-01~2002-07-01 |
65111-63G01-000 |
US $379.04 |
||
|
2
|
2
65112-84000-000 STUD,MOLDING5DR; 2000-05-01~2002-07-01 |
65112-84000-000 |
US $1.29 |
||
|
3
|
3
65121-60G00-000 RAIL,ROOF FR INNER5DR; 2000-05-01~2002-07-01 |
65121-60G00-000 |
US $45.63 |
||
|
4
|
4
83921-82C00-000 PAD5DR; 2000-05-01~2002-07-01 |
83921-82C00-000 |
US $4.16 |
||
|
5
|
5
65130-63G00-000
MEMBER,ROOF BACK INR
5DR; 2000-05-01~2002-07-01 |
65130-63G00-000 |
— | ||
|
6
|
6
65151-63G00-000
REINFORCEMENT,ROOF PANEL CTR
5DR; 2000-05-01~2002-07-01 |
65151-63G00-000 |
— | ||
|
7
|
7
65160-63G00-000
クロスメンバ,ルーフ,センタ
5DR; 2000-05-01~2002-07-01 |
65160-63G00-000 |
— | ||
|
8
|
8
78183-63G00-000
ブラケット,ルーフクロスメンバ
5DR; 2000-05-01~2002-07-01 |
78183-63G00-000 |
— | ||
|
9
|
9
01551-08123-000
ボルト
5DR; 2000-05-01~2002-07-01 |
01551-08123-000 |
— | ||
| replacement | |||||
|
9
|
9
01551-0812A-000 Bolt5DR; 2000-05-01~2002-07-01 |
01551-0812A-000 |
US $13.20 |
||
|
10
|
10
02162-06123-000
Bolt (6x12)
5DR; 2000-05-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02162-0612B-000 SCREWBolt 5DR; 2000-05-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 5DR; 2000-05-01~2002-07-01 |
02162-0612A-000 |
from US $0.80 |
||
