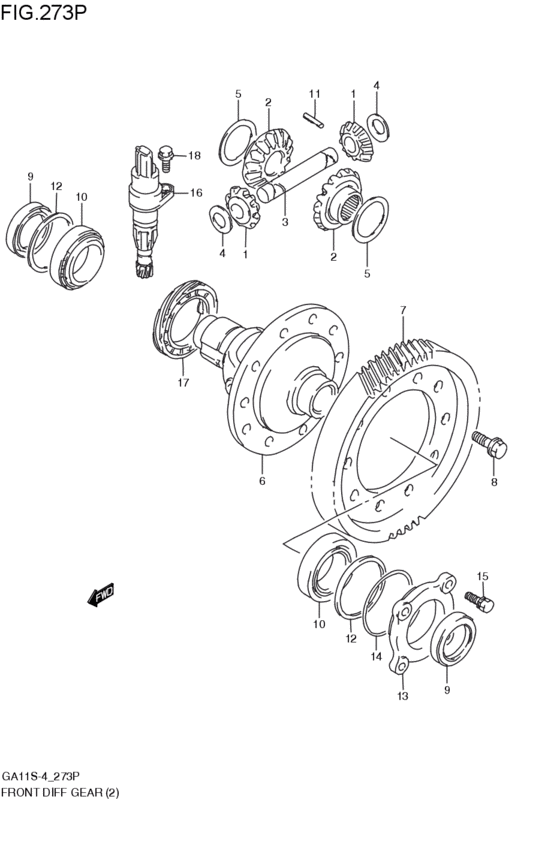

フロントデファレンシャルギヤ (5MT:2WD:J18A; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 5MT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-70C00-000 PINION,DIFFERENTIAL5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27331-70C00-000 |
from US $33.60 |
||
|
2
|
2
27341-70C00-000
ギヤ,ディファレンシャルサイド
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27341-70C00-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-70C01-000 GEAR,DIFF SIDE5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27341-70C01-000 |
from US $38.54 |
||
|
3
|
3
27351-70C01-000 SHAFT,DIFF SIDE PINION5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27351-70C01-000 |
from US $17.66 |
||
|
4
|
4
09164-17006-000 WASHER(17.3X32X1)5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09164-17006-000 |
from US $1.60 |
||
|
5
|
5
09181-38163-000 SHIM(38X50X0.85)Shim (t:0.85) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38163-000 |
from US $4.03 |
||
|
5
|
5
09181-38164-000 SHIM(38X50X0.9)Shim (t:0.90) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38164-000 |
from US $1.58 |
||
|
5
|
5
09181-38165-000 SHIM(38X50X0.95)Shim (t:0.95) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38165-000 |
from US $1.53 |
||
|
5
|
5
09181-38166-000 SHIM(38X50X1)Shim (t:1.00) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38166-000 |
US $32 |
||
|
5
|
5
09181-38169-000 SHIM(38X50X1.05)Shim (t:1.05) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38169-000 |
from US $1.96 |
||
|
5
|
5
09181-38172-000 SHIM(38X50X1.1)Shim (t:1.10) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38172-000 |
from US $2.21 |
||
|
5
|
5
09181-38174-000 SHIM(38X50X1.15)Shim (t:1.15) 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09181-38174-000 |
US $29.10 |
||
|
6
|
6
27411-70C01-000
CASE,FR DIFF
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27411-70C01-000 |
— | ||
|
7
|
7
27511-70C60-000
GEAR,FINAL
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27511-70C60-000 |
— | ||
|
8
|
8
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09103-10189-000 |
from US $2.56 |
||
|
9
|
9
27432-70C00-000 SEAL,DIFF SIDE OIL5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27432-70C00-000 |
from US $11.34 |
||
|
10
|
10
09265-38001-000 BEARING(38X63X17)5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09265-38001-000 |
from US $37.24 |
||
|
11
|
11
09205-05007-000 PIN,SPRING(5X36)5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09205-05007-000 |
from US $1.04 |
||
|
12
|
12
29541-74C00-000 SHIM,DIFF SIDE BRG T:0.605MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-74C00-000 |
US $4.56 |
||
|
12
|
12
29541-74C20-000 SHIM,DIFF SIDE BRG T:0.665MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-74C20-000 |
from US $4.52 |
||
|
12
|
12
29541-74C40-000 SHIM,DIFF SIDE BRG T:0.725MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-74C40-000 |
from US $4.46 |
||
|
12
|
12
29541-74C60-000 SHIM,DIFF SIDE BRG T:0.785MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-74C60-000 |
from US $4.50 |
||
|
12
|
12
29541-74C80-000 SHIM,DIFF SIDE BRG T:0.845MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-74C80-000 |
US $4.56 |
||
|
12
|
12
29541-75C00-000 SHIM,DIFF SIDE BRG T:0.305MT:2WD:J18A; 1998-05-01~2000-02-01 |
29541-75C00-000 |
from US $4.37 |
||
|
13
|
13
27421-70C00-000 RETAINER,DIFF SIDE BRG5MT:2WD:J18A; 1998-05-01~2000-02-01 |
27421-70C00-000 |
from US $25.76 |
||
|
14
|
14
09280-58005-000 O RING(D:2.3,ID:56.9)5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09280-58005-000 |
US $2.56 |
||
|
15
|
15
01550-08203-000
Bolt
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 Bolt5MT:2WD:J18A; 1998-05-01~2000-02-01 |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BoltBolt, funnel bracket 5MT:2WD:J18A; 1998-05-01~2000-02-01 |
01550-0820A-000 |
from US $1.12 |
||
|
16
|
16
26121-64G01-000
GEAR,SPDOM DRIVE
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
26121-64G01-000 |
— | ||
|
17
|
17
26130-64G01-000 GEAR,SPDOM DRIVEN5MT:2WD:J18A; 1998-05-01~2000-02-01 |
26130-64G01-000 |
US $217.36 |
||
|
18
|
18
09135-06022-000
Bolt
5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
18
|
18
09135-06027-000 BOLT(6X12)5MT:2WD:J18A; 1998-05-01~2000-02-01 |
09135-06027-000 |
from US $1.12 |
||
