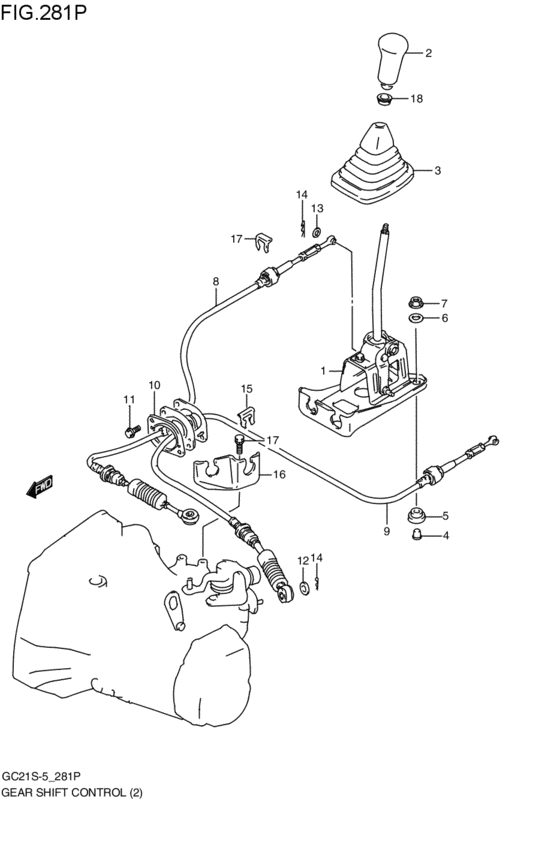

gearlever control (MT:J18A; 2000-05-01~2001-02-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-64G40-000
LEVER ASSY,GR SHF
MT:J18A; 2000-05-01~2001-02-01 |
28101-64G40-000 |
— | ||
|
2
|
2
28160-64G00-U76
ノブアッシ,ギヤシフトコントロール
ブラック; MT:J18A; 2000-05-01~2001-02-01 |
28160-64G00-U76 |
— | ||
| replacement | |||||
|
2
|
2
28160-64G00-5PK
Knob,gear shf cont lever(black
ブラック; MT:J18A; 2000-05-01~2001-02-01 |
28160-64G00-5PK |
— | ||
|
3
|
3
28136-50F00-5PK BOOT,CONT LEVERブラック; MT:J18A; 2000-05-01~2001-02-01 |
28136-50F00-5PK |
from US $14.11 |
||
|
4
|
4
28367-70C00-000
SPACER,GEAR CONT GUIDE CUSHION
MT:J18A; 2000-05-01~2001-02-01 |
28367-70C00-000 |
— | ||
|
5
|
5
28368-70C00-000
Cushion
MT:J18A; 2000-05-01~2001-02-01 |
28368-70C00-000 |
— | ||
|
6
|
6
09160-08133-000
Washer
MT:J18A; 2000-05-01~2001-02-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:J18A; 2000-05-01~2001-02-01 |
09160-08151-000 |
from US $0.91 |
||
|
7
|
7
08316-10083-000
Nut
MT:J18A; 2000-05-01~2001-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUTMT:J18A; 2000-05-01~2001-02-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
28370-60G40-000
CABLE ASSY,GEAR SHIFT CONTROL
MT:J18A; 2000-05-01~2001-02-01 |
28370-60G40-000 |
— | ||
|
9
|
9
28380-60G40-000
CABLE ASSY,GEAR SELECT CONTROL
MT:J18A; 2000-05-01~2001-02-01 |
28380-60G40-000 |
— | ||
|
10
|
10
28375-70C00-000
COVER,T/A CONT CABLE GROMMET
MT:J18A; 2000-05-01~2001-02-01 |
28375-70C00-000 |
— | ||
|
11
|
11
02162-06163-000
Screw
MT:J18A; 2000-05-01~2001-02-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust MT:J18A; 2000-05-01~2001-02-01 |
02162-0616B-000 |
from US $0.96 |
||
|
12
|
12
09160-08133-000
Washer
MT:J18A; 2000-05-01~2001-02-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:J18A; 2000-05-01~2001-02-01 |
09160-08151-000 |
from US $0.91 |
||
|
13
|
13
08322-01083-000
WASHER
MT:J18A; 2000-05-01~2001-02-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHERMT:J18A; 2000-05-01~2001-02-01 |
08322-0108B-000 |
from US $0.96 |
||
|
13
|
13
08322-0108A-000 WASHERMT:J18A; 2000-05-01~2001-02-01 |
08322-0108A-000 |
from US $0.96 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip MT:J18A; 2000-05-01~2001-02-01 |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
09383-19001-000 E RINGClip MT:J18A; 2000-05-01~2001-02-01 |
09383-19001-000 |
from US $2.34 |
||
|
16
|
16
28390-54G40-000
BRACKET,T/M CONT CABLE
MT:J18A; 2000-05-01~2001-02-01 |
28390-54G40-000 |
— | ||
|
17
|
17
01570-10253-000
ボルト
MT:J18A; 2000-05-01~2001-02-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01570-1025A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01570-1025A-000 |
US $1.12 |
||
|
18
|
18
28139-74F00-000
ホルダ,レバーブーツ
MT:J18A; 2000-05-01~2001-02-01 |
28139-74F00-000 |
— | ||
| replacement | |||||
|
18
|
18
28139-80G21-000 HOLDER,GR SHF CONT LEVER BOOTMT:J18A; 2000-05-01~2001-02-01 |
28139-80G21-000 |
US $2.24 |
||
