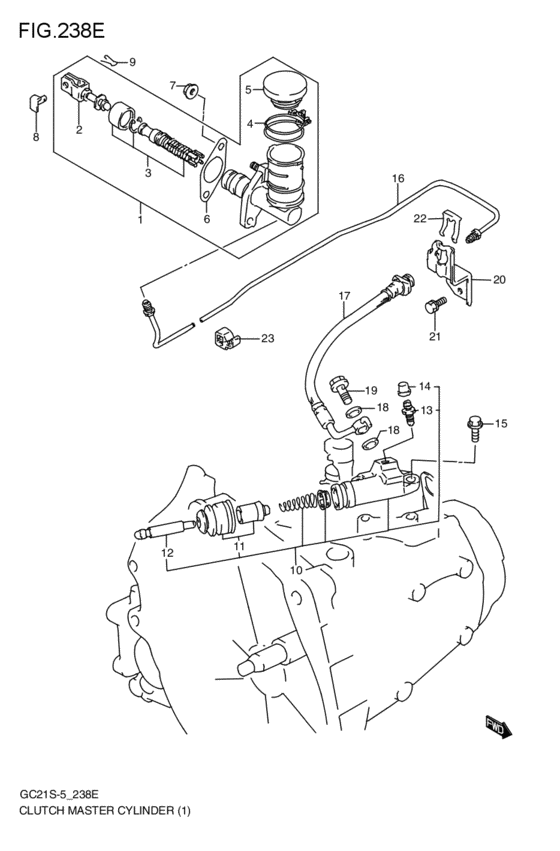

mt - clutch master cylinder (MT:J18A; 2000-05-01~2001-02-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23810-70C00-000
Cylinder assy,clutch master
MT:J18A; 2000-05-01~2001-02-01 |
23810-70C00-000 |
— | ||
| replacement | |||||
|
1
|
1
23810-70C01-000 CYLINDER ASSY,CLUTCH MASTERMT:J18A; 2000-05-01~2001-02-01 |
23810-70C01-000 |
US $146.59 |
||
|
2
|
2
23813-70C00-000 PUSH RODMT:J18A; 2000-05-01~2001-02-01 |
23813-70C00-000 |
from US $9.56 |
||
|
3
|
3
23800-70800-000
PISTON & CUP SET
MT:J18A; 2000-05-01~2001-02-01 |
23800-70800-000 |
— | ||
| replacement | |||||
|
3
|
3
23800-70801-000 PISTON&CUP SETMT:J18A; 2000-05-01~2001-02-01 |
23800-70801-000 |
US $47.10 |
||
|
4
|
4
09400-40311-000 CLAMPMT:J18A; 2000-05-01~2001-02-01 |
09400-40311-000 |
from US $0.92 |
||
|
5
|
5
23818-70C00-000 RESERVOIR CAPMT:J18A; 2000-05-01~2001-02-01 |
23818-70C00-000 |
US $7.92 |
||
|
6
|
6
23819-70C00-000 SEATMT:J18A; 2000-05-01~2001-02-01 |
23819-70C00-000 |
from US $1.24 |
||
|
7
|
7
09159-08069-000
Nut
MT:J18A; 2000-05-01~2001-02-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
7
|
7
09159-08135-000 NUTMT:J18A; 2000-05-01~2001-02-01 |
09159-08135-000 |
from US $0.95 |
||
|
8
|
8
23875-70C00-000 PIN,CLUTCH MASTER CYLMT:J18A; 2000-05-01~2001-02-01 |
23875-70C00-000 |
US $2.24 |
||
|
9
|
9
09385-08007-000 PIN,SNAPClip MT:J18A; 2000-05-01~2001-02-01 |
09385-08007-000 |
from US $1.09 |
||
|
10
|
10
23820-70C00-000 CYLINDER ASSY,CLUTCH OPERATINGMT:J18A; 2000-05-01~2001-02-01 |
23820-70C00-000 |
from US $65.18 |
||
|
11
|
11
23800-70810-000 PISTON&CUP SETMT:J18A; 2000-05-01~2001-02-01 |
23800-70810-000 |
from US $11.93 |
||
|
12
|
12
23826-70C00-000 PUSH RODMT:J18A; 2000-05-01~2001-02-01 |
23826-70C00-000 |
US $8.76 |
||
|
13
|
13
55151-60D10-000 PLUG,BLEEDERMT:J18A; 2000-05-01~2001-02-01 |
55151-60D10-000 |
from US $2.81 |
||
|
14
|
14
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug MT:J18A; 2000-05-01~2001-02-01 |
55156-66310-000 |
from US $1.98 |
||
|
15
|
15
01550-08253-000
Bolt, rear
MT:J18A; 2000-05-01~2001-02-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0825B-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-0825B-000 |
from US $1.06 |
||
|
15
|
15
01550-0825A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-0825A-000 |
from US $0.47 |
||
|
16
|
16
23830-64G00-000
PIPE,CLUTCH OIL
MT:J18A; 2000-05-01~2001-02-01 |
23830-64G00-000 |
— | ||
|
17
|
17
23850-60G40-000
HOSE,CLUTCH OIL
MT:J18A; 2000-05-01~2001-02-01 |
23850-60G40-000 |
— | ||
|
18
|
18
09161-10009-000 WASHER(10X15X1.5)Lock washer MT:J18A; 2000-05-01~2001-02-01 |
09161-10009-000 |
from US $1.06 |
||
|
19
|
19
09360-10026-000 Union boltMT:J18A; 2000-05-01~2001-02-01 |
09360-10026-000 |
from US $2.18 |
||
|
20
|
20
23871-70C01-000 BRACKET,CLUTCH OIL HOSEMT:J18A; 2000-05-01~2001-02-01 |
23871-70C01-000 |
US $6.18 |
||
|
21
|
21
02162-06123-000
Bolt (6x12)
MT:J18A; 2000-05-01~2001-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt MT:J18A; 2000-05-01~2001-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket MT:J18A; 2000-05-01~2001-02-01 |
02162-0612A-000 |
from US $0.79 |
||
|
22
|
22
09383-13001-000 E RINGMT:J18A; 2000-05-01~2001-02-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
22
|
22
09383-13003-000 E-RINGMT:J18A; 2000-05-01~2001-02-01 |
09383-13003-000 |
from US $1.46 |
||
|
23
|
23
51752-70B00-000 CLAMP,BK PIPEMT:J18A; 2000-05-01~2001-02-01 |
51752-70B00-000 |
US $1.60 |
||
