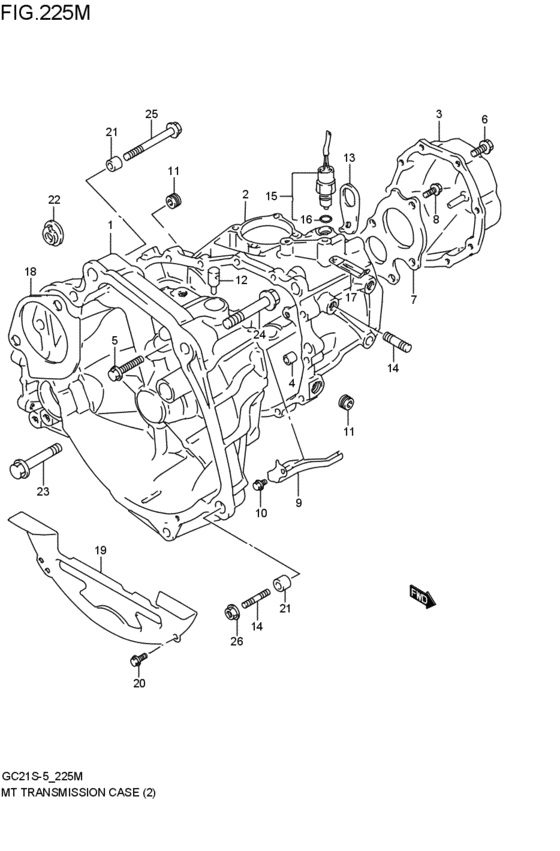

mt - transmission case (MT:J18A; 2000-05-01~2001-02-01) Diagram Suzuki CULTUS
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-70C03-000
CASE,TRANSAXLE,R
MT:J18A; 2000-05-01~2001-02-01 |
24711-70C03-000 |
— | ||
|
2
|
2
24721-70C04-000
ケース,トランスミッション,レフト
MT:J18A; 2000-05-01~2001-02-01 |
24721-70C04-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-63J21-000 CASE,TRANSAXLE,LMT:J18A; 2000-05-01~2001-02-01 |
24721-63J21-000 |
US $450.56 |
||
|
3
|
3
24730-70C02-000
Cover comp,transaxle side
MT:J18A; 2000-05-01~2001-02-01 |
24730-70C02-000 |
— | ||
| replacement | |||||
|
3
|
3
24730-70C03-000
COVER,TRANSAXLE SIDE
MT:J18A; 2000-05-01~2001-02-01 |
24730-70C03-000 |
— | ||
|
4
|
4
04211-13149-000 PINMT:J18A; 2000-05-01~2001-02-01 |
04211-13149-000 |
from US $1.44 |
||
|
5
|
5
01550-08403-000
Bolt
MT:J18A; 2000-05-01~2001-02-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0840B-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-0840B-000 |
from US $1.12 |
||
|
5
|
5
01550-0840A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-0840A-000 |
from US $1.12 |
||
|
6
|
6
09135-06022-000
Bolt
MT:J18A; 2000-05-01~2001-02-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
6
|
6
09135-06027-000 BOLT(6X12)MT:J18A; 2000-05-01~2001-02-01 |
09135-06027-000 |
from US $1.12 |
||
|
7
|
7
24725-70C01-000
プレート,レフトケース
MT:J18A; 2000-05-01~2001-02-01 |
24725-70C01-000 |
— | ||
| replacement | |||||
|
7
|
7
24725-59J20-000 PLATE,LEFT CASEMT:J18A; 2000-05-01~2001-02-01 |
24725-59J20-000 |
from US $15.55 |
||
|
8
|
8
09117-08050-000 BOLT(8X20)MT:J18A; 2000-05-01~2001-02-01 |
09117-08050-000 |
from US $0.50 |
||
|
9
|
9
24810-70C00-000 GUTTER,INPUT OILMT:J18A; 2000-05-01~2001-02-01 |
24810-70C00-000 |
from US $3.47 |
||
|
10
|
10
09103-06083-000
Bolt (6x12)
MT:J18A; 2000-05-01~2001-02-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-06285-000 BOLT(6X12)Bolt (6x12) MT:J18A; 2000-05-01~2001-02-01 |
09103-06285-000 |
from US $0.88 |
||
|
11
|
11
09246-16010-000 PLUGMT:J18A; 2000-05-01~2001-02-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
11
|
11
09246-16021-000 Plug,t/m Oil DrainMT:J18A; 2000-05-01~2001-02-01 |
09246-16021-000 |
from US $4.37 |
||
|
12
|
12
24821-09001-000 PLUG,T/M BREATHERPlug, breather MT:J18A; 2000-05-01~2001-02-01 |
24821-09001-000 |
from US $2.97 |
||
|
13
|
13
11851-62B00-000 HOOKMT:J18A; 2000-05-01~2001-02-01 |
11851-62B00-000 |
from US $1.87 |
||
|
14
|
14
09108-10138-000 BOLT,STUDMT:J18A; 2000-05-01~2001-02-01 |
09108-10138-000 |
from US $3.83 |
||
|
15
|
15
37610-70B11-000 SWITCH ASSY,BACK UP LAMPMT:J18A; 2000-05-01~2001-02-01 |
37610-70B11-000 |
from US $31.64 |
||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4)MT:J18A; 2000-05-01~2001-02-01 |
09280-11002-000 |
from US $0.97 |
||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
MT:J18A; 2000-05-01~2001-02-01 |
09404-06434-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-06036-000 Clamp(L:80)MT:J18A; 2000-05-01~2001-02-01 |
09404-06036-000 |
from US $1.82 |
||
|
18
|
18
11311-71C00-000 PLATE,STARTING MOTORMT:J18A; 2000-05-01~2001-02-01 |
11311-71C00-000 |
from US $2.27 |
||
|
19
|
19
11321-62G01-000
PLATE,CLUTCH HSG LOWER
MT:J18A; 2000-05-01~2001-02-01 |
11321-62G01-000 |
— | ||
|
20
|
20
02162-06103-000
Bolt
MT:J18A; 2000-05-01~2001-02-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0610A-000 SCREWMT:J18A; 2000-05-01~2001-02-01 |
02162-0610A-000 |
from US $0.64 |
||
|
21
|
21
09206-15001-000 PIN(12.4X15X17)MT:J18A; 2000-05-01~2001-02-01 |
09206-15001-000 |
from US $1.92 |
||
|
22
|
22
09250-26005-000 CAP(OD:36)MT:J18A; 2000-05-01~2001-02-01 |
09250-26005-000 |
from US $2.70 |
||
|
23
|
23
01550-12453-000
ボルト
MT:J18A; 2000-05-01~2001-02-01 |
01550-12453-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1245A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-1245A-000 |
US $1.44 |
||
|
24
|
24
01550-12553-000
BOLT
MT:J18A; 2000-05-01~2001-02-01 |
01550-12553-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1255A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-1255A-000 |
from US $1.67 |
||
|
25
|
25
01550-12753-000
BOLT
MT:J18A; 2000-05-01~2001-02-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1275A-000 BoltMT:J18A; 2000-05-01~2001-02-01 |
01550-1275A-000 |
from US $2.08 |
||
|
26
|
26
08316-10123-000
Nut
MT:J18A; 2000-05-01~2001-02-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1012A-000 NUTMT:J18A; 2000-05-01~2001-02-01 |
08316-1012A-000 |
from US $0.96 |
||
