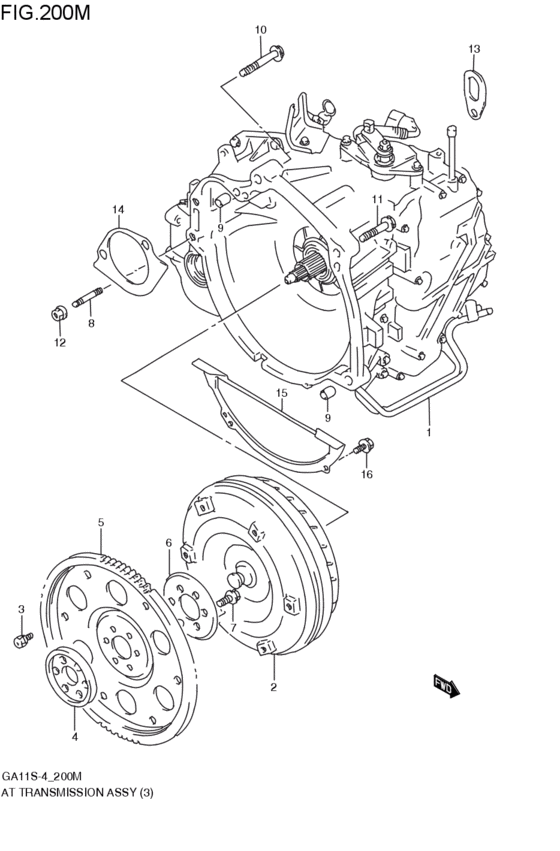

at - transmission assy (4AT:4WD; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- FX-4
- number of the gears
- 4AT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-65G70-000
トランスミッションアッシ,オートマチック
4AT:4WD; 1998-05-01~2000-02-01 |
20002-65G70-000 |
— | ||
|
1
|
1
20002-65G70-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT:4WD; 1998-05-01~2000-02-01 |
20002-65G70-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-65G71-111
トランスミッションアッシ,オートマチック
リビルト; 4AT:4WD; 1998-05-01~2000-02-01 |
20002-65G71-111 |
— | ||
|
2
|
2
22710-65G10-000
Converter comp,torque
4AT:4WD; 1998-05-01~2000-02-01 |
22710-65G10-000 |
— | ||
|
3
|
3
09103-08335-000
Bolt
4AT:4WD; 1998-05-01~2000-02-01 |
09103-08335-000 |
— | ||
| replacement | |||||
|
3
|
3
09103-08421-000 BOLT(8X9.5)4AT:4WD; 1998-05-01~2000-02-01 |
09103-08421-000 |
from US $1.85 |
||
|
4
|
4
22611-60G10-000
FLANGE,DRIVE PLATE FR
4AT:4WD; 1998-05-01~2000-02-01 |
22611-60G10-000 |
— | ||
|
5
|
5
22620-60G11-000 PLATE,TC DRIVE4AT:4WD; 1998-05-01~2000-02-01 |
22620-60G11-000 |
US $147.94 |
||
|
6
|
6
22631-61A00-000 FLANGE,T/C DRIVE PLATE RR4AT:4WD; 1998-05-01~2000-02-01 |
22631-61A00-000 |
US $23.20 |
||
|
7
|
7
09100-10275-000 BOLT(10X18.5)4AT:4WD; 1998-05-01~2000-02-01 |
09100-10275-000 |
US $1.44 |
||
|
8
|
8
09108-12004-000 BOLT,STUD4AT:4WD; 1998-05-01~2000-02-01 |
09108-12004-000 |
US $30.20 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17)4AT:4WD; 1998-05-01~2000-02-01 |
09206-15001-000 |
US $1.92 |
||
|
10
|
10
01550-12553-000
ボルト
4AT:4WD; 1998-05-01~2000-02-01 |
01550-12553-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1255A-000 Bolt4AT:4WD; 1998-05-01~2000-02-01 |
01550-1255A-000 |
US $21.70 |
||
|
11
|
11
01550-12753-000
ボルト
4AT:4WD; 1998-05-01~2000-02-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1275A-000 BOLT4AT:4WD; 1998-05-01~2000-02-01 |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
08316-10123-000
Nut
4AT:4WD; 1998-05-01~2000-02-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1012A-000 NUT4AT:4WD; 1998-05-01~2000-02-01 |
08316-1012A-000 |
from US $0.96 |
||
|
13
|
13
11851-62B00-000 HOOK4AT:4WD; 1998-05-01~2000-02-01 |
11851-62B00-000 |
US $5.02 |
||
|
14
|
14
11311-71C00-000 PLATE,STARTING MOTOR4AT:4WD; 1998-05-01~2000-02-01 |
11311-71C00-000 |
US $4.34 |
||
|
15
|
15
11321-71C01-000 PLATE,CLUTCH HSG LOWER4AT:4WD; 1998-05-01~2000-02-01 |
11321-71C01-000 |
US $8.13 |
||
|
16
|
16
02162-06103-000
Bolt
4AT:4WD; 1998-05-01~2000-02-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0610A-000 SCREW4AT:4WD; 1998-05-01~2000-02-01 |
02162-0610A-000 |
from US $0.64 |
||
