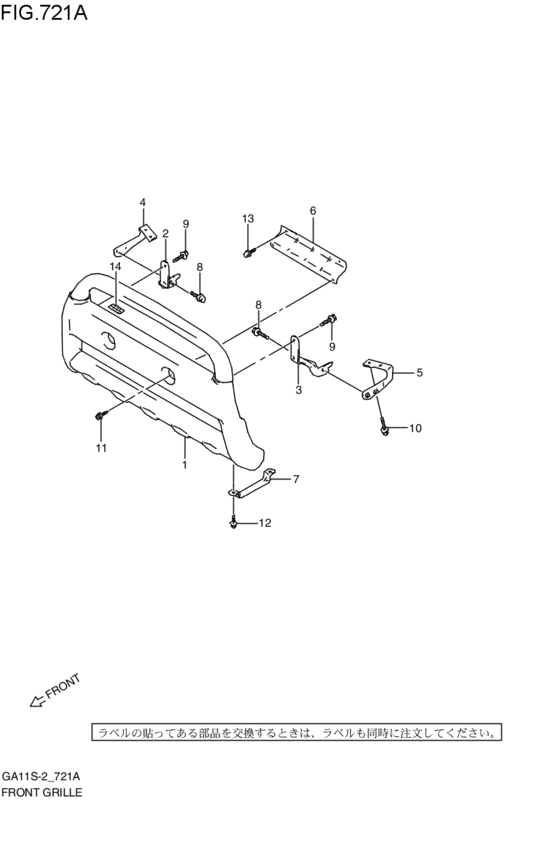

front grill / grill guard (RV; RV; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- RV
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71680-63G00-Z0E
BAR,GRILLE
グレ-; RV; 1996-02-01~1997-03-01 |
71680-63G00-Z0E |
— | ||
|
2
|
2
71691-63G00-000
ブラケット,グリルバーフロント,ライト
RV; 1996-02-01~1997-03-01 |
71691-63G00-000 |
— | ||
|
3
|
3
71692-63G00-000
ブラケット,グリルバーフロント,レフト
RV; 1996-02-01~1997-03-01 |
71692-63G00-000 |
— | ||
|
4
|
4
71693-63G00-000
ブラケット,グリルバーリヤ,ライト
RV; 1996-02-01~1997-03-01 |
71693-63G00-000 |
— | ||
|
5
|
5
71694-63G00-000
ブラケット,グリルバーリヤ,レフト
RV; 1996-02-01~1997-03-01 |
71694-63G00-000 |
— | ||
|
6
|
6
71695-63G00-000
ブラケット,グリルバー,センタ
RV; 1996-02-01~1997-03-01 |
71695-63G00-000 |
— | ||
|
7
|
7
71696-63G00-000
ブラケット,グリルバー,ロア
RV; 1996-02-01~1997-03-01 |
71696-63G00-000 |
— | ||
|
8
|
8
01550-08203-000
Bolt
RV; 1996-02-01~1997-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0820B-000 BoltRV; 1996-02-01~1997-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
01550-0820A-000 BOLTBolt, funnel bracket RV; 1996-02-01~1997-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
9
|
9
01550-08203-000
Bolt
RV; 1996-02-01~1997-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0820B-000 BoltRV; 1996-02-01~1997-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket RV; 1996-02-01~1997-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
01550-08203-000
Bolt
RV; 1996-02-01~1997-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0820B-000 BoltRV; 1996-02-01~1997-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket RV; 1996-02-01~1997-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
02162-06163-000
Screw
RV; 1996-02-01~1997-03-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust RV; 1996-02-01~1997-03-01 |
02162-0616B-000 |
from US $0.80 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
RV; 1996-02-01~1997-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt RV; 1996-02-01~1997-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket RV; 1996-02-01~1997-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
RV; 1996-02-01~1997-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt RV; 1996-02-01~1997-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket RV; 1996-02-01~1997-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
71697-63G00-000
ラベル,グリルバーコーション
RV; 1996-02-01~1997-03-01 |
71697-63G00-000 |
— | ||
