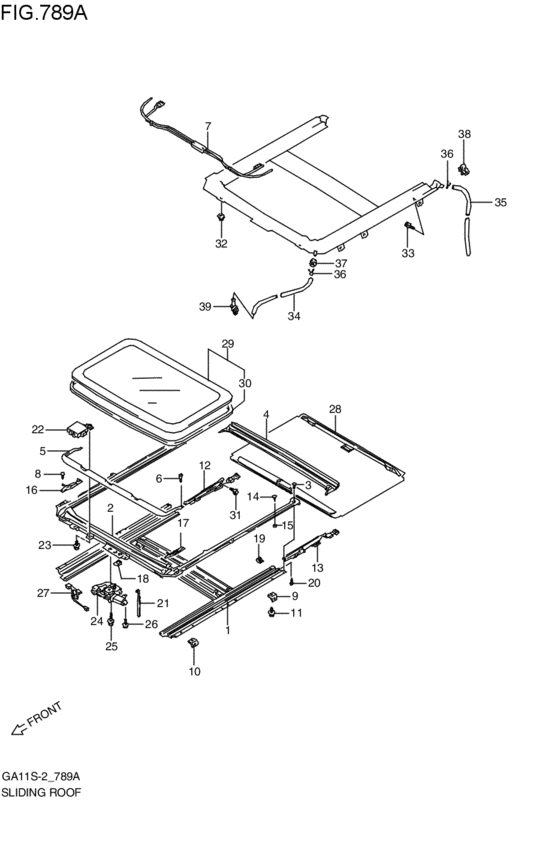

rear sliding roof (5ドア:RV; 5DR:RV; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- RV
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78711-63G00-000
RAIL,SLIDING ROOF
5DR:RV; 1996-02-01~1997-03-01 |
78711-63G00-000 |
— | ||
|
2
|
2
78712-63G00-000
Frame,sliding roof housing
5DR:RV; 1996-02-01~1997-03-01 |
78712-63G00-000 |
— | ||
|
3
|
3
02142-04103-000
Screw 4x10
5DR:RV; 1996-02-01~1997-03-01 |
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREW5DR:RV; 1996-02-01~1997-03-01 |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
78713-63G00-000
CHANNEL,ROOF DRIP RR
5DR:RV; 1996-02-01~1997-03-01 |
78713-63G00-000 |
— | ||
|
5
|
5
78714-63G00-000
DEFLECTOR,SLIDING ROOF
5DR:RV; 1996-02-01~1997-03-01 |
78714-63G00-000 |
— | ||
|
6
|
6
78719-63G00-000
SCREW,DEFLECTOR
5DR:RV; 1996-02-01~1997-03-01 |
78719-63G00-000 |
— | ||
|
7
|
7
78715-63G00-000
GUIDE,SLIDING ROOF CABLE
5DR:RV; 1996-02-01~1997-03-01 |
78715-63G00-000 |
— | ||
|
8
|
8
02112-04103-000
Screw 4x10
5DR:RV; 1996-02-01~1997-03-01 |
02112-04103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0410A-000 SCREW5DR:RV; 1996-02-01~1997-03-01 |
02112-0410A-000 |
from US $2.04 |
||
|
9
|
9
78716-63G00-000
BRACKET,SLIDING ROOF MTG,RR
5DR:RV; 1996-02-01~1997-03-01 |
78716-63G00-000 |
— | ||
|
10
|
10
78718-63G00-000
ブラケット,スライディングルーフマウンチングフロント
5DR:RV; 1996-02-01~1997-03-01 |
78718-63G00-000 |
— | ||
|
11
|
11
09118-06002-000 BOLT(6X12)5DR:RV; 1996-02-01~1997-03-01 |
09118-06002-000 |
US $11.80 |
||
|
12
|
12
78717-63G00-000
DRIVE,SLIDING ROOF CABLE,R
5DR:RV; 1996-02-01~1996-05-01 |
78717-63G00-000 |
— | ||
|
12
|
12
78717-63G01-000
Drive,sliding roof cable,r
5DR:RV; 1996-05-01~1997-03-01 |
78717-63G01-000 |
— | ||
|
13
|
13
78767-63G00-000
DRIVE,SLIDING ROOF CABLE,L
5DR:RV; 1996-02-01~1996-05-01 |
78767-63G00-000 |
— | ||
|
13
|
13
78767-63G01-000
DRIVE,SLIDING ROOF CABLE,L
5DR:RV; 1996-05-01~1997-03-01 |
78767-63G01-000 |
— | ||
|
14
|
14
78721-63G00-000
SCREW,SLIDING ROOF STOP
5DR:RV; 1996-02-01~1997-03-01 |
78721-63G00-000 |
— | ||
|
15
|
15
78722-63G00-000
BUSH,SLIDING ROOF STOP
5DR:RV; 1996-02-01~1997-03-01 |
78722-63G00-000 |
— | ||
|
16
|
16
78723-63G00-000
LINK,DEFLECTOR,R
5DR:RV; 1996-02-01~1997-03-01 |
78723-63G00-000 |
— | ||
|
17
|
17
78773-63G00-000
LINK,DEFLECTOR,L
5DR:RV; 1996-02-01~1997-03-01 |
78773-63G00-000 |
— | ||
|
18
|
18
78725-63G00-000
RETAINER,GEAR ASSY
5DR:RV; 1996-02-01~1997-03-01 |
78725-63G00-000 |
— | ||
|
19
|
19
78726-63G00-000
STOPPER,SUN SHADE
5DR:RV; 1996-02-01~1997-03-01 |
78726-63G00-000 |
— | ||
|
20
|
20
03111-04123-000
Screw
5DR:RV; 1996-02-01~1997-03-01 |
03111-04123-000 |
— | ||
| replacement | |||||
|
20
|
20
03111-0412A-000 SCREW5DR:RV; 1996-02-01~1997-03-01 |
03111-0412A-000 |
from US $3.04 |
||
|
21
|
21
09407-14407-000 CLAMP(L:145)Band 5DR:RV; 1996-02-01~1997-03-01 |
09407-14407-000 |
from US $2.08 |
||
|
22
|
22
78830-63G00-000
RELAY,SLIDING ROOF CONTROL
5DR:RV; 1996-02-01~1997-03-01 |
78830-63G00-000 |
— | ||
|
23
|
23
09118-06002-000 BOLT(6X12)5DR:RV; 1996-02-01~1997-03-01 |
09118-06002-000 |
US $11.80 |
||
|
24
|
24
78840-63G00-000
GEAR ASSY,SLIDING ROOF DRIVE
5DR:RV; 1996-02-01~1997-03-01 |
78840-63G00-000 |
— | ||
|
25
|
25
09118-06008-000 BOLT(6X30)5DR:RV; 1996-02-01~1997-03-01 |
09118-06008-000 |
US $1.12 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
5DR:RV; 1996-02-01~1997-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt 5DR:RV; 1996-02-01~1997-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket 5DR:RV; 1996-02-01~1997-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
78851-63G00-000
WIRE,SLIDING ROOF
5DR:RV; 1996-02-01~1997-03-01 |
78851-63G00-000 |
— | ||
|
28
|
28
78860-63G00-5NE
SHADE,SLIDING ROOF
グレー; 5DR:RV; 1996-02-01~1997-03-01 |
78860-63G00-5NE |
— | ||
|
29
|
29
78870-63G00-000
GLASS,SLIDING ROOF
5DR:RV; 1996-02-01~1997-03-01 |
78870-63G00-000 |
— | ||
|
30
|
30
78872-63G00-000
WEATHERSTRIP,SL ROOF
5DR:RV; 1996-02-01~1997-03-01 |
78872-63G00-000 |
— | ||
|
31
|
31
78881-63G00-000
SCREW,GLASS
5DR:RV; 1996-02-01~1997-03-01 |
78881-63G00-000 |
— | ||
|
32
|
32
09159-06076-000 NUT5DR:RV; 1996-02-01~1997-03-01 |
09159-06076-000 |
from US $1.28 |
||
|
33
|
33
02162-06123-000
Bolt (6x12)
5DR:RV; 1996-02-01~1997-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
02162-0612B-000 SCREWBolt 5DR:RV; 1996-02-01~1997-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket 5DR:RV; 1996-02-01~1997-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
34
|
34
78831-63G00-000
ホース,ドレーン
5DR:RV; 1996-02-01~1997-03-01 |
78831-63G00-000 |
— | ||
| replacement | |||||
|
34
|
34
78832-79AC0-000 HOSE5DR:RV; 1996-02-01~1997-03-01 |
78832-79AC0-000 |
US $64.03 |
||
|
35
|
35
78831-63G00-000
ホース,ドレーン
L:1400>1220; 5DR:RV; 1996-02-01~1997-03-01 |
78831-63G00-000 |
— | ||
| replacement | |||||
|
35
|
35
78832-79AC0-000 HOSEL:1400>1220; 5DR:RV; 1996-02-01~1997-03-01 |
78832-79AC0-000 |
US $64.03 |
||
|
36
|
36
09401-13409-000 CLIPClamp CHKK; 5DR:RV; 1996-02-01~1997-03-01 |
09401-13409-000 |
from US $3.35 |
||
|
37
|
37
74812-60B00-000 GROMMET,HTR5DR:RV; 1996-02-01~1997-03-01 |
74812-60B00-000 |
US $4.31 |
||
|
38
|
38
09403-15403-000 CLAMP5DR:RV; 1996-02-01~1997-03-01 |
09403-15403-000 |
US $11 |
||
|
39
|
39
78833-63G00-000
CONNECTOR,DRAIN HOSE
5DR:RV; 1996-02-01~1997-03-01 |
78833-63G00-000 |
— | ||
