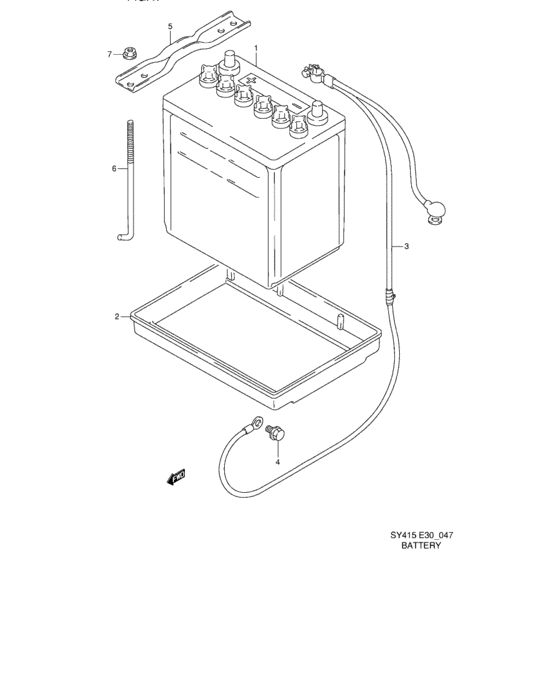

Battery (BATTERY) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-71320-000
Battery assy (38b20l,12v,28ah/
|
33610-71320-000 |
— | ||
|
2
|
2
33660-60G00-000 TRAY,BATTERY |
33660-60G00-000 |
US $32 |
||
|
3
|
3
33850-60G00-000
CABLE,BTRY GND
|
33850-60G00-000 |
— | ||
|
4
|
4
01550-08163-000
Bolt, holder
MT |
01550-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0816B-000 BOLTMT |
01550-0816B-000 |
from US $0.91 |
||
|
4
|
4
01550-0816A-000 BOLTBolt, rear MT |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
72511-60A03-000 BAND,BATTERY |
72511-60A03-000 |
from US $12 |
||
|
6
|
6
72512-82011-000 BOLT,BATTERY |
72512-82011-000 |
US $3.04 |
||
|
7
|
7
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
