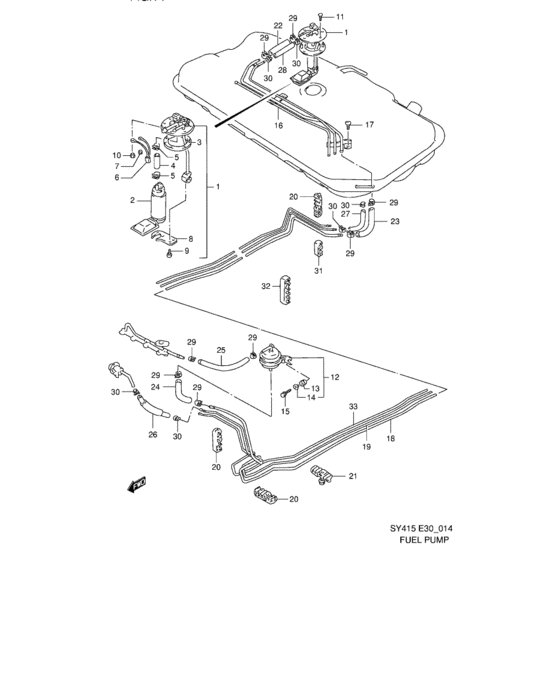

Fuel Pump (FUEL PUMP) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-60G21-000 PUMP ASSY,FUEL |
15100-60G21-000 |
US $693.44 |
||
|
2
|
2
15110-60GT0-000 PUMP SET,FUEL |
15110-60GT0-000 |
US $619.52 |
||
|
3
|
3
15111-56F00-000 GASKET,FUEL PUMP |
15111-56F00-000 |
US $85.33 |
||
|
4
|
4
15143-60G00-000
HOSE
|
15143-60G00-000 |
— | ||
|
5
|
5
15144-60G00-000
CLIP
|
15144-60G00-000 |
— | ||
|
6
|
6
15141-60G00-000 WIRE |
15141-60G00-000 |
US $13.51 |
||
|
7
|
7
15148-82400-000
NUT,LEAD WIRE
|
15148-82400-000 |
— | ||
|
8
|
8
15142-60G00-000 BRACKET |
15142-60G00-000 |
US $3.86 |
||
|
9
|
9
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
10
|
10
15147-61B00-000
NUT
|
15147-61B00-000 |
— | ||
|
11
|
11
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
12
|
12
15410-62G00-000 FILTER ASSY,FUEL |
15410-62G00-000 |
US $62.32 |
||
|
13
|
13
09320-09009-000 CUSHION |
09320-09009-000 |
from US $1.67 |
||
|
14
|
14
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
15
|
15
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
16
|
16
15820-60G00-000 PIPE,FUEL TANK SIDE |
15820-60G00-000 |
US $63.66 |
||
|
17
|
17
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
18
|
18
15811-60G00-000
PIPE,FUEL MAIN
|
15811-60G00-000 |
— | ||
|
19
|
19
15861-60G01-000
PIPE,FUEL RTN
|
15861-60G01-000 |
— | ||
|
20
|
20
15882-65G00-000 CLAMP,FUEL PIPE DASH |
15882-65G00-000 |
US $2.94 |
||
|
21
|
21
15881-60G00-000 CLAMP,FUEL PIPE FL |
15881-60G00-000 |
US $4.27 |
||
|
22
|
22
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->75 |
09356-75147-600 |
US $51.68 |
||
|
23
|
23
15817-60G00-000 HOSE,FUEL TANK TO FLOOR |
15817-60G00-000 |
US $34.59 |
||
|
24
|
24
15816-60G01-000 HOSE,FUEL |
15816-60G01-000 |
US $40.48 |
||
|
25
|
25
15815-60G00-000
ホース,フューエルメイン(エンジンルーム)
|
15815-60G00-000 |
— | ||
| replacement | |||||
|
25
|
25
15815-62G00-000 HOSE,FUEL MAIN ENG ROOM |
15815-62G00-000 |
US $28.70 |
||
|
26
|
26
15856-64GV0-000 HOSE,FUEL PIPE TO PUMP |
15856-64GV0-000 |
US $39.38 |
||
|
27
|
27
15818-60G00-000 HOSE,FUEL RTN FLOOR TO TANK |
15818-60G00-000 |
US $43.06 |
||
|
28
|
28
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->100 |
09356-55117-600 |
US $69.60 |
||
|
29
|
29
09401-13415-000
クランプ
|
09401-13415-000 |
— | ||
| replacement | |||||
|
29
|
29
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
30
|
30
09401-11411-000 CLIP |
09401-11411-000 |
from US $6.38 |
||
|
31
|
31
15888-63E00-000 RETAINER,3 |
15888-63E00-000 |
US $2.65 |
||
|
32
|
32
15887-60E00-000 RETAINER,5 |
15887-60E00-000 |
US $3.28 |
||
|
33
|
33
89482-60G00-000 PIPE,EVAPORATOR MAIN |
89482-60G00-000 |
US $41.95 |
||
