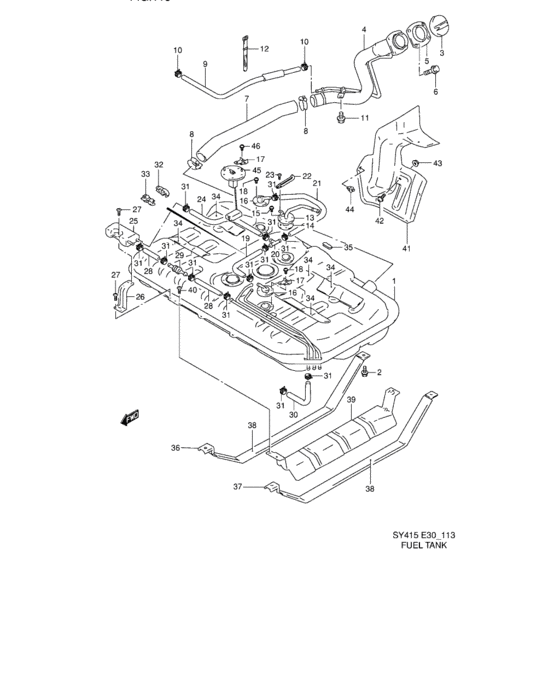

Fuel tank (FUEL TANK) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-60G10-000
タンクアッシ,フューエル
|
89101-60G10-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-60GB0-000 TANK ASSY,FUEL |
89101-60GB0-000 |
US $503.36 |
||
|
2
|
2
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
3
|
3
89260-70G01-000
Cap assy, fuel filler
|
89260-70G01-000 |
— | ||
| replacement | |||||
|
3
|
3
89260-73H00-000 CAP ASSY,FUEL FILLER |
89260-73H00-000 |
from US $19.82 |
||
|
4
|
4
89201-60G30-000
ネックアッシ,フューエルフィラ
|
89201-60G30-000 |
— | ||
| replacement | |||||
|
4
|
4
89201-60G31-000 NECK ASSY,FUEL FILLER |
89201-60G31-000 |
US $129.54 |
||
|
5
|
5
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
6
|
6
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
89241-60G10-000
ホース,フューエルタンクフィラ
|
89241-60G10-000 |
— | ||
| replacement | |||||
|
7
|
7
89241-60G20-000 HOSE,FUEL TANK FILLER |
89241-60G20-000 |
US $99.36 |
||
|
8
|
8
09402-57511-000 CLAMP |
09402-57511-000 |
from US $6.24 |
||
|
9
|
9
89291-60G00-000
ホース,フューエルタンクブリーザ
|
89291-60G00-000 |
— | ||
| replacements | |||||
|
9
|
9
09401-16407-000 CLIP |
09401-16407-000 |
from US $1.60 |
||
|
9
|
9
89291-60G30-000 HOSE,FUEL TANK BREATHER |
89291-60G30-000 |
US $19.50 |
||
|
9
|
9
09401-16406-000
Clip
|
09401-16406-000 |
— | ||
|
10
|
10
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
11
|
11
09116-06173-000
Bolt
|
09116-06173-000 |
— | ||
| replacement | |||||
|
11
|
11
09116-06205-000 BOLT(6X16) |
09116-06205-000 |
from US $0.96 |
||
|
12
|
12
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
13
|
13
89250-60G50-000 PIPE,FUEL BREATHER |
89250-60G50-000 |
US $30.73 |
||
|
14
|
14
89255-60G00-000 GASKET,BREATHER PIPE |
89255-60G00-000 |
US $3.97 |
||
|
15
|
15
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
16
|
16
89485-50G00-000 VALVE,FUEL CUT |
89485-50G00-000 |
US $51.15 |
||
|
17
|
17
89441-60G00-000
BRACKET,FUEL PIPE
|
89441-60G00-000 |
— | ||
|
18
|
18
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
19
|
19
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->240 |
09355-54115-600 |
from US $7.20 |
||
|
20
|
20
09367-06002-000 JOINT,3 WAY3 way |
09367-06002-000 |
from US $1.67 |
||
|
21
|
21
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->460 |
09355-54115-600 |
from US $7.20 |
||
|
22
|
22
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
22
|
22
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
23
|
23
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
24
|
24
09355-54116-600 HOSE(5.4X11.4X600)Hose (l:600->30) L:600->250 |
09355-54116-600 |
from US $8.83 |
||
|
25
|
25
89411-60G00-000 SEPARATOR,FUEL AND VAPOR |
89411-60G00-000 |
US $21.60 |
||
|
26
|
26
89431-60G00-000
BRACKET,SEPARATOR
|
89431-60G00-000 |
— | ||
|
27
|
27
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
27
|
27
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
28
|
28
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->80 |
09355-54115-600 |
from US $7.20 |
||
|
29
|
29
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
30
|
30
09355-54116-600 HOSE(5.4X11.4X600)Hose (l:600->30) L:600->110 |
09355-54116-600 |
from US $8.83 |
||
|
31
|
31
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
32
|
32
09408-00111-000 CLAMP |
09408-00111-000 |
US $2.08 |
||
|
33
|
33
09408-00138-000 CLAMP |
09408-00138-000 |
US $27.20 |
||
|
34
|
34
89381-60G00-000 PAD,FUEL TANK |
89381-60G00-000 |
US $7.25 |
||
|
35
|
35
89445-60G00-000 PROTECTOR,TANK FLANGE |
89445-60G00-000 |
US $6.48 |
||
|
36
|
36
89360-60G00-000
BELT,TANK FIXER,R
|
89360-60G00-000 |
— | ||
|
37
|
37
89370-60G00-000 BELT,TANK FIXER,L |
89370-60G00-000 |
US $32.75 |
||
|
38
|
38
89385-60G00-000 PAD,FUEL TANK BELT |
89385-60G00-000 |
US $15.36 |
||
|
39
|
39
89311-60G00-000
PROTECTOR,FUEL TANK
|
89311-60G00-000 |
— | ||
|
40
|
40
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
40
|
40
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
41
|
41
89321-60G00-000
PROTECTOR,FILLER NECK
|
89321-60G00-000 |
— | ||
|
42
|
42
09136-05034-000 SCREW(5X16) |
09136-05034-000 |
from US $1.28 |
||
|
43
|
43
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
44
|
44
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
45
|
45
34810-60G01-000
GAUGE ASSY,FUEL LEVEL
|
34810-60G01-000 |
— | ||
|
46
|
46
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
