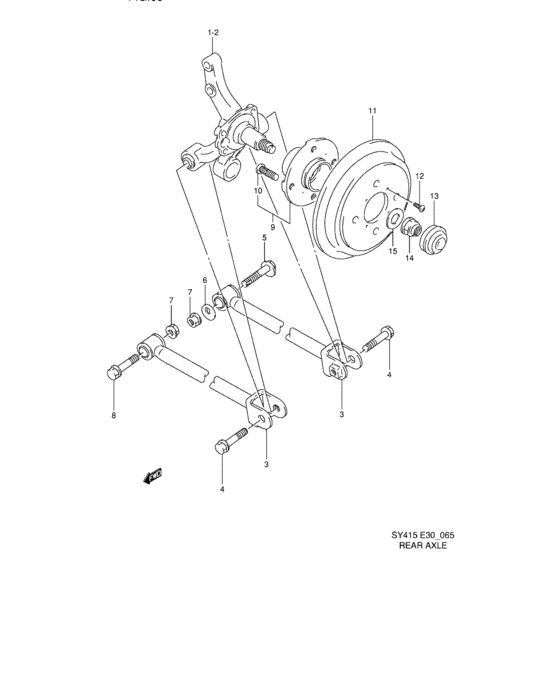

Rear axle (REAR AXLE) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-60821-000
ナックルセット,リヤサスペンション,ライト
|
46110-60821-000 |
— | ||
| replacements | |||||
|
1
|
1
46110-60822-000 KNUCKLE SET,RR SPNSN,R |
46110-60822-000 |
US $637.12 |
||
|
1
|
1
09159-18026-000 NUT |
09159-18026-000 |
from US $3.33 |
||
|
1
|
1
09159-18017-000
Nut
|
09159-18017-000 |
— | ||
|
2
|
2
46150-60821-000
ナックルセット,リヤサスペンション,レフト
|
46150-60821-000 |
— | ||
| replacements | |||||
|
2
|
2
46150-60822-000 KNUCKLE SET,RR SPNSN,L |
46150-60822-000 |
US $364.32 |
||
|
2
|
2
09159-18026-000 NUT |
09159-18026-000 |
from US $3.33 |
||
|
2
|
2
09159-18017-000
Nut
|
09159-18017-000 |
— | ||
|
3
|
3
46300-60G21-000 ROD ASSY,REAR CONTROL |
46300-60G21-000 |
US $113.60 |
||
|
4
|
4
46333-60G00-000
ボルト,リヤトレーリングロッド,リヤ
|
46333-60G00-000 |
— | ||
| replacement | |||||
|
4
|
4
09103-12065-000 BOLT(12X62) |
09103-12065-000 |
from US $2.40 |
||
|
5
|
5
46330-60E00-000
ボルト,リヤコントロールロッド
|
46330-60E00-000 |
— | ||
| replacement | |||||
|
5
|
5
46330-60E01-000 BOLT,RR CONTROL ROD |
46330-60E01-000 |
from US $8.16 |
||
|
6
|
6
46333-60E00-000 WASHER,CONTROL ROD INR |
46333-60E00-000 |
from US $1.92 |
||
|
7
|
7
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
8
|
8
09100-12057-000 BOLT(12X61) |
09100-12057-000 |
from US $2.72 |
||
|
9
|
9
43402-60G11-000
ハブアッシ,リヤホイール
N/ABS |
43402-60G11-000 |
— | ||
| replacement | |||||
|
9
|
9
43402-54G12-000 HUB ASSY,RR WHLN/ABS |
43402-54G12-000 |
US $250.24 |
||
|
9
|
9
43402-60G21-000
ハブアッシ,リヤホイール
W/ABS |
43402-60G21-000 |
— | ||
| replacement | |||||
|
9
|
9
43402-54G22-000 HUB ASSY,RR WHLW/ABS |
43402-54G22-000 |
US $246.56 |
||
|
10
|
10
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
11
|
11
43511-60G10-000 DRUM,RR BRAKE |
43511-60G10-000 |
US $135.42 |
||
|
12
|
12
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
12
|
12
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
12
|
12
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
13
|
13
43241-60G01-000
キャップ,スピンドル
|
43241-60G01-000 |
— | ||
| replacement | |||||
|
13
|
13
43241-60G03-000 CAP,SPINDLE |
43241-60G03-000 |
US $7.80 |
||
|
14
|
14
09159-18013-000 NUT |
09159-18013-000 |
US $157.90 |
||
|
15
|
15
09160-18025-000 WASHER(18X38X4) |
09160-18025-000 |
US $19.10 |
||
