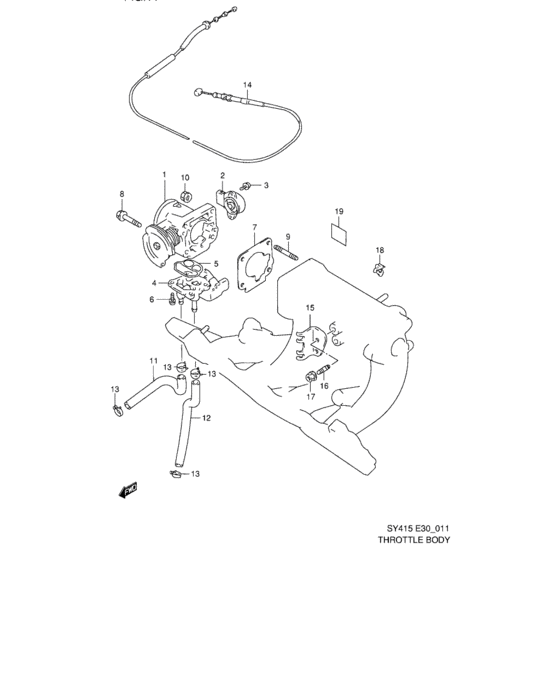

Throttle body (THROTTLE BODY) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-64G00-000
ボディアッシ,スロットル
|
13400-64G00-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-64G01-000
BODY ASSY,THROTTLE
|
13400-64G01-000 |
— | ||
|
2
|
2
13420-52G00-000 SENSOR,THROTTLE POSITION |
13420-52G00-000 |
US $125.60 |
||
|
3
|
3
02112-74123-000
Screw
|
02112-74123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7412A-000 SCREW |
02112-7412A-000 |
from US $0.96 |
||
|
4
|
4
18137-64G00-000
バルブ,アイドルスピードコントロール
|
18137-64G00-000 |
— | ||
| replacement | |||||
|
4
|
4
18137-64G01-000 VALVE,ISC |
18137-64G01-000 |
US $397.44 |
||
|
5
|
5
14139-70G30-000 GASKET,ISC VALVE |
14139-70G30-000 |
from US $2.43 |
||
|
6
|
6
02112-35163-000
Screw
|
02112-35163-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-3516A-000 SCREW |
02112-3516A-000 |
from US $0.76 |
||
|
7
|
7
13421-60G00-000 GASKET,THROTTLE BODYGasket, throttle body |
13421-60G00-000 |
from US $2.40 |
||
|
8
|
8
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.51 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
01421-08503-000
Bolt, stud
|
01421-08503-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0850A-000 BOLT,STUD |
01421-0850A-000 |
from US $4.18 |
||
|
10
|
10
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
13491-64G01-000 HOSE,WATER THROT BODY INLET |
13491-64G01-000 |
US $9.72 |
||
|
12
|
12
13493-64G01-000 HOSE,WATER THROT BODY OUTLET |
13493-64G01-000 |
US $11.59 |
||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
14
|
14
15910-62G00-000 CABLE ASSY,ACCEL |
15910-62G00-000 |
US $52.62 |
||
|
15
|
15
15919-64G00-000
GUIDE,ACCEL CABLE
|
15919-64G00-000 |
— | ||
|
16
|
16
01421-06163-000
Bolt
|
01421-06163-000 |
— | ||
| replacement | |||||
|
16
|
16
01421-0616A-000 BOLT,STUD |
01421-0616A-000 |
from US $1.07 |
||
|
17
|
17
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
18
|
18
09403-04307-000
CLAMP
|
09403-04307-000 |
— | ||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
