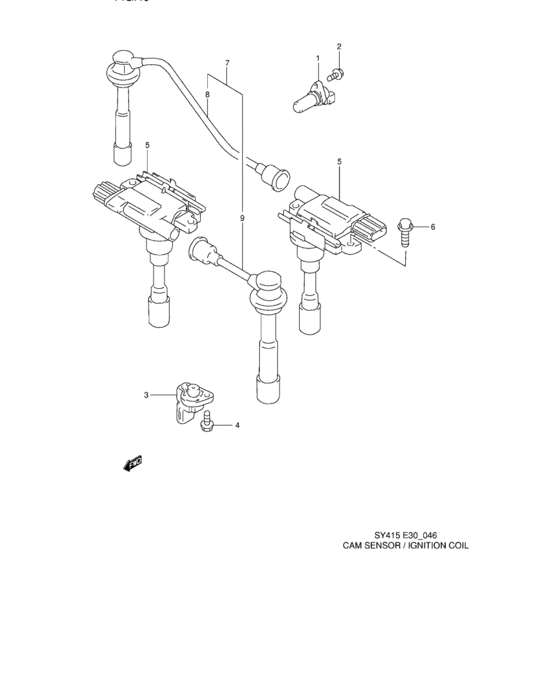

Cam sensor and ignition coil (CAM SENSOR AND IGNITION COIL) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33220-50G01-000
センサアッシ,カムポジション
|
33220-50G01-000 |
— | ||
| replacement | |||||
|
1
|
1
33220-50G02-000 SENSOR ASSY,CAM POSITION |
33220-50G02-000 |
from US $89.10 |
||
|
2
|
2
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
2
|
2
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
3
|
3
33220-70E00-000 SENSOR ASSY,POSITION |
33220-70E00-000 |
from US $69.73 |
||
|
4
|
4
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
33400-65G00-000
Coil assy, ignition
|
33400-65G00-000 |
— | ||
| replacement | |||||
|
5
|
5
33400-65G02-000 COIL ASSY,IGNITION DENSO |
33400-65G02-000 |
from US $173.68 |
||
|
6
|
6
01580-06203-000
Bolt
|
01580-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01580-0620B-000 BOLT |
01580-0620B-000 |
from US $4.49 |
||
|
7
|
7
33705-66D00-000 CORD SET,HIGH TENSION |
33705-66D00-000 |
from US $45.65 |
||
|
8
|
8
33730-66D00-000 CORD,HIGH TENSION NO.2L:245 |
33730-66D00-000 |
US $30.18 |
||
|
9
|
9
33740-66D00-000 CORD,HT NO.3L:80 |
33740-66D00-000 |
US $29.07 |
||
