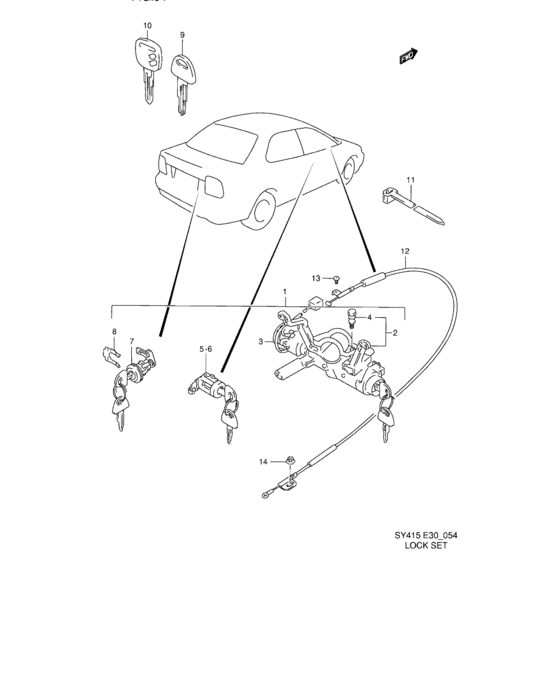

Lock set (LOCK SET) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37105-65830-000 LOCK SETAT |
37105-65830-000 |
US $366.16 |
||
|
2
|
2
37103-65840-000 LOCK ASSY,STEERINGAT |
37103-65840-000 |
US $257.60 |
||
|
3
|
3
37111-60G00-000 SWITCH ASSY |
37111-60G00-000 |
US $80.96 |
||
|
4
|
4
37152-60B00-000 BOLT,STEERING LOCK |
37152-60B00-000 |
US $4.27 |
||
|
5
|
5
82200-61840-000 CYLINDER,FR DR LOCK,R |
82200-61840-000 |
US $57.76 |
||
|
6
|
6
82200-61870-000 CYLINDER,FR DR LOCK,L |
82200-61870-000 |
US $49.68 |
||
|
7
|
7
82500-71820-000 CYLINDER,TRUNK LID LOCK |
82500-71820-000 |
US $53.36 |
||
|
8
|
8
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK |
89345-60B00-000 |
US $2.13 |
||
|
9
|
9
37145-60B10-000 KEY,BLANKOPT |
37145-60B10-000 |
US $36.80 |
||
|
10
|
10
37145-63G00-000 KEY,BLANK TRANSMITTER,KEY LESSOPT |
37145-63G00-000 |
US $141.68 |
||
|
11
|
11
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
12
|
12
28551-60G11-000
CABLE,KEY INTER LOCK
AT |
28551-60G11-000 |
— | ||
|
13
|
13
09125-05113-000 SCREW(5X12)AT |
09125-05113-000 |
US $14 |
||
|
14
|
14
08316-10083-000
Nut
AT |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUTAT |
08316-1008B-000 |
from US $0.76 |
||
