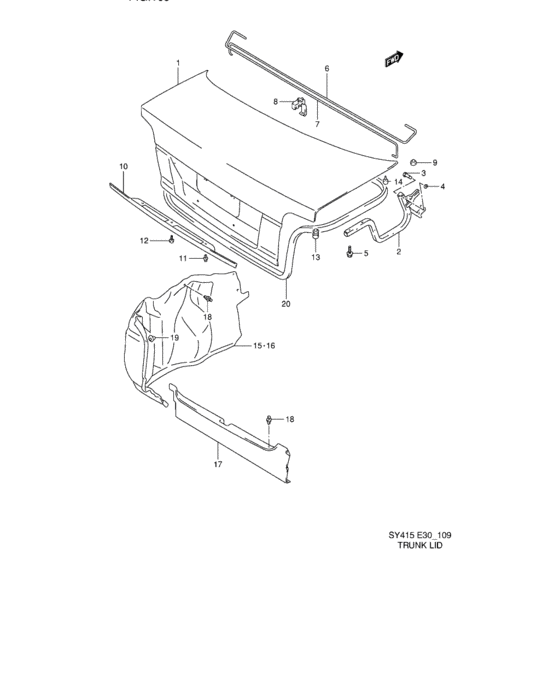

Trunk lid (TRUNK LID) Diagram Suzuki CULTUS
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65700-60G11-000
パネル,トランクリッド
|
65700-60G11-000 |
— | ||
| replacements | |||||
|
1
|
1
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
1
|
1
65700-60G14-000 PANEL,TRUNK LID |
65700-60G14-000 |
US $411.84 |
||
|
2
|
2
65810-60G10-000
HINGE,TRUNK LID
|
65810-60G10-000 |
— | ||
|
3
|
3
09208-06005-000 PIN |
09208-06005-000 |
from US $4.64 |
||
|
4
|
4
08332-11043-000
E ring
|
08332-11043-000 |
— | ||
| replacements | |||||
|
4
|
4
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
4
|
4
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
5
|
5
09116-06171-000 BOLT(6X30)Bolt (6x30) |
09116-06171-000 |
from US $4.22 |
||
|
6
|
6
65831-60G00-000
バー,トランクリッドヒンジトーション,ライト
|
65831-60G00-000 |
— | ||
| replacement | |||||
|
6
|
6
65831-60G01-000
Bar,trunk lid hinge torsion,r
|
65831-60G01-000 |
— | ||
|
7
|
7
65832-60G00-000
バー,トランクリッドヒンジトーション,レフト
|
65832-60G00-000 |
— | ||
| replacement | |||||
|
7
|
7
65832-60G01-000
BAR,TRUNK LID HINGE TORSION,L
|
65832-60G01-000 |
— | ||
|
8
|
8
76691-79E00-000 HOLDER,TRUNK OPENER SPR |
76691-79E00-000 |
US $1.60 |
||
|
9
|
9
09321-05021-000 CUSHION |
09321-05021-000 |
US $1.60 |
||
|
10
|
10
72810-60G00-5PK
ガーニッシュ,トランクリッド(ブラック)
|
72810-60G00-5PK |
— | ||
| replacement | |||||
|
10
|
10
72810-60G02-5PK GARNISH,TRUNK LID |
72810-60G02-5PK |
US $50.05 |
||
|
11
|
11
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
12
|
12
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
13
|
13
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
US $1.92 |
||
|
14
|
14
77192-50E00-000 CUSHION |
77192-50E00-000 |
US $2.56 |
||
|
15
|
15
76630-60G00-U72
TRIM,TRUNK ROOM SIDE,R
|
76630-60G00-U72 |
— | ||
|
16
|
16
76640-60G00-U72
TRIM,TRUNK ROOM SIDE,L
|
76640-60G00-U72 |
— | ||
|
17
|
17
76661-60G00-U72 TRIM,TRUNK ROOM REAR |
76661-60G00-U72 |
US $61.09 |
||
|
18
|
18
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
US $1.76 |
||
|
19
|
19
36990-60B60-5PK NUT,TRNK ROOM SIDE TRIM |
36990-60B60-5PK |
US $1.60 |
||
|
20
|
20
84681-70C11-000
WEATHERSTRIP,TRUNK LID OPNG
|
84681-70C11-000 |
— | ||
